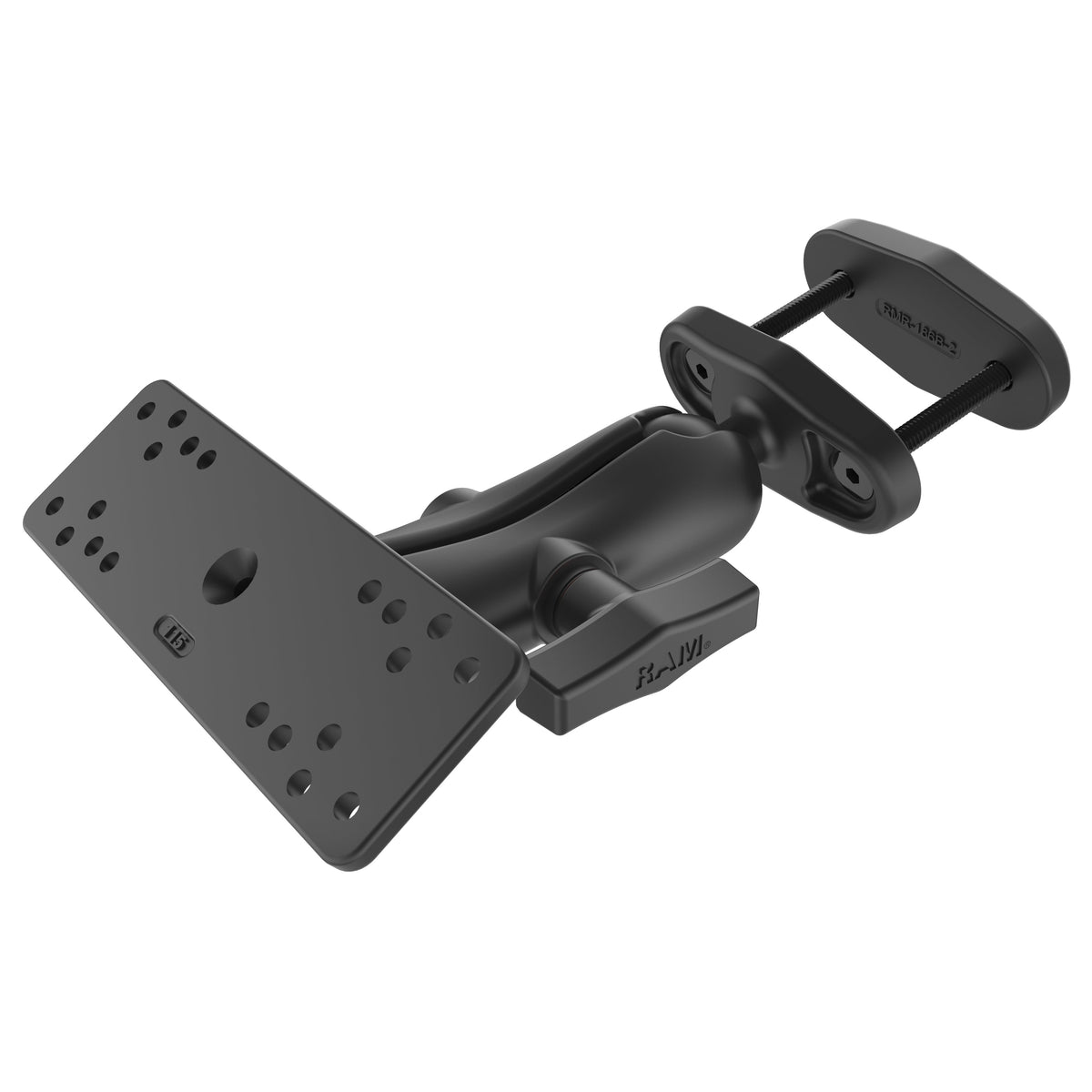

RAM Mounts Universal Marine Electronics Mount for Square Posts up to 51 mm, C-Size (RAM-111-247U-2)

RAM Mounts Universal Marine Electronics Mount for Square Posts up to 51 mm, C-Size (RAM-111-247U-2) is built for forklifts and other vehicles with square cab posts. The clamp base wraps around posts up to 51 mm wide and is tightened with the included bolts and nuts, so there is no drilling into the frame. A medium 145 mm C-size (1.5") double socket arm carries a 159 × 51 mm universal plate with many hole positions for GPS units, radios, third-party cradles and gimbal brackets.

Key Features

• Square post clamp – clamps around square posts up to 51 mm wide – such as forklift cab frames – and is tightened with the included bolts and nuts, no drilling needed
• Universal electronics plate – the 159 × 51 mm plate offers many hole positions for GPS units, CB and ham radios, third-party cradles and gimbal brackets; extra holes can be drilled if needed
• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• Medium double socket arm – 145 mm overall, 118 mm socket to socket, with an easy-to-adjust knob
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – marine-grade aluminium

Compatibility

• Square posts up to 51 mm wide, e.g. forklift cab frames
• GPS units, CB and ham radios, third-party cradles and gimbal brackets
• All RAM C-size (1.5") ball bases, adapters and holders

Technical Specifications

More RAM cradles, ball bases and socket arms are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
