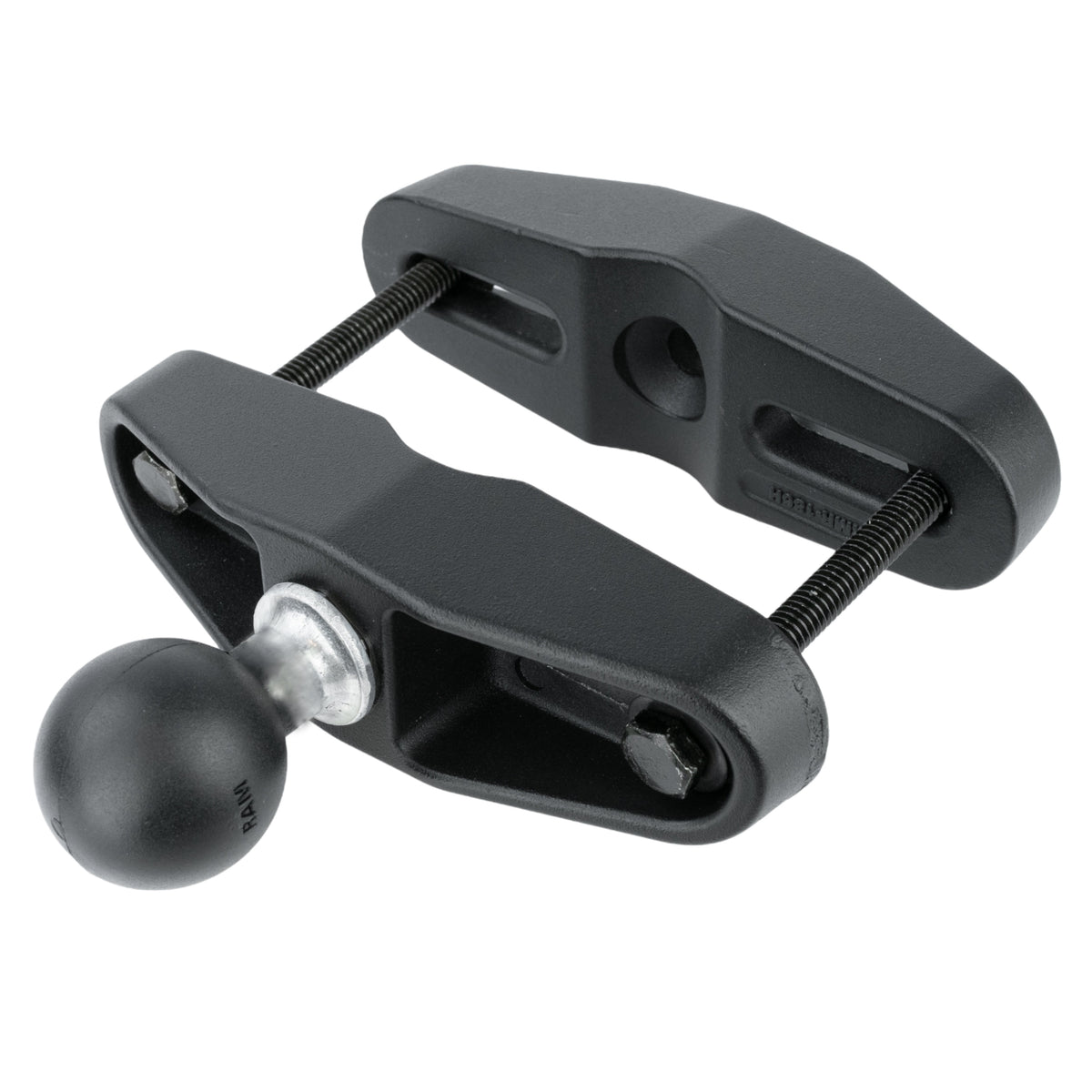

RAM Mounts C-size square post clamp ball base for forklift posts RAM-247U – product photo
RAM Mounts C-size square post clamp ball base for forklift posts RAM-247U – product photo
RAM Mounts C-size square post clamp ball base for forklift posts RAM-247U – product photo
RAM Mounts C-size square post clamp ball base for forklift posts RAM-247U – product photo

RAM Mounts Square Post Clamp Base for Posts 44–102 mm Wide, C-Size (RAM-247U)

1.199,00 Kč +VAT
Mount type
Clamp plate, 2-hole 60 mm, no hardwareSquare post clamp 44–102 mmSquare post clamp ≤ 64 mmSquare post clamp ≤ 64 mm, no hardwareSquare post clamp ≤ 76 mm

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: In Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAM-247U
RAM Mounts C-size square post clamp ball base for forklift posts RAM-247U – product photo
RAM MOUNT
RAM Mounts Square Post Clamp Base for Posts 44–102 mm Wide, C-Size (RAM-247U)
1.199,00 Kč +VAT

RAM Mounts Square Post Clamp Base for Posts 44–102 mm Wide, C-Size (RAM-247U) clamps a RAM C-size (1.5") ball onto square posts and flat profiles 44.5–101.6 mm (1.75"–4") wide – a typical installation point on forklifts and other material-handling vehicles. The clamp is tightened around the post with the supplied two 5/16"-18 × 3.5" hex bolts, so it can be adjusted or removed easily – no drilling required. Its slotted holes make it the most universal of RAM's clamp bases. Add any RAM C-size double socket arm and a holder or VESA plate to complete the mount.

📦 What's in the box – RAM-247U

  • Square post clamp base – with C-size (1.5") ball, for posts 44.5–101.6 mm (1.75"–4") wide
  • Assembly hardware – 2 × 5/16"-18 × 3.5" hex bolts, 2 × nuts, 2 × flat washers, 2 × lock washers, 2 × rubber caps

💡 You might also consider a C-size double socket arm and a C-size VESA 75 ball plate to attach a terminal or display with a VESA 75 pattern.

View accessories →

Key Features

  • Post clamp – for square posts 44.5–101.6 mm (1.75"–4") wide; adjustable and easy to remove
  • Slotted holes – the most universal RAM clamp base
  • C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
  • Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
  • Material – powder-coated marine-grade aluminium
  • Lifetime warranty – backed by RAM Mounts

Compatibility

  • All RAM C-size (1.5") double socket arms
  • Square posts and flat profiles 44.5–101.6 mm (1.75"–4") wide (e.g. on forklifts)

Technical Specifications

Part Number RAM-247U
Product Type Square post clamp ball base
Connection C-size (1.5") ball; clamp range 44.5–101.6 mm (1.75"–4")
Load Capacity 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
Material Powder-coated marine-grade aluminium
Weight 0.66 kg (1.45 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box Square post clamp base, assembly hardware

Looking for a terminal to mount? Browse our Vehicle Mount Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
