RAM Mounts Square Post Clamp Base for Posts up to 76 mm Wide, C-Size (RAM-247U-3)

1.366,00 Kč +VAT
Mount type
Clamp plate, 2-hole 60 mm, no hardwareSquare post clamp 44–102 mmSquare post clamp ≤ 64 mmSquare post clamp ≤ 64 mm, no hardwareSquare post clamp ≤ 76 mm
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: For Mobile Terminals
  • Barcode: RAM-247U-3
RAM Mounts C-size square post clamp ball base for forklift posts RAM-247U-3 – product photo
RAM MOUNT
RAM Mounts Square Post Clamp Base for Posts up to 76 mm Wide, C-Size (RAM-247U-3)
1.366,00 Kč +VAT

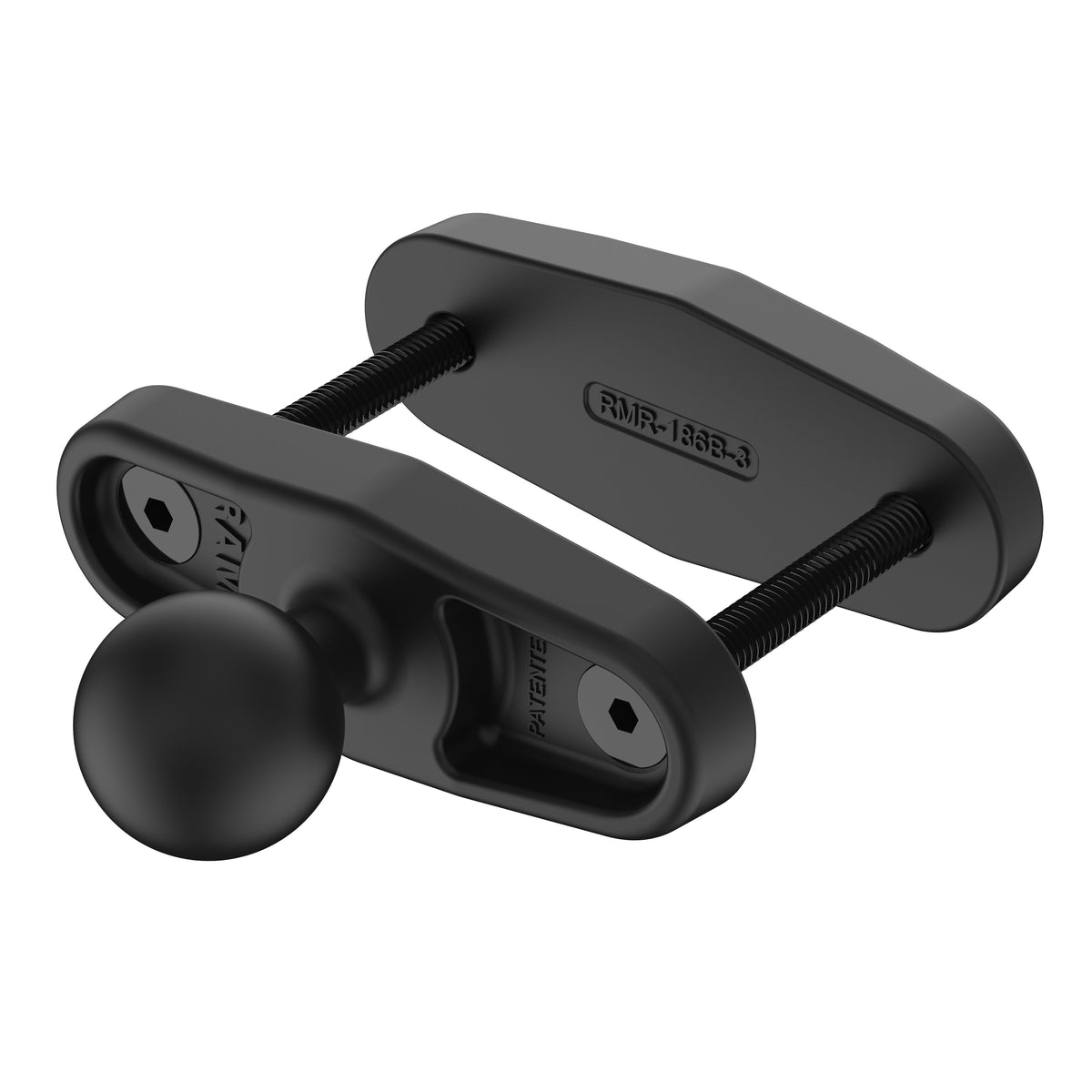

RAM Mounts Square Post Clamp Base for Posts up to 76 mm Wide, C-Size (RAM-247U-3) clamps a RAM C-size (1.5") ball onto square posts and flat profiles up to 76.2 mm (3") wide – a typical installation point on forklifts and other material-handling vehicles. The clamp is tightened around the post with the supplied two 5/16"-18 × 3" machine screws and nyloc nuts, so it can be adjusted or removed easily – no drilling required. Add any RAM C-size double socket arm and a holder or VESA plate to complete the mount.

📦 What's in the box – RAM-247U-3

  • Square post clamp base – with C-size (1.5") ball, for posts up to 76.2 mm (3") wide
  • Machine screws 5/16"-18 × 3" – 2 pcs
  • Nyloc nuts 5/16"-18 – 2 pcs

💡 You might also consider a C-size double socket arm and a C-size VESA 75 ball plate to attach a terminal or display with a VESA 75 pattern.

View accessories →

Key Features

  • Post clamp – for square posts up to 76.2 mm (3") wide; adjustable and easy to remove
  • C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
  • Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
  • Material – powder-coated marine-grade aluminium
  • Lifetime warranty – backed by RAM Mounts

Compatibility

  • All RAM C-size (1.5") double socket arms
  • Square posts and flat profiles up to 76.2 mm (3") wide (e.g. on forklifts)

Technical Specifications

Part Number RAM-247U-3
Product Type Square post clamp ball base
Connection C-size (1.5") ball; clamp range up to 76.2 mm (3")
Load Capacity 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
Material Powder-coated marine-grade aluminium
Weight 0.41 kg (0.91 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box Square post clamp base, machine screws 5/16"-18 × 3", nyloc nuts 5/16"-18

Looking for a terminal to mount? Browse our Vehicle Mount Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberMount typePrice
RAM Mounts Square Post Clamp Base for Posts 44–102 mm Wide, C-Size (RAM-247U) RAM-247USquare post clamp 44–102 mm1.199,00 Kč+VATIn Stock
RAM Mounts Square Post Clamp Base for Posts up to 64 mm Wide, C-Size (RAM-247U-25) RAM-247U-25Square post clamp ≤ 64 mm617,00 Kč+VATOut of Stock View
RAM Mounts Square Post Clamp Base for Posts up to 64 mm Wide, without Hardware, C-Size (RAM-247U-25NH) RAM-247U-25NHSquare post clamp ≤ 64 mm, no hardware579,00 Kč+VATOut of Stock View
RAM Mounts Ball Base with 2-Hole Pattern 2 3/8" / 60 mm, C-Size (RAM-247U-2NHB) RAM-247U-2NHBClamp plate, 2-hole 60 mm, no hardware825,00 Kč+VATOut of Stock View
RAM Mounts Square Post Clamp Base for Posts up to 76 mm Wide, C-Size (RAM-247U-3) RAM-247U-3ViewingSquare post clamp ≤ 76 mm1.366,00 Kč+VATOut of Stock

Accessories

ProductPrice
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mm (RAM-201U) RAM Mounts Double Socket Arm, C-Size, Medium, 145 mmRAM-201U729,00 Kč+VATIn Stock
RAM Mounts Double Socket Arm, C-Size, Long, 232 mm (RAM-201U-D) RAM Mounts Double Socket Arm, C-Size, Long, 232 mmRAM-201U-D1.361,00 Kč+VATIn Stock
RAM Mounts 75 × 75 mm VESA Plate with Ball, C-Size (RAM-2461U) RAM Mounts 75 × 75 mm VESA Plate with Ball, C-SizeRAM-2461U577,00 Kč+VATOut of Stock View
RAM Mounts 100 × 100 mm & 75 × 75 mm VESA Plate with Ball, C-Size (RAM-246U) RAM Mounts 100 × 100 mm & 75 × 75 mm VESA Plate with Ball, C-SizeRAM-246U714,00 Kč+VATIn Stock
RAM Mounts Round Plate with Ball, C-Size, AMPS Pattern (RAM-202U) RAM Mounts Round Plate with Ball, C-Size, AMPS PatternRAM-202U410,00 Kč+VATIn Stock
RAM Mounts X-Grip Holder for 7"–8" Tablets with C-Size Ball (RAM-HOL-UN8BCU) RAM Mounts X-Grip Holder for 7"–8" Tablets with C-Size BallRAM-HOL-UN8BCU1.506,00 Kč+VATOut of Stock View
RAM Mounts Key Lock Knob with Brass Insert for C-Size Socket Arms (RAM-KNOB5LU) RAM Mounts Key Lock Knob with Brass Insert for C-Size Socket ArmsRAM-KNOB5LU926,00 Kč+VATOut of Stock View
