RAM Mounts Power + Data & DB9 Dock for Honeywell ScanPal EDA10A (RAM-HOL-HON11PD2-DB9U)

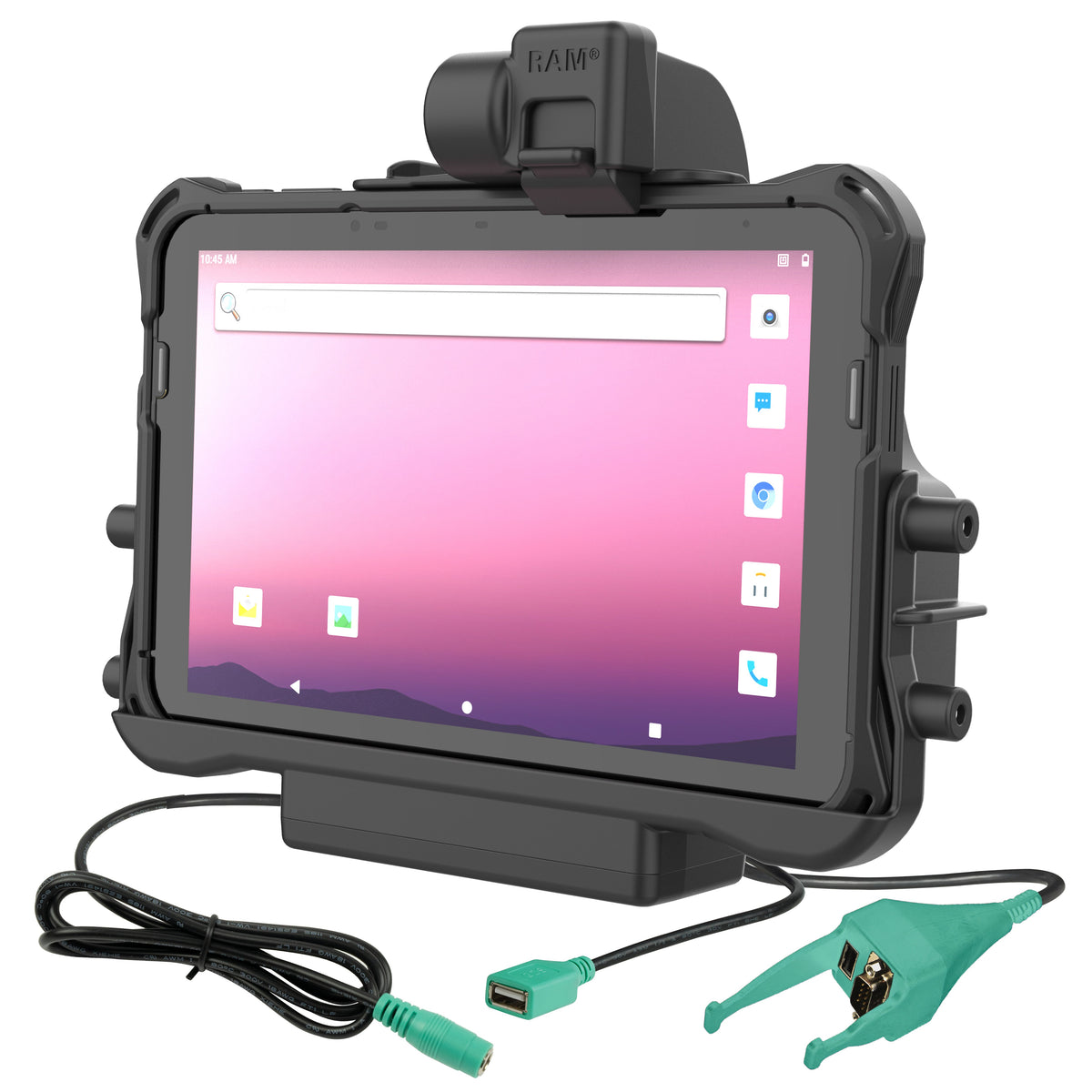

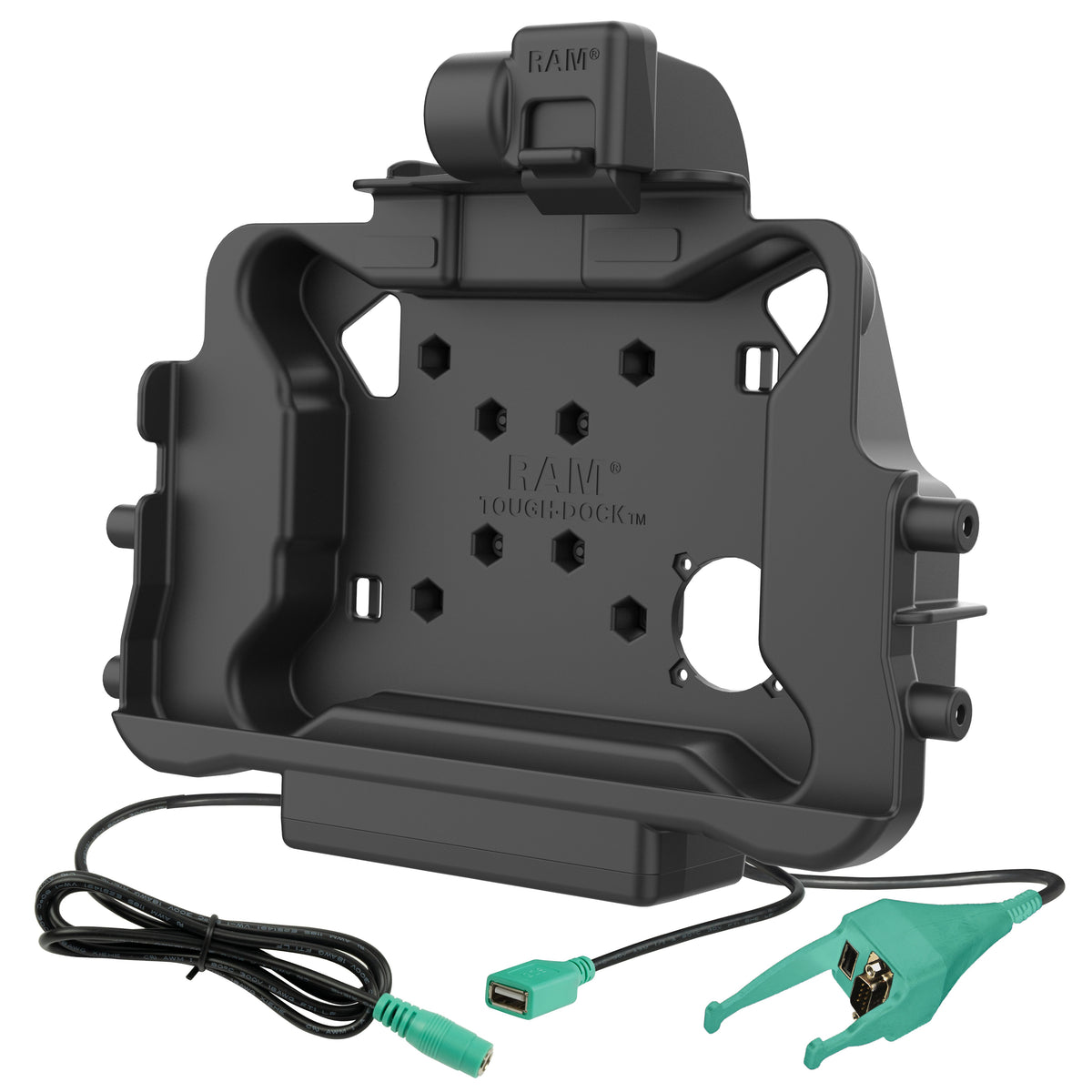

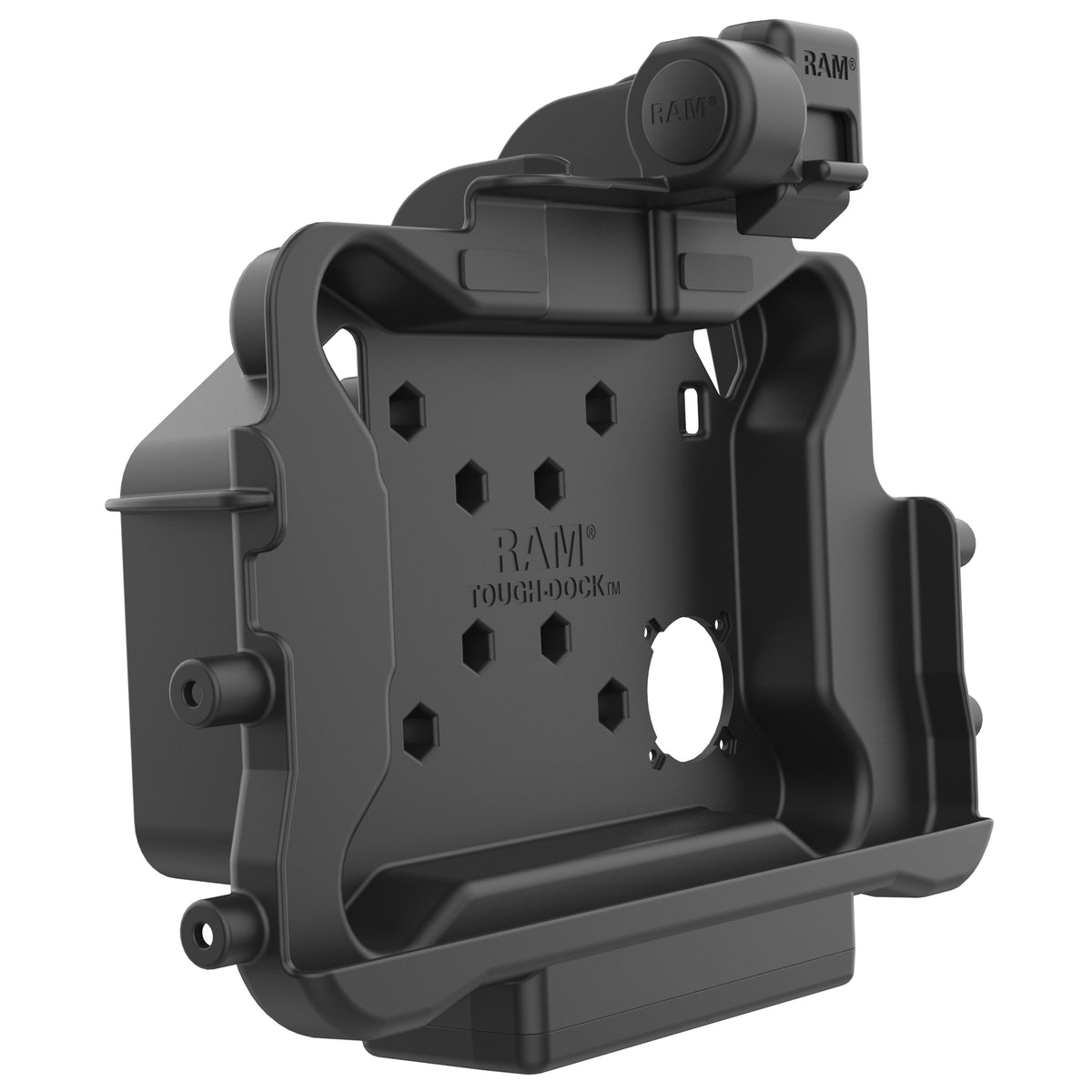

RAM Mounts Power + Data & DB9 Dock (RAM-HOL-HON11PD2-DB9U) is a spring-loaded Form-Fit dock for the Honeywell ScanPal EDA10A tablet in its OEM protective boot, which must be fitted for a secure hold. Supplied with 5 V DC through the 5.5 mm connector on its 1 m input cable, the dock charges the tablet via pogo-pin contacts whenever it is docked, and a 250 mm pigtail with USB-A and DB9 connectors links one USB and one serial device. Cutouts keep the camera, buttons and ports fully accessible, and the dock works with the OEM hand strap, the RAM NFC Extender and RAM Vent-Temp.

Key Features

• Form-Fit design – made for the ScanPal EDA10A in its OEM protective boot; cutouts keep the camera, buttons and ports accessible; works with the OEM hand strap, RAM NFC Extender and RAM Vent-Temp
• Pogo-pin charging – 5 V DC input via 5.5 mm connector on a 1 m cable; charges the tablet while docked; pogo pins rated to 100,000 cycles

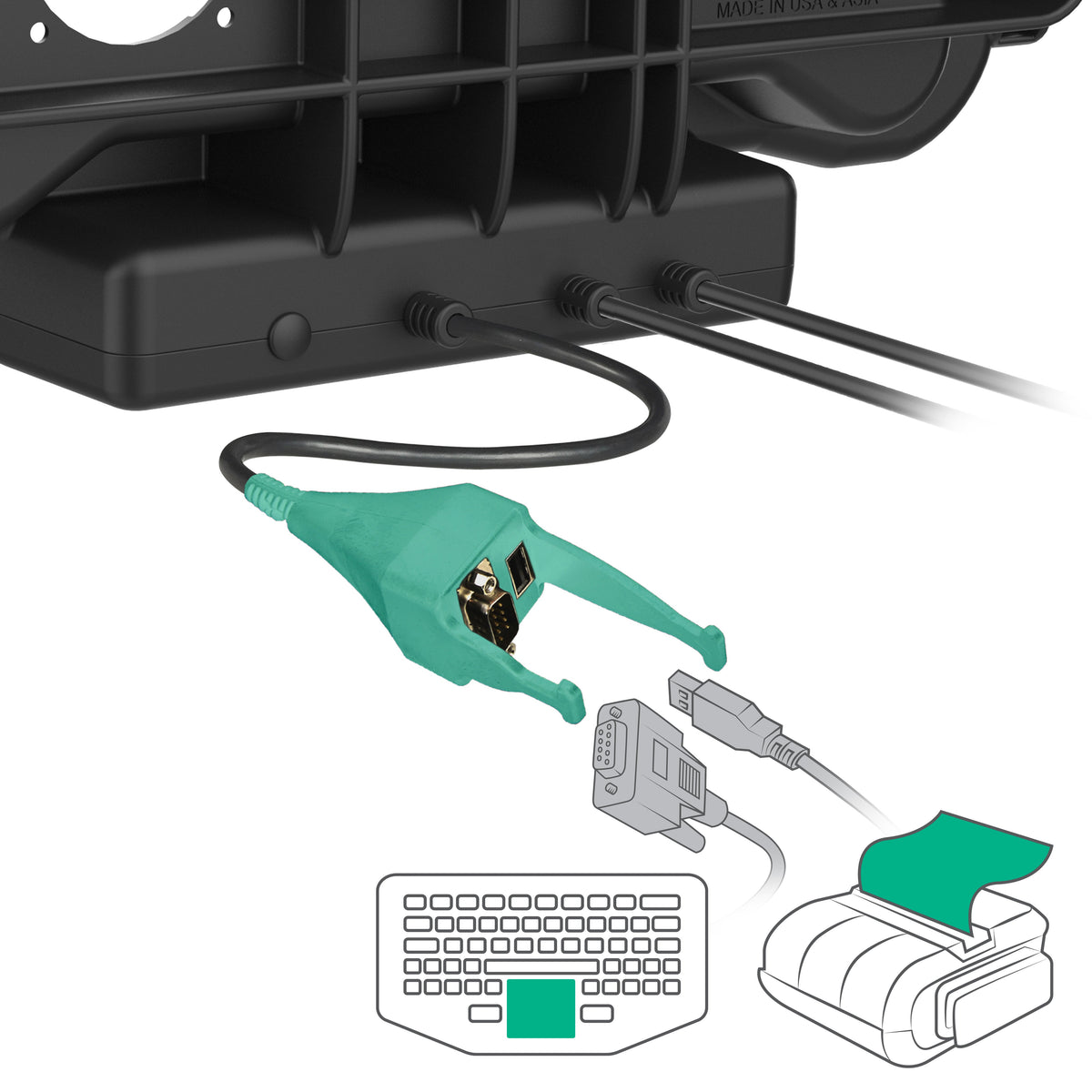

• USB and serial connection – USB 2.0 Type-A and DB9 connectors on a 250 mm pigtail

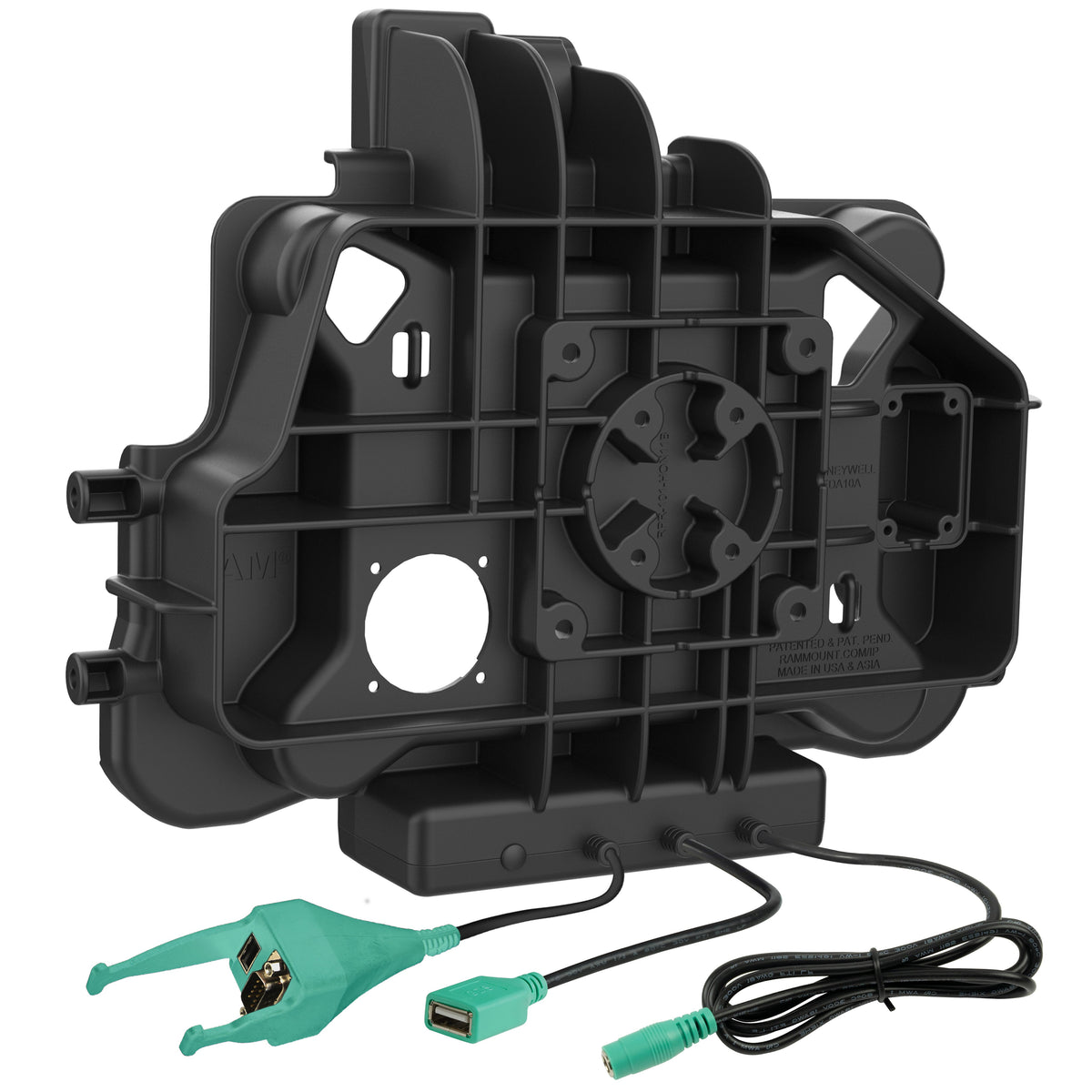

• Flexible mounting – 4-hole AMPS (30 × 38 mm) and VESA 75 × 75 mm patterns for a RAM double socket arm; two built-in 2-hole mounting points for an additional device such as a phone
• Built to last – high-strength composite, vibration and shock tested to MIL-STD-810H, backed by a 3-year RAM warranty

Compatibility

• Honeywell ScanPal EDA10A – with OEM protective boot fitted
• 4-hole AMPS (30 × 38 mm) and VESA 75 × 75 mm for a RAM double socket arm
• Two built-in 2-hole mounting points for RAM diamond bases

Technical Specifications
