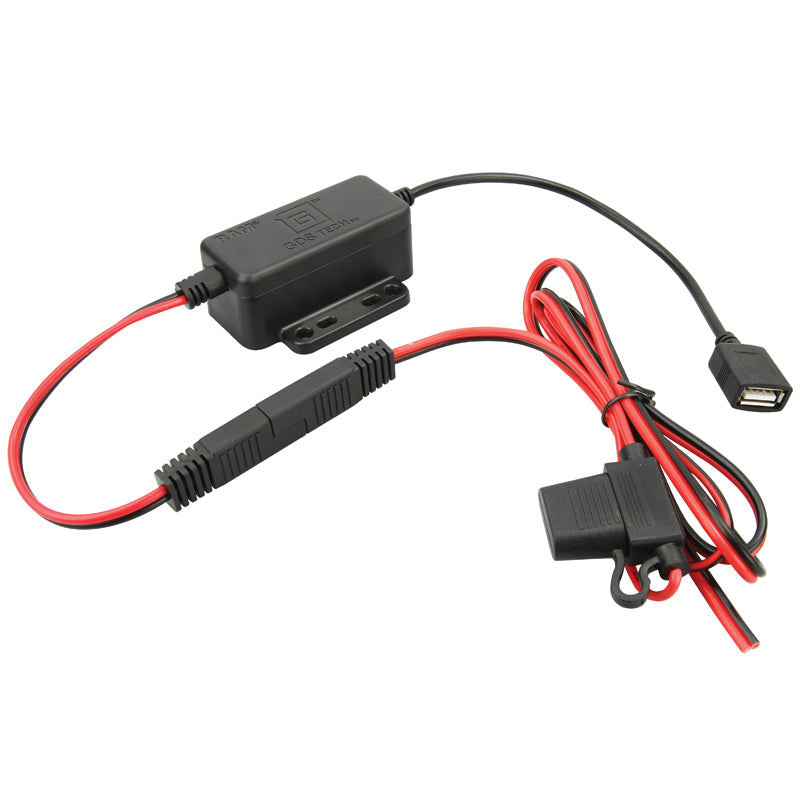

RAM Mounts GDS Hardwire Charger, Female USB-A, 30–64 V Input (RAM-GDS-CHARGE-V8BU)

RAM Mounts GDS Hardwire Charger, Female USB-A, 30–64 V Input (RAM-GDS-CHARGE-V8BU) is a GDS hardwire charger with a female USB-A socket for 30–64 V DC electrical systems. Any USB-A charging cable can be plugged in, which makes it a simple way to power RAM docks with a USB-A power cable – such as the Form-Fit powered docks for Zebra TC2x, TC5x and TC7x – or other 5 V USB devices. It delivers 5 V (USB BC1.2/DCP) or 9 V (Quick Charge 2.0/AFC) at up to 2.5 A, and the 2-pole flat marine quick-disconnect on the 1.2 m input cable lets you swap chargers without rewiring.

Key Features

• Female USB-A output – 5 V via USB BC1.2/DCP, 9 V via Quick Charge 2.0/AFC; max. 2.5 A
• 30–64 V DC input – for higher-voltage electrical systems
• Modular quick-disconnect – 2-pole flat marine connector on the 1.2 m input cable – swap chargers without rewiring
• Built-in protection – over-voltage, short-circuit and reverse-polarity protection; SAE J1113-5 load dump; moisture resistant
• Rugged and certified – operating −10 to +70 °C, storage −40 to +70 °C; FCC, CE, UKCA, IC, E-Mark, RCM, IEC/UL 62368-1, RoHS and WEEE
• 3-year warranty – backed by RAM Mounts

Compatibility

• RAM powered docks with a USB-A power cable
• Form-Fit powered docks for Zebra TC70, TC72, TC75 & TC77 (RAM-HOL-ZE7… series)
• Form-Fit powered dock for Zebra TC51, TC52, TC56 & TC57 (RAM-HOL-ZE6U)
• Form-Fit powered docks for Zebra TC20/TC21/TC26 and TC22/TC27 (RAM-HOL-ZE14U, RAM-HOL-ZE24P… series)
• 5 V USB devices in vehicles with a 30–64 V DC electrical system

Technical Specifications
