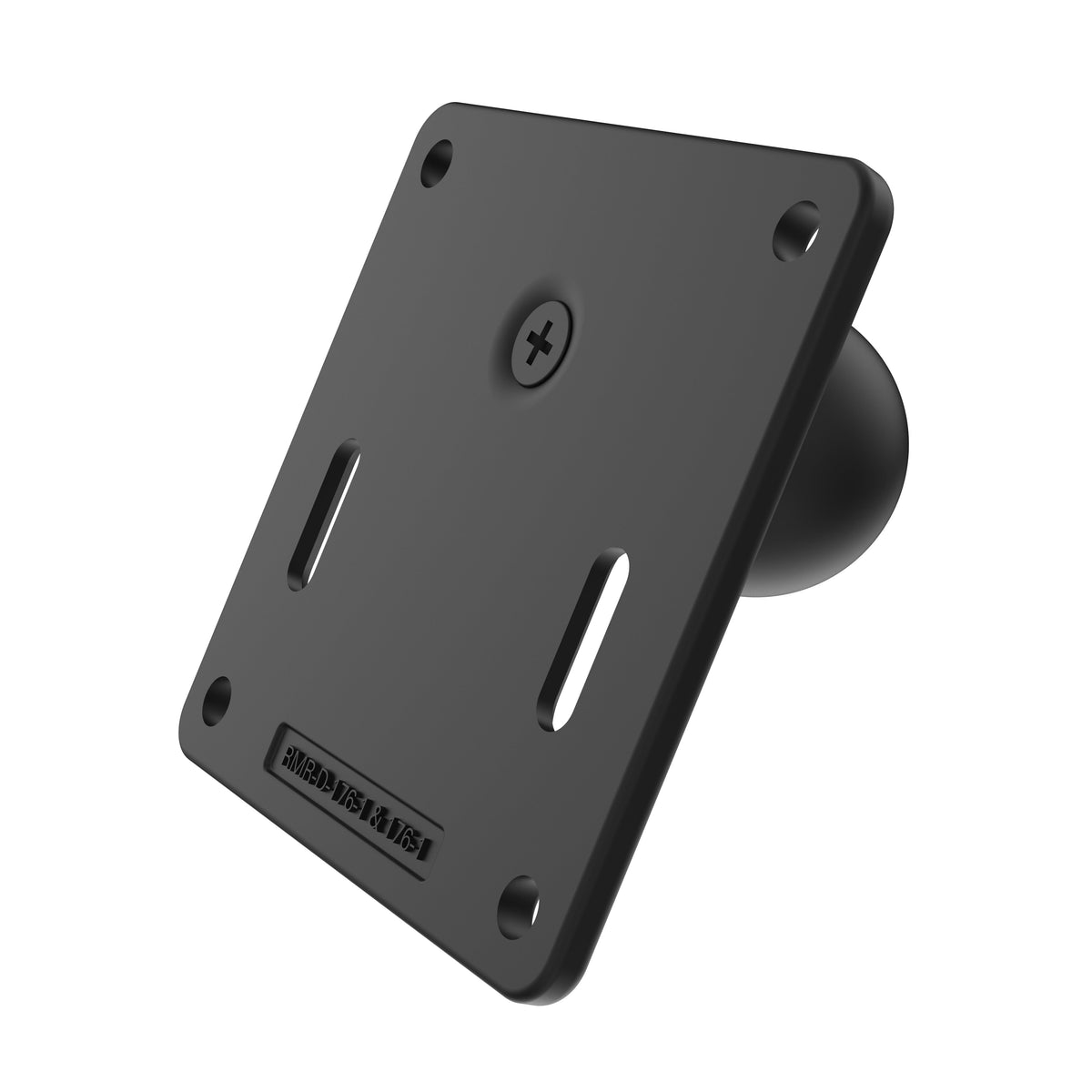

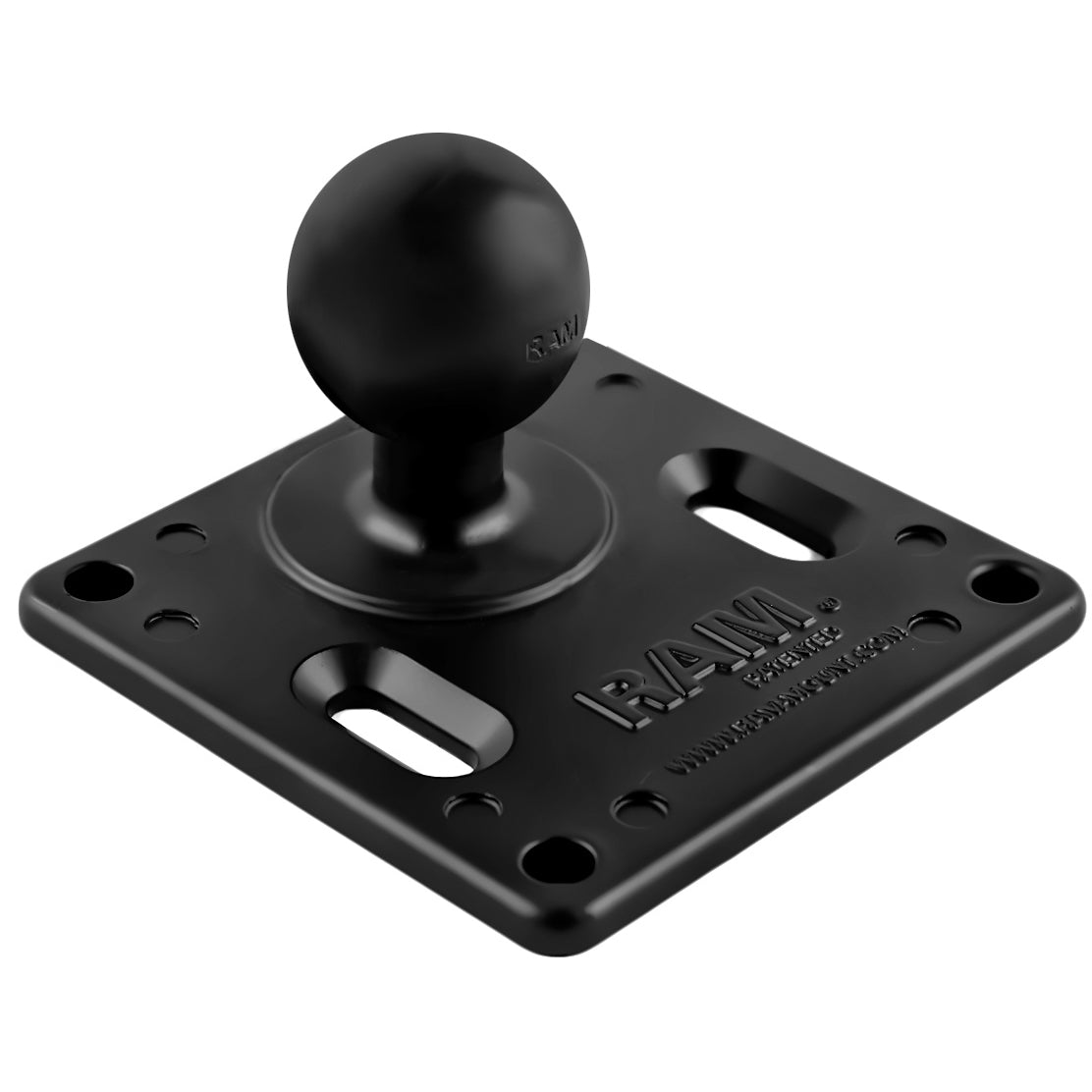

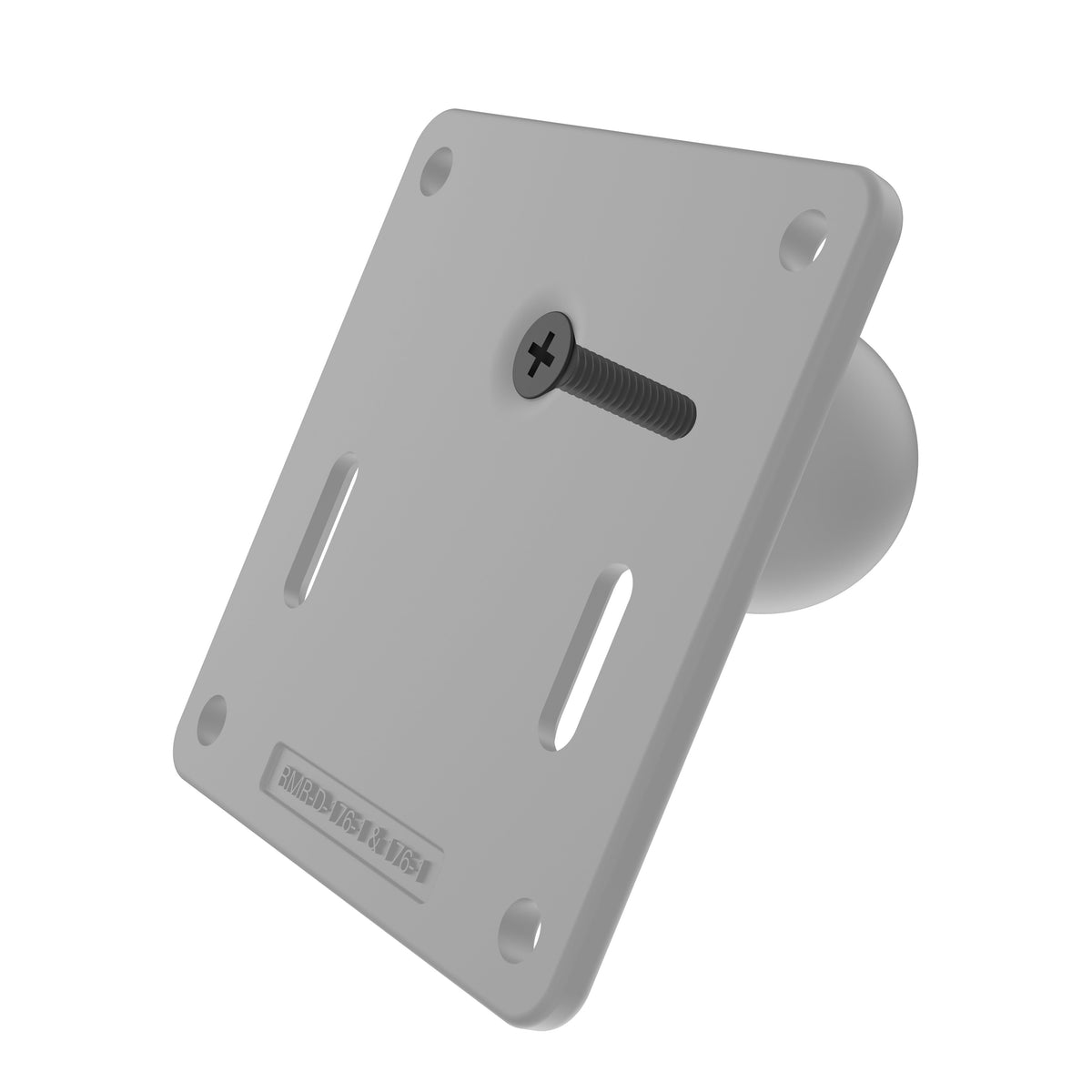

RAM Mounts 75 × 75 mm VESA Plate with Ball and Steel-Reinforced Post, C-Size (RAM-2461U-IN1)

RAM Mounts 75 × 75 mm VESA Plate with Ball and Steel-Reinforced Post, C-Size (RAM-2461U-IN1) adds a RAM C-size (1.5") rubber ball to any device or holder with a VESA 75 × 75 mm pattern – vehicle-mount terminals, monitors, docks and many tablet holders. The 92 mm (3.625") square plate is made of marine-grade aluminium; the ball sits 22.4 mm (0.88") from the centre of one edge. This version has a steel-reinforced post for extra strength. Combine it with any RAM C-size double socket arm and base to mount the device in a vehicle, on a forklift or at a workstation.

Key Features

• VESA 75 × 75 mm plate – 92 × 92 mm (3.625") square plate, ball 22.4 mm (0.88") from the centre of one edge
• Steel-reinforced post – for extra strength
• C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
• Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
• Material – marine-grade aluminium

Compatibility

• All RAM C-size (1.5") double socket arms
• Devices and holders with a VESA 75 × 75 mm pattern

Technical Specifications

Looking for a terminal to mount? Browse our Vehicle Mount Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
