Card Printer Troubleshooting: Fix Fades, Jams and Encoding
A badge printer sits unused for three weeks, then someone needs twenty staff cards by Friday. That is when the faults show up: washed out photos, a white line down every card, a ribbon that snaps halfway through the batch, or an access card that prints perfectly and opens nothing. Almost all of it comes from consumables, card stock or a setting, not from a dead printer.

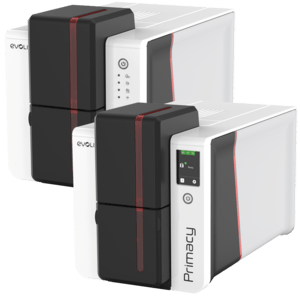

This card printer troubleshooting guide works through the common faults in the order a service technician would, cheapest check first. The examples use Evolis hardware because that is what we stock and service across the Baltics and Finland, but the logic applies to any direct-to-card printer, including Zebra and Fargo.
Which fault do you have?
| Symptom | Most likely cause | First action |
|---|---|---|
| Cards come out pale or patchy | Dirty cleaning roller, old card stock, wrinkled ribbon | Run a cleaning cycle with the Evolis Advanced Cleaning Kit (ACL002), then reprint |
| A white line in the same place on every card | Dust on the printhead, or a burnt out heating element | Clean with the pen in the kit, print a test card, compare |
| Blank card ejected | Ribbon finished, torn or not detected | Reseat the ribbon, check the ribbon is the right one for the model |
| Cards jam or feed in pairs | Thickness gauge wrong, cards stuck together, bent stock | Fan the stack, set the gauge, load fresh plastic cards (C4001) |
| Ribbon snaps or error 211 | Wrong ribbon for the printer, or heat set too high | Match the part number to the model, drop the darkness setting |
| Print is fine, card does not work on the reader | Encoding failure, coercivity mismatch, wrong track | Check the encoder is installed and the HiCo or LoCo setting matches |
| Printer offline on the network | DHCP reassigned the address | Give the printer a fixed address or a DHCP reservation |
Where card printer troubleshooting starts: the cards themselves
Print quality complaints are more often a card stock problem than a printer problem. PVC cards pick up dust, fingerprints and mould release residue. Anything that lands on the surface either blocks dye transfer, leaving a light patch, or sticks to the printhead and marks every card that follows.
Three rules stop most of it: keep cards sealed until you print, handle them by the edges, and do not reuse stock that has sat open in a drawer for months. If a batch prints pale and a card from a sealed pack prints correctly, the diagnosis is finished and it cost nothing.
Card size and thickness matter too. A standard badge is CR-80 to ISO 7810, 53.98 by 85.60 mm. The Evolis Badgy200 (B22U0000RS) takes 0.50 to 0.76 mm and adjusts the gauge automatically, while the Evolis Primacy 2 (PM2-0025-E) is built around 0.76 mm stock. Thin novelty cards and warped cards are the two most common jam causes we see.
Why do printed cards come out pale or patchy?
Work through this order and stop when the fault clears.
- Print a test card straight from the printer, not from your design software. That separates a hardware fault from a driver or template fault.
- Run a cleaning cycle. The adhesive cleaning card lifts dust off the transport rollers, which is where most contamination lives.
- Open the cover and look at the ribbon. A wrinkle or a fold in the ribbon prints as a pale band in exactly the same place on every card. Rewind by hand until the panel is flat, or fit a new roll.
- Check the ribbon is seated on both spools and turns freely. A ribbon that drags prints unevenly across the card.
- Only then raise the darkness or heat setting in the driver, and raise it one step at a time. Too much heat softens the ribbon and causes the snapped ribbon fault described below.
Photographs that look muddy rather than pale are a design problem. A printhead at 300 dpi cannot recover detail that is not in the source image, so use a front lit photograph of at least 600 by 800 pixels and never resize a small image upwards.
What causes a white line down every card?
A line in the identical position on every card means a printhead problem. There are two versions and they need different answers.
If the line is faint or intermittent, it is contamination. Switch the printer off, let the head cool, then clean it with the alcohol pen from the cleaning kit using light strokes in one direction. Wait two minutes before printing again so the alcohol evaporates. Never touch the head with fingers, metal or anything abrasive.
If the line is sharp, perfectly white and survives cleaning, a heating element has failed. That is not repairable and the head is replaced as a unit: for Primacy 2 machines the part is the Evolis print head (S10381), with a 24 month warranty. Check the printer's own cover first, since the Primacy 2 ships with 36 months and a head failure inside that window is a service claim rather than a purchase.
Why do cards jam or feed in pairs?
Cards are cut and stacked while still warm, so they cling. Fan the stack before loading and do not exceed the rated feeder capacity: 100 cards on the Primacy 2, and 25 to 40 on the Badgy200 depending on thickness.
To clear a jam, open the cover, take the ribbon out, then use the printer's transport button to walk the card out rather than pulling it. Pulling a card against the rollers is how flat cables and roller surfaces get damaged.
Repeat jams at the same point mean the thickness gauge is set for the wrong stock or the cards have a curl. Lay a suspect card on a flat table: if light shows under a corner, that batch will keep jamming.
Ribbon breaks and error 211: which ribbon does your printer take?
Evolis error 211 means the ribbon does not match the printer, usually because it was bought for a different region or a different generation of the same family. The part numbers look alike and get mixed up constantly, so keep the box.
| Printer | Ribbon | Part number | Yield |
|---|---|---|---|
| Badgy200 | Colour YMCKO | CBGR0100C | 100 prints |
| Primacy 2 | Black monochrome | RCT223NAAA | Monochrome roll |
| Zenius, Primacy (first generation) | Black monochrome | RCT023NAA | 2000 prints |
A ribbon that snaps rather than errors is nearly always heat. Lower the darkness setting by a step or two and print again. If it keeps breaking at the same panel, the ribbon has been stored somewhere warm or damp, and no setting will save it.
One habit worth keeping: print in colour only where colour carries information. A YMCKO roll on the Primacy 2 gives 300 prints, a monochrome roll far more. For a site pass that needs a name, a photograph and a barcode, monochrome is the honest answer.
Why does encoding fail when printing looks fine?
Encoding and printing are separate operations, so a card can look perfect and carry nothing. Three checks cover most failures.
First, confirm the encoder is actually fitted. Evolis error 263 means the magnetic option is not present or not detected, which happens when a printer was ordered without the encoder or when a driver update lost the configuration. Run the encoder installation wizard before assuming hardware failure.
Second, match coercivity. High coercivity cards written with a low coercivity setting produce a stripe that reads as blank, and the reverse combination writes data that wipes easily. The setting lives in the driver and the card packaging states which type you have.
Third, check the track. ISO 7811 defines three tracks with different character sets and lengths, and access control systems rarely use the same one as a canteen till. Writing alphanumeric data to a numeric only track fails silently. Error 992 during the magnetic wizard means the adjustment card was not read, so reinsert it and run the procedure again.
The same separation applies to contactless and chip cards: the encoder is a module inside the printer and the card technology has to match it. A MIFARE reader will not see a 125 kHz proximity card whatever the printer does.
How often should a card printer be cleaned?
Evolis ties cleaning to ribbon changes rather than to a calendar, which suits low volume offices well. Run a regular cleaning cycle every time you fit a new ribbon, and an advanced cleaning every fifth regular cycle. The advanced routine uses an impregnated T shaped card and an adhesive card through the feeder, followed by the printhead pen.
| Interval | What to do | What it prevents |
|---|---|---|
| Every ribbon change | Regular cleaning cycle with the adhesive card | Pale patches, spots, transferred dust |
| Every fifth cycle | Advanced cleaning, including the printhead pen | Lines, premature printhead failure |
| Before a long idle period | Remove the ribbon, close the cover, cover the printer | Ribbon marks and dust on the head |
Cleaning kits have a shelf life of their own. The pads dry out, and a dry pad moves dirt rather than lifting it, so order the Advanced Cleaning Kit (ACL002) alongside ribbons instead of keeping one in a cupboard for three years.
Common questions
My printer worked yesterday and is now offline. What changed?
Usually the network. A card printer on DHCP can be given a new address after a router restart while the driver still points at the old one. Set a fixed address or a DHCP reservation, then repoint the driver port.
Can I use any blank PVC card?
Only if it is genuinely card printer grade. Cheap cards shed dust, sit outside the thickness tolerance and carry surface residue. They cost a few cents less per card and cause most of the faults in this article.
Is a printhead replacement worth it?
On a Primacy 2 class machine, yes, since the printer is built for years of service and the head is a defined spare part. On an entry level badge printer the head price is a large share of a new unit, so replacement only makes sense outside warranty if the rest of the machine is in good condition.
Why do my cards print with a border of unprinted plastic?
Direct to card printing cannot reach the very edge of the card. If a full bleed design is required, the options are a retransfer printer or a pre printed card stock with only the variable data printed on top.
How many cards a year justifies an office printer over an outside bureau?
The switch usually happens on lead time rather than volume. If a new starter needs a working badge on day one, printing in house wins even at low volumes. A bureau still makes sense for one large annual batch with no urgency.
Ordering the right parts
Most card printer faults end with a consumable order rather than a service call. Ribbons, cleaning kits, blank cards and spare printheads sit in ID and card technology accessories, and complete machines are in plastic card printers. If you are specifying a new badge system rather than fixing an old one, start from the reader technology already in your building and choose the printer and encoder to match. Full specifications for the models named here are on the Evolis Primacy 2 datasheet.
