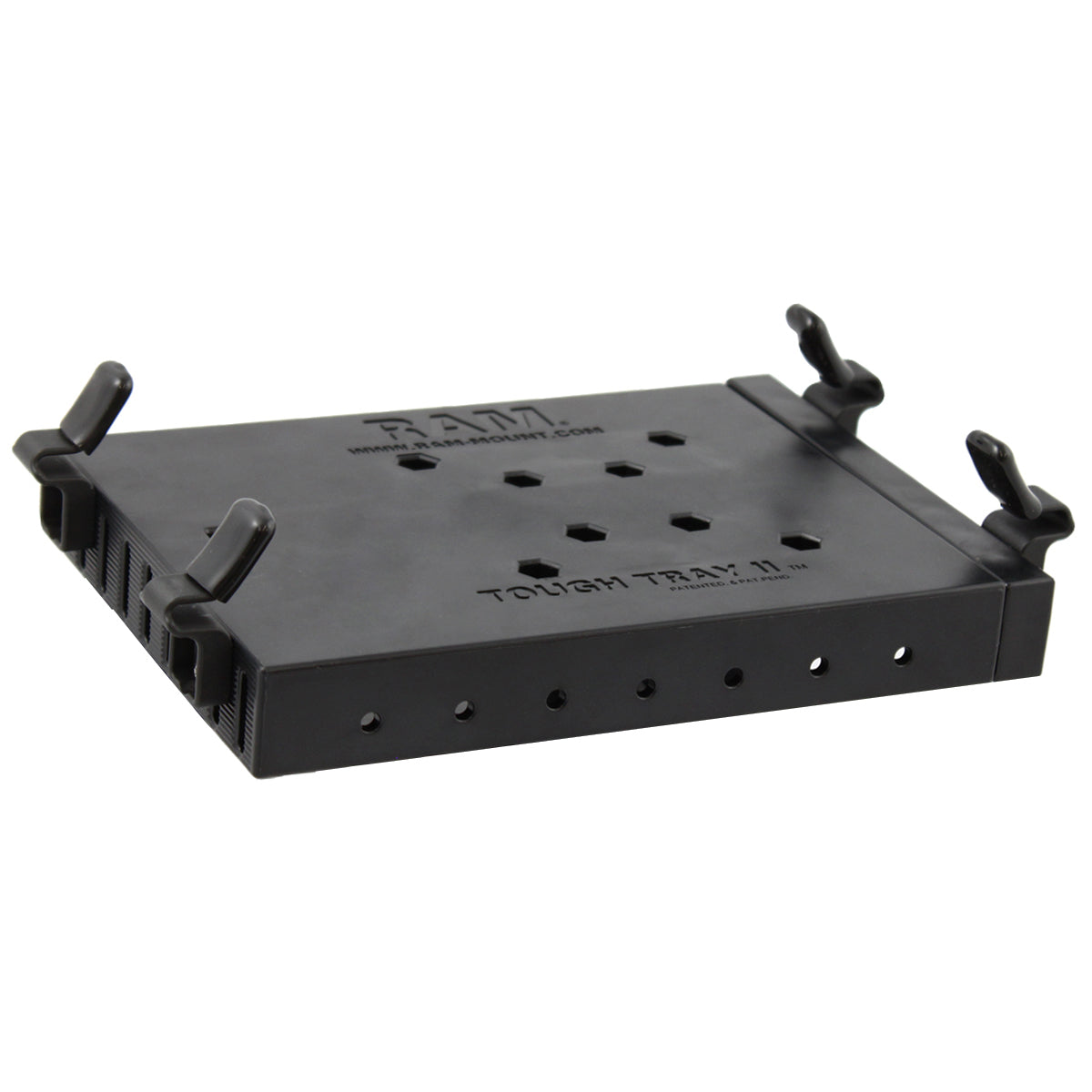

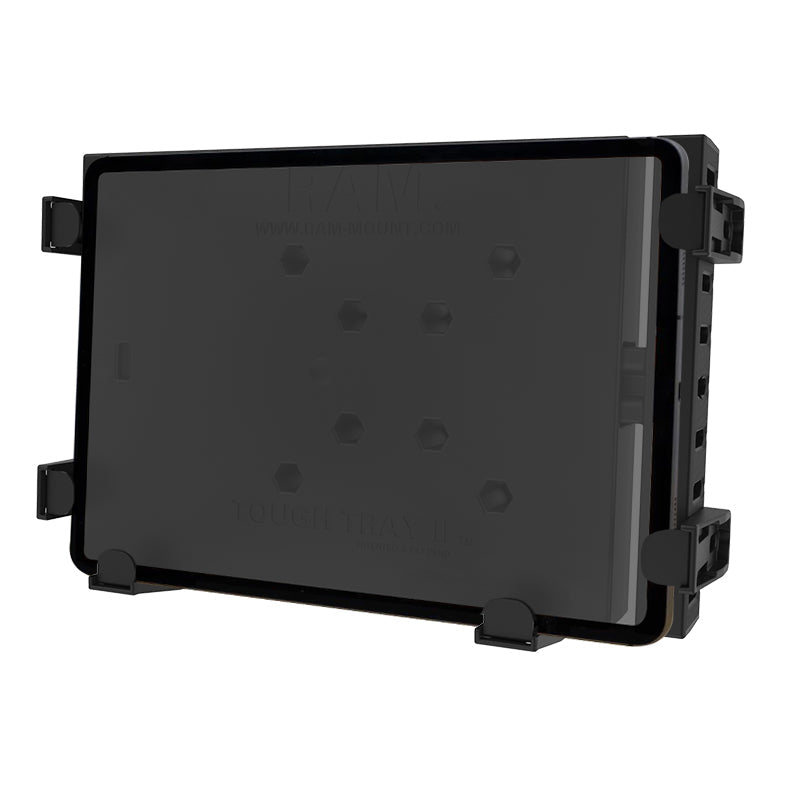

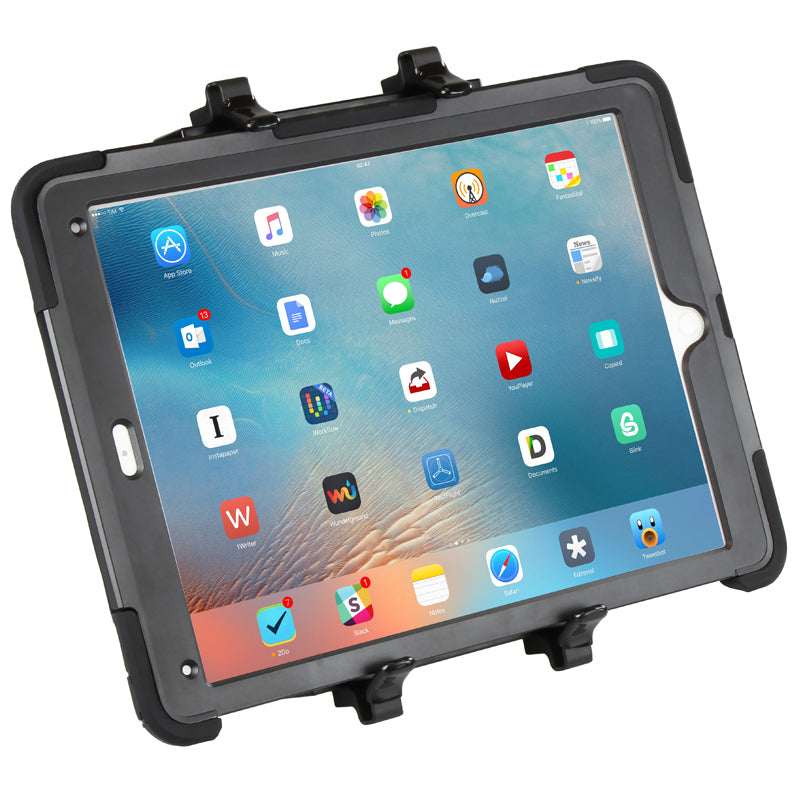

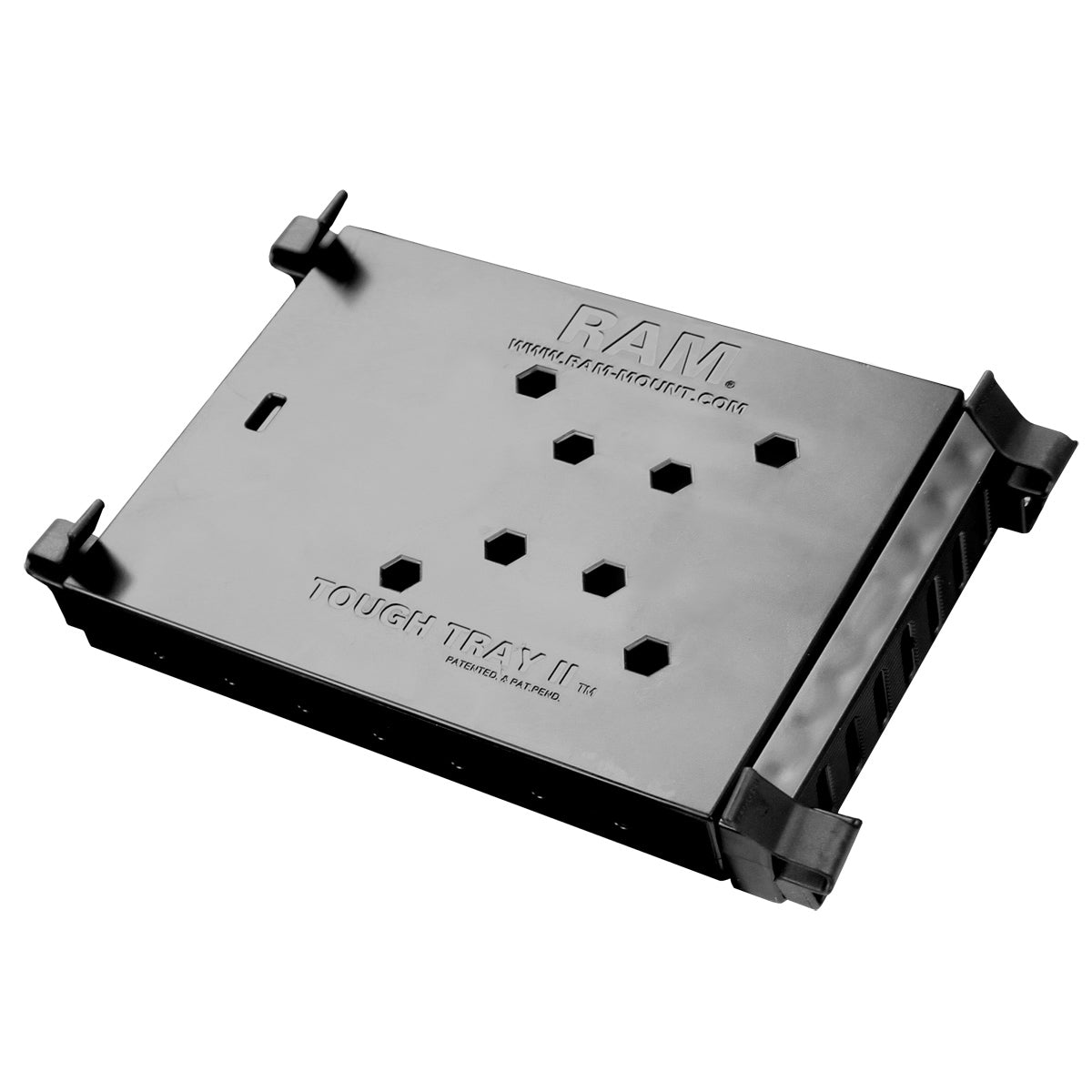

RAM Mounts Tough-Tray II Spring-Loaded Netbook & Tablet Holder (RAM-234-6)
Regular price
1.536,00 Kč +VAT
RAM Mounts Tough-Tray II Spring-Loaded Netbook & Tablet Holder (RAM-234-6) is a compact holder for tablets, UMPCs and compact laptops 217–284 mm (8.56–11.2") wide. Spring loading keeps the device secure in transit, and the supplied clamping arms are easy to install and adjust without blocking ports or functions – a compact laptop can even be held with the screen up or down. Its 4-hole AMPS pattern (30 × 38 mm) connects it to hundreds of RAM mounting systems for cars, boats, planes and more.
📦 What's in the box – RAM-234-6
- Tough-Tray II holder – spring-loaded, for devices 217–284 mm (8.56–11.2") wide
- Clamping arms – assorted retaining arms
- Mounting hardware – 4× machine screw #8-32 x 5/8", 4× nyloc nut #8-32
💡 To get started, you might also consider a round AMPS ball plate with a C-size double socket arm and base, or the RAM No-Drill universal vehicle mount with AMPS plate.
Key Features
- Spring-loaded tray – width range 217–284 mm (8.56–11.2"); tray depth 152 mm (6")

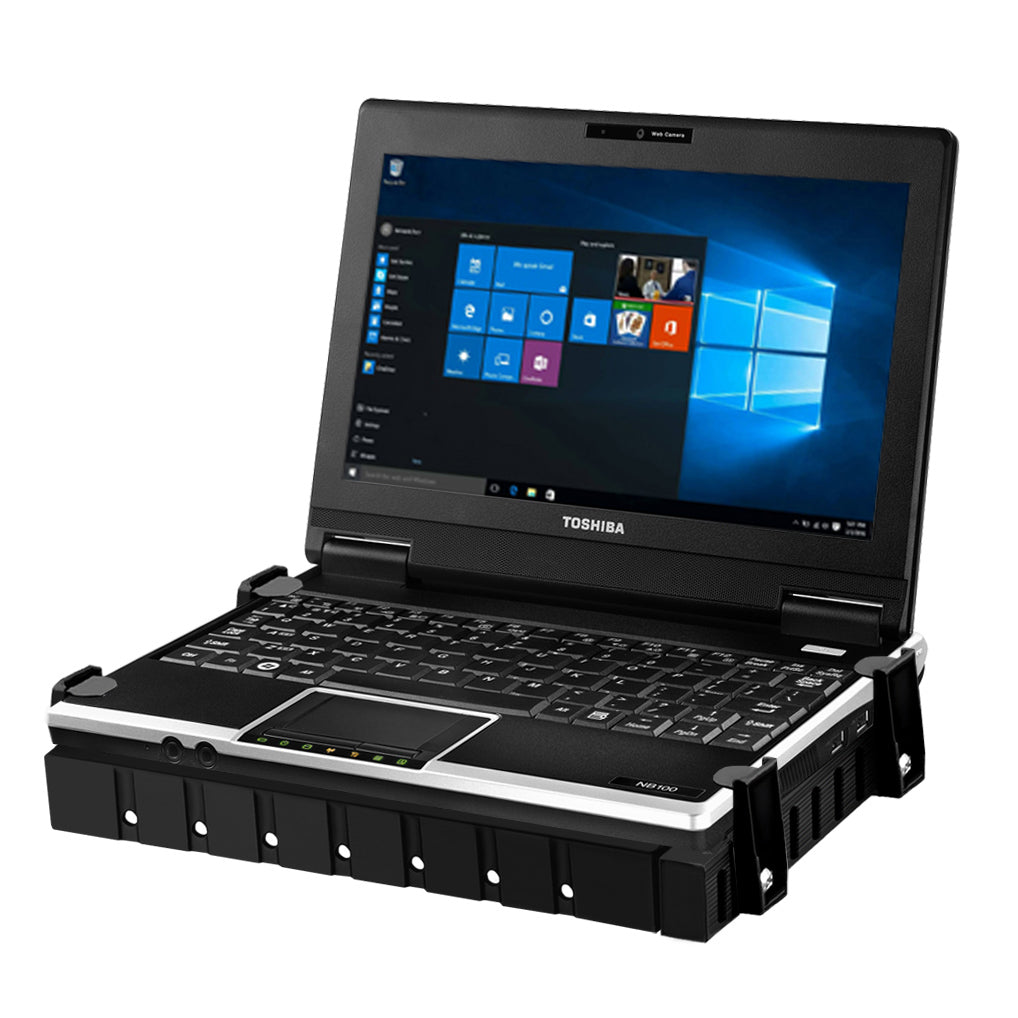

- Variety of clamping arms – side arm clamp height up to 70 mm (2.75"); compact laptops can be held screen up or down
- Port access – arms are easy to adjust so they do not block ports or functions
- AMPS mounting – 4-hole AMPS pattern (30 × 38 mm) for RAM ball plates and vehicle mounts
- Lightweight and durable – high-strength composite, backed by RAM's lifetime warranty
Compatibility
- Tablets, UMPCs and compact laptops / netbooks 217–284 mm (8.56–11.2") wide
- RAM AMPS ball plates and vehicle mounts with the 4-hole AMPS pattern (30 × 38 mm)
Technical Specifications
| Part Number | RAM-234-6 |
|---|---|
| Product Type | Spring-loaded universal tray (Tough-Tray) |
| Compatible Devices | Tablets, UMPCs and compact laptops / netbooks 217–284 mm (8.56–11.2") wide |
| Connection | 4-hole AMPS, 30 × 38 mm (1.181 × 1.496") |
| Dimensions | Width range 217–284 mm (8.56–11.2"); tray depth 152 mm (6"); tray thickness 25 mm (1"); side arm clamp height max. 70 mm (2.75") |
| Material | High-strength composite |
| Weight | 0.52 kg (1.15 lb) |
| Warranty | Lifetime warranty (RAM Mounts) |
| In the Box | Tough-Tray II holder, Clamping arms, 4× machine screw #8-32 x 5/8", 4× nyloc nut #8-32 |
