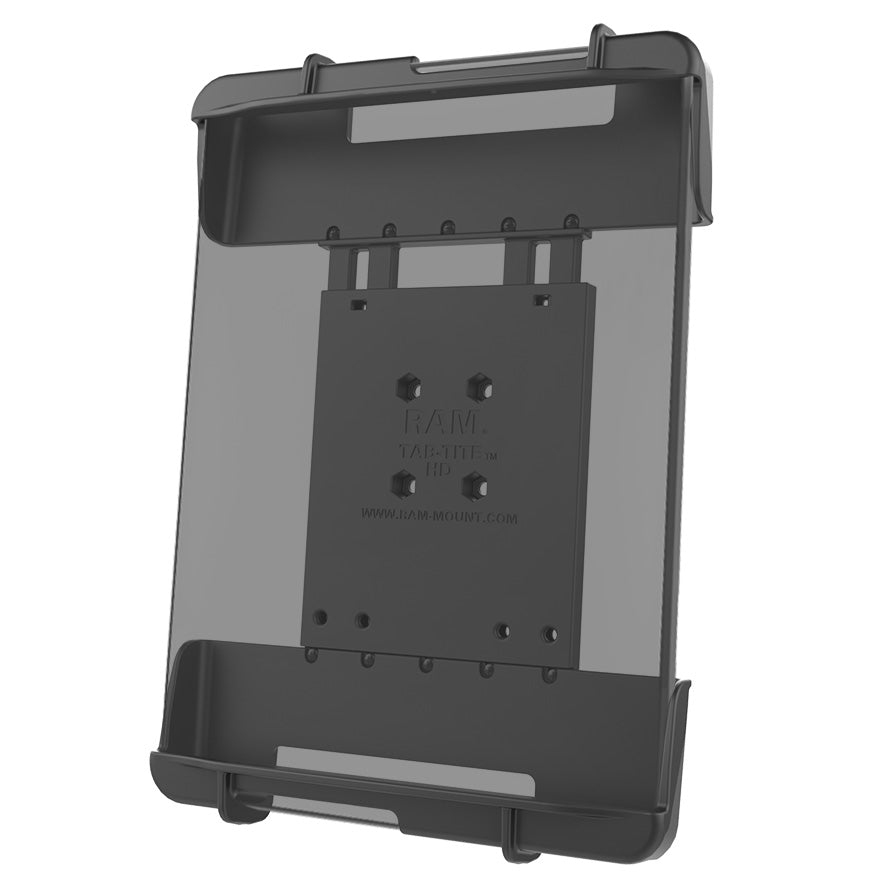

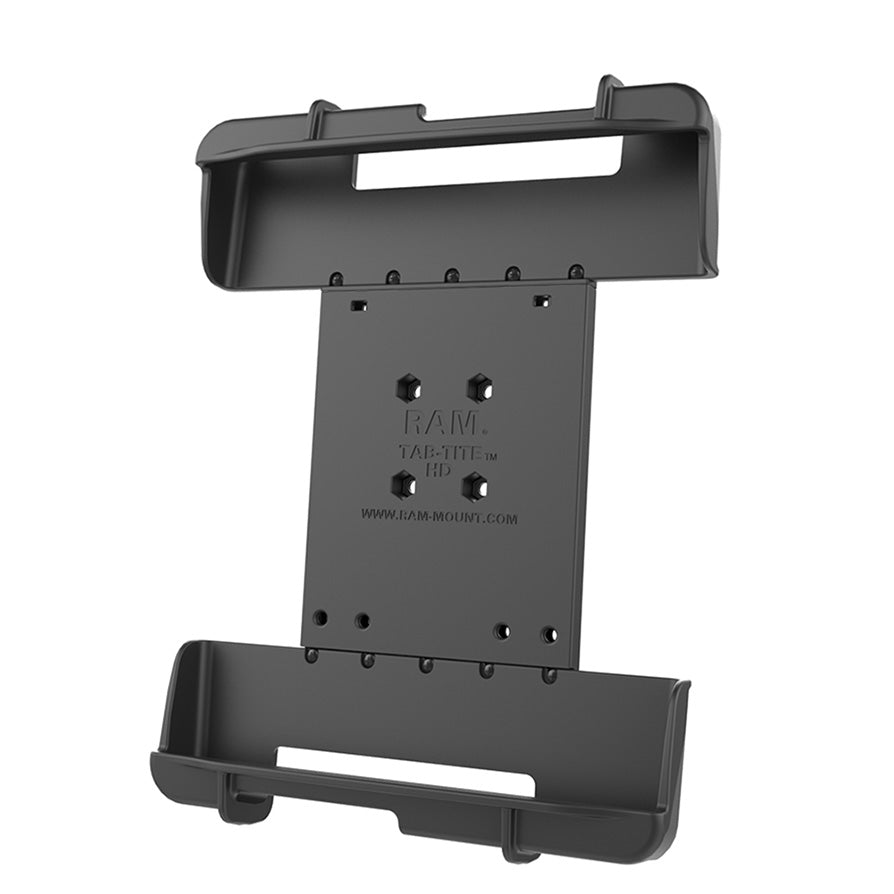

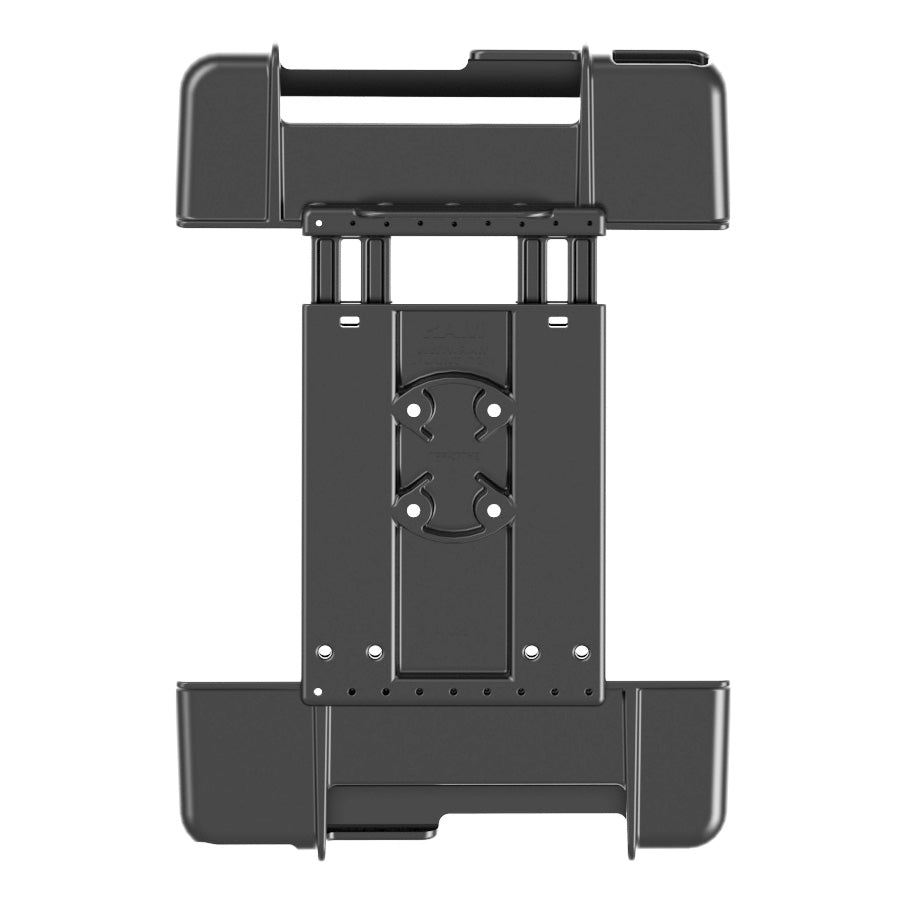

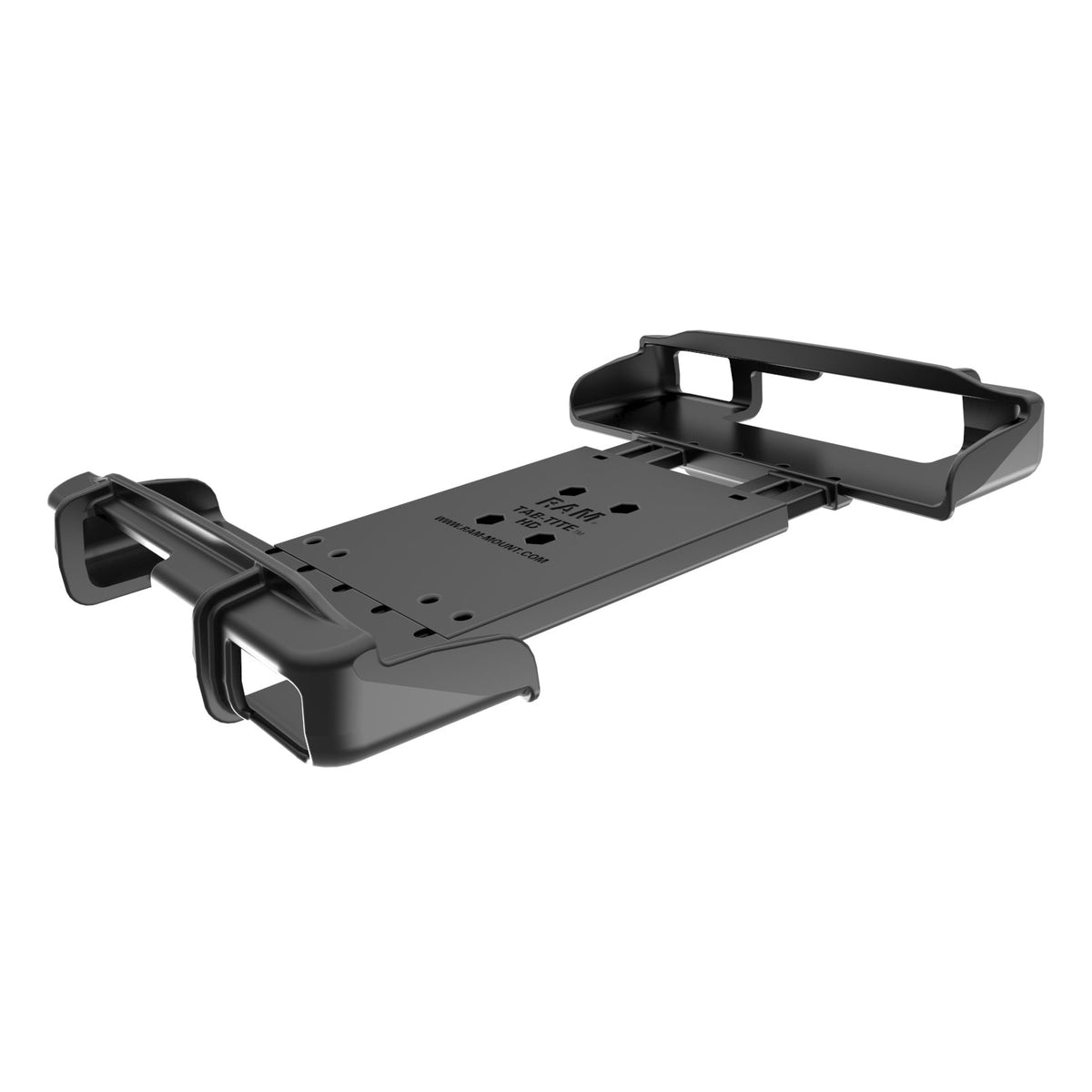

RAM Mounts Tab-Tite Holder for 10"–11" Rugged Tablets incl. Panasonic FZ-G1 (RAM-HOL-TAB19U)
Regular price
918,00 Kč +VAT
RAM Mounts Tab-Tite Holder for 10"–11" Rugged Tablets (RAM-HOL-TAB19U) combines a spring-loaded backplate with end cups made for the Panasonic Toughpad FZ-G1, and also fits other tablets 165–197 mm wide, 273–340 mm tall and 3.3–24 mm deep. Pull the cups apart, insert the tablet and let the spring tension hold it securely – the open cup design keeps audio, USB, power and other ports usable. The interchangeable cups can be swapped when you upgrade devices, and the backplate attaches to RAM B- and C-size round ball bases via the 4-hole AMPS pattern.
📦 What's in the box – RAM-HOL-TAB19U
- Tab-Tite backplate – RAM-HOL-ACU, spring-loaded, 4-hole AMPS pattern
- Tab-Tite end cups – RAM-HOL-TAB19-CUPSU, pair, made for Panasonic Toughpad FZ-G1
- Mounting hardware – 4 × #8-32 x 5/8" machine screws, 4 × #8-32 x 1/2" machine screws, 4 × #8-32 nyloc nuts
💡 To get started, you might also consider a C-size round plate with ball and double socket arm, or the B-size round plate and long socket arm.
Key Features
- Spring-loaded quick release – pull the cups apart to insert or remove the tablet; spring tension holds it securely on the move
- Open end cups – keep buttons, audio, USB, power and other ports accessible
- Future-proof – interchangeable cups – when you upgrade the tablet, only the cups need replacing
- AMPS mounting – 4-hole AMPS pattern for RAM B- and C-size round ball bases with a double socket arm
- Built to last – high-strength composite, backed by RAM's lifetime warranty
Compatibility
- Panasonic TOUGHPAD FZ-G1 (without extended battery)
- Amazon Fire HD 10
- Lenovo Tab P12 Pro
- Nuu Mobile Tab 10
- Tablets – height 273–340 mm (10.75"–13.375"), width 165–197 mm (6.5"–7.75"), depth 3.3–24 mm (0.13"–0.93") (incl. case)
- RAM round ball bases and other mounts with 4-hole AMPS pattern (30 × 38 mm)
Technical Specifications
| Part Number | RAM-HOL-TAB19U |
|---|---|
| Product Type | Universal tablet holder (Tab-Tite, spring-loaded) |
| Compatible Devices | Panasonic TOUGHPAD FZ-G1 and other 10"–11" rugged tablets within the size range |
| Device Size Range | Height 273–340 mm (10.75"–13.375"), width 165–197 mm (6.5"–7.75"), depth 3.3–24 mm (0.13"–0.93") |
| Connection | 4-hole AMPS (30 × 38 mm) |
| Locking | Non-locking |
| Material | High-strength composite |
| Weight | 0.34 kg (0.75 lb) |
| Warranty | Lifetime warranty (RAM Mounts) |
| In the Box | Tab-Tite backplate, end cups for FZ-G1, mounting hardware |
Looking for the device itself? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Mount type | Locking | Price | ||
|---|---|---|---|---|---|
 |
RAM-HOL-TAB19UViewing | Tab-Tite holder | Non-locking | 918,00 Kč+VATOut of Stock | |
 |
RAM-HOL-TABL19U | Tab-Lock holder | Key-locking | 2.329,00 Kč+VATIn Stock |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
 |
RAM Mounts Round Plate with Ball, C-Size, AMPS PatternRAM-202U | 410,00 Kč+VATIn Stock | |
 |
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mmRAM-201U | 729,00 Kč+VATIn Stock | |
 |
RAM Mounts Double Socket Arm, C-Size, Long, 232 mmRAM-201U-D | 1.361,00 Kč+VATIn Stock | |
 |
RAM Mounts Round Plate with Ball, B-Size, AMPS PatternRAM-B-202U | 243,00 Kč+VATIn Stock | |
 |
RAM Mounts Double Socket Arm, B-Size, Long 152 mmRAM-B-201U-C | 698,00 Kč+VATIn Stock |
