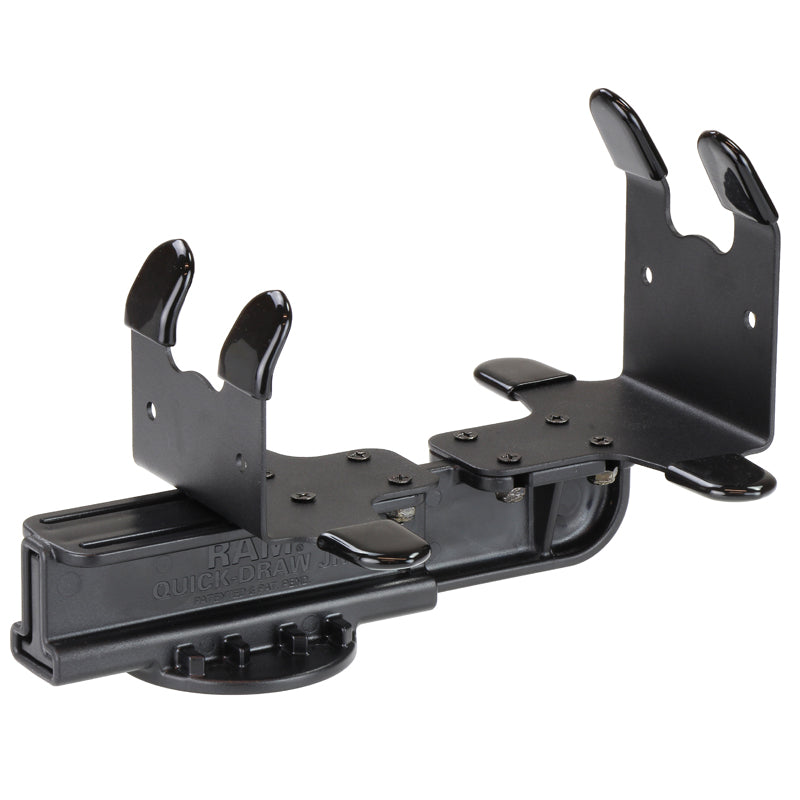

RAM Mounts Printer Cradle for Mobile Printers with Rear Paper Feed (RAM-VPR-107)
Regular price
1.452,00 Kč +VAT
RAM Mounts Printer Cradle for Portable Printers with Rear Paper Feed (RAM-VPR-107) holds mobile printers with rear paper feed, such as the Brother RuggedJet 3 series, Citizen CMP-30, Honeywell PB50/PB51 or Printronix M4L. A patent-pending spring-loaded mechanism gives a strong hold yet lets the printer be removed easily, and side clamping plates at each end fit cleanly around its edges – for printers 156–254 mm wide, with a 64 mm tall side and a 44 mm short side. The cradle mounts via the 4-hole AMPS pattern in vans, trucks and on forklifts.
📦 What's in the box – RAM-VPR-107
- Printer cradle – for printers with rear paper feed, spring-loaded with side clamping plates
- Mounting hardware – 4 × #10-24 x 5/8" machine screws, 4 × #10-24 nyloc nuts
💡 To get started, you might also consider a C-size round plate with ball with a short double socket arm, or the D-size round base with a D-size arm for a sturdier setup.
Key Features
- Spring-loaded mechanism – patent-pending design holds the printer firmly yet allows easy removal for storage
- Side clamping plates – at each end of the cradle, shaped to fit cleanly around the printer edges
- Rear paper feed – asymmetric cradle with a 64 mm tall side and a 44 mm short side
- AMPS mounting – 4-hole AMPS pattern (30 × 38 mm) for RAM round ball bases and vehicle mounts
- Durable materials – powder-coated steel and high-strength composite
Compatibility
- Brother RuggedJet 3 series
- Citizen CMP-30
- Honeywell PB50, PB51
- Printronix M4L
- RAM round ball bases and other mounts with 4-hole AMPS pattern (30 × 38 mm)
Technical Specifications
| Part Number | RAM-VPR-107 |
|---|---|
| Product Type | Universal printer holder |
| Compatible Devices | Brother RuggedJet 3 series; Citizen CMP-30; Honeywell PB50, PB51; Printronix M4L |
| Device Size Range | Width 156–254 mm (6.125"–10"); height 64 mm (2.5") tall side, 44 mm (1.75") short side |
| Connection | 4-hole AMPS (30 × 38 mm) |
| Material | Powder-coated steel and high-strength composite |
| Weight | 0.39 kg (0.85 lb) |
| In the Box | Printer holder, mounting hardware |
You will find more mounting and charging accessories in our Mobile Terminal Accessories range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Mount type | Price | ||
|---|---|---|---|---|
 |
RAM-VPR-104 | Quick-Draw Jr. printer holder | 1.310,00 Kč+VATOut of Stock | View |
 |
RAM-VPR-107Viewing | Printer holder, rear paper feed | 1.452,00 Kč+VATOut of Stock |
