RAM Mounts Key-Locking Powered Dock for Zebra MC9400 & MC9300, Heated Pins (RAM-HOL-ZE32PHLU)

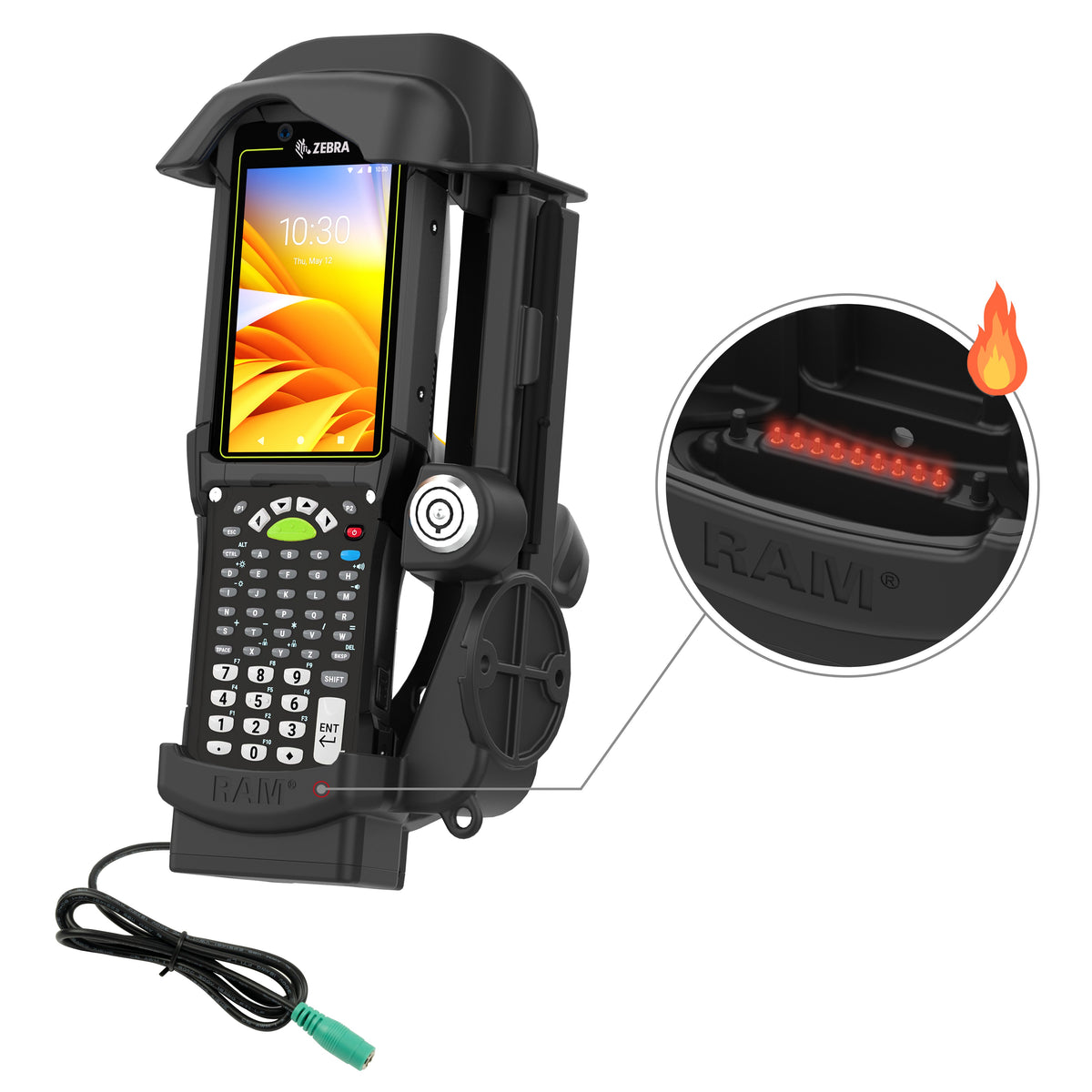

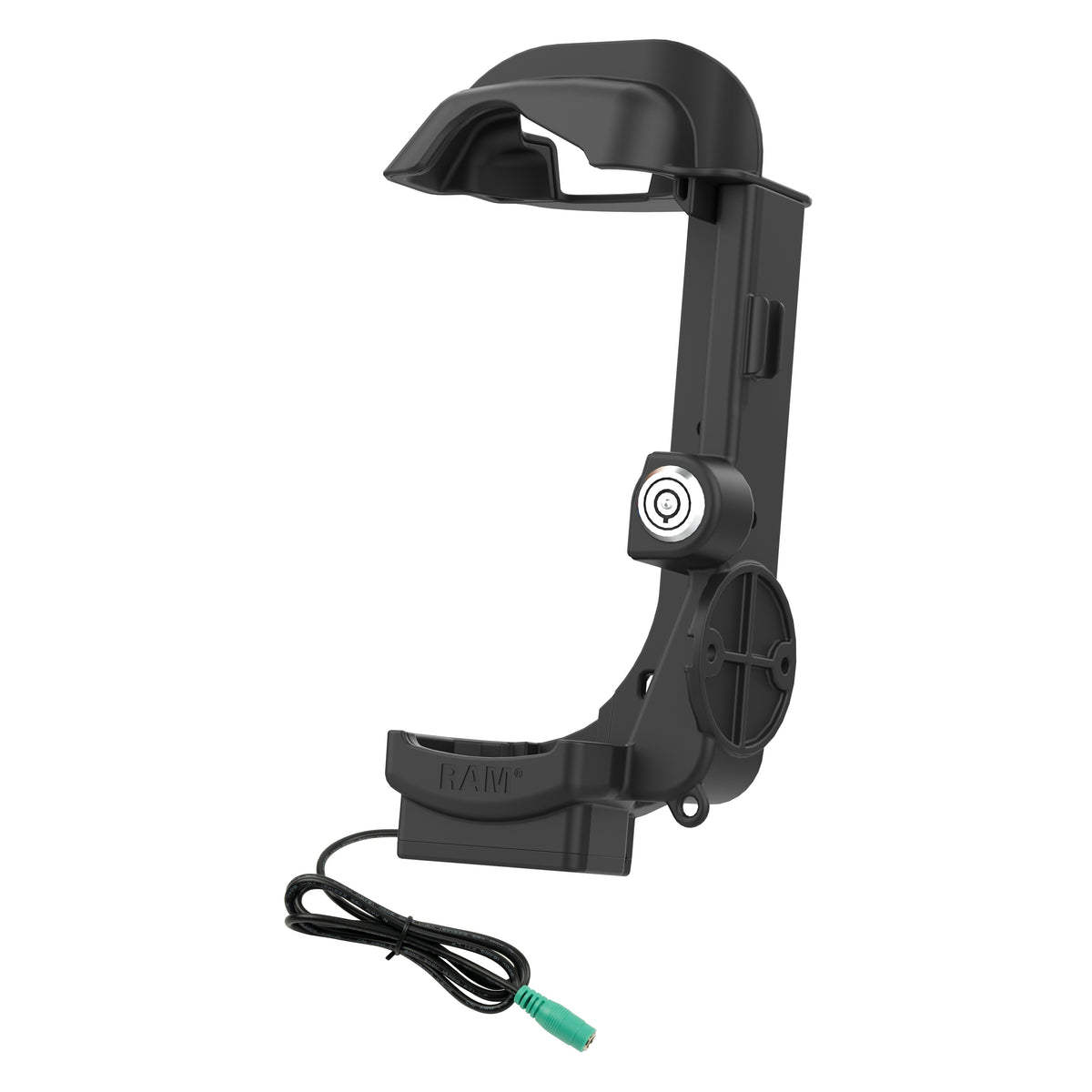

RAM Mounts Key-Locking Powered Dock with Heated Pins (RAM-HOL-ZE32PHLU) is made for the Zebra MC9400 and MC9300 ultra-rugged mobile computers and suits forklifts, warehouse vehicles and other mobile workplaces. The spring-loaded form-fit cradle charges the device through pogo pins with self-aligning pads and is powered via a 5.5 mm DC connection (9 V input); the device can also be used for scanning while docked. Included shims ensure a secure fit when the device is used without its protective boot, and a clip keeps the stylus at hand. The dock also offers heated pogo pins for wet and freezing conditions and a key lock against theft.

Key Features

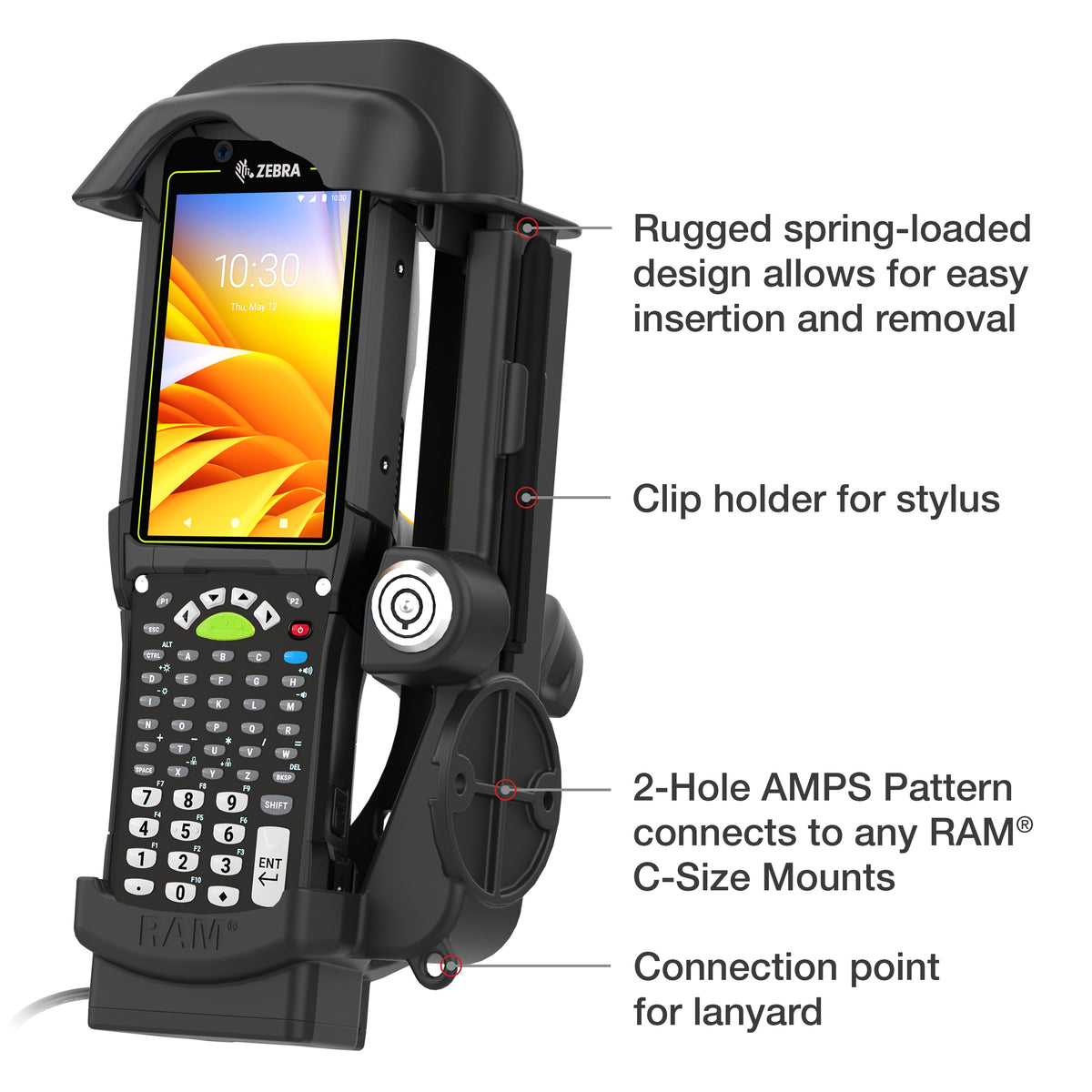

• Spring-loaded Form-Fit cradle – for the Zebra MC9400/MC9300 with or without protective boot (shims included); scanning while docked; stylus clip

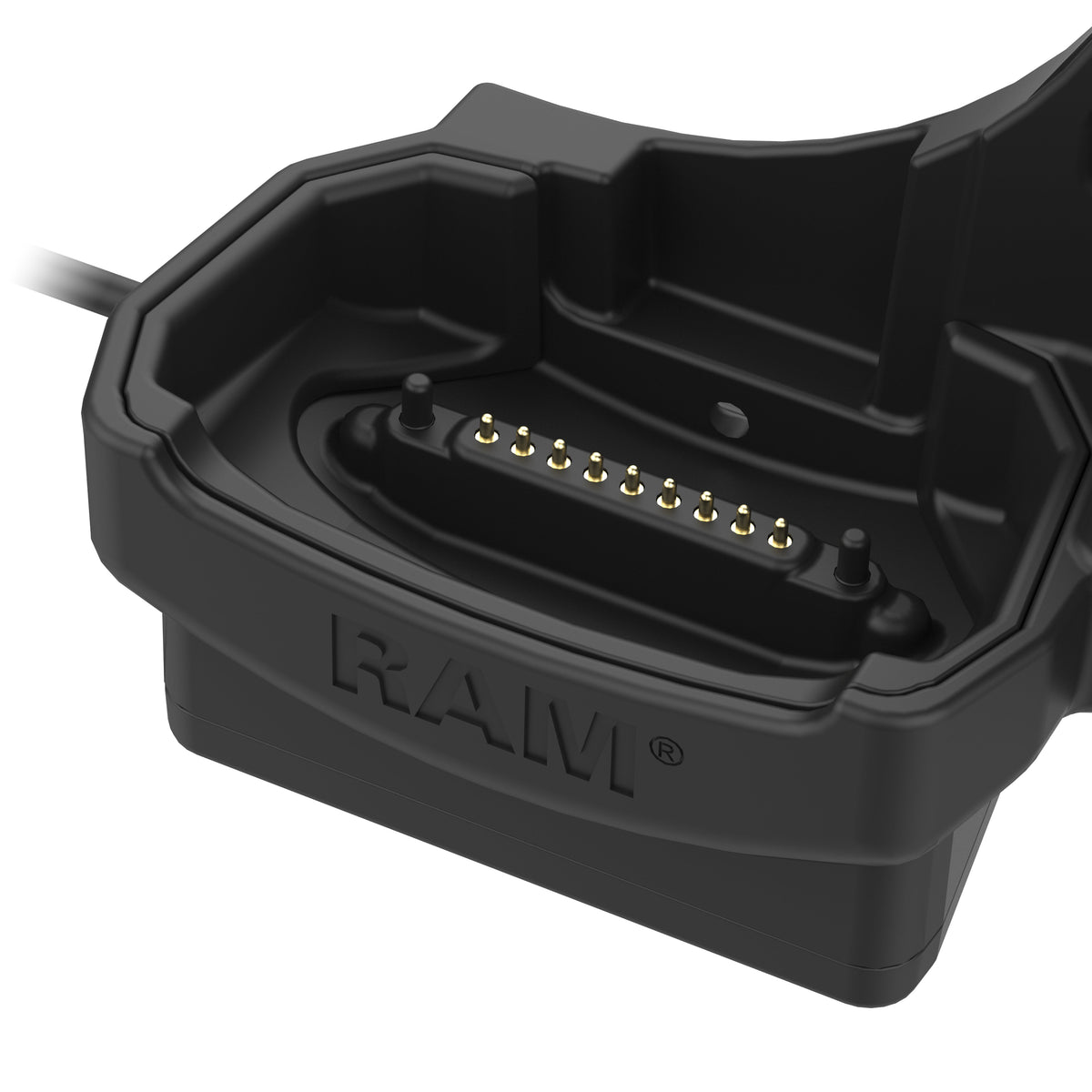

• Pogo-pin charging – 5.5 mm DC input (9 V), approx. 1 m cable; self-aligning docking pads

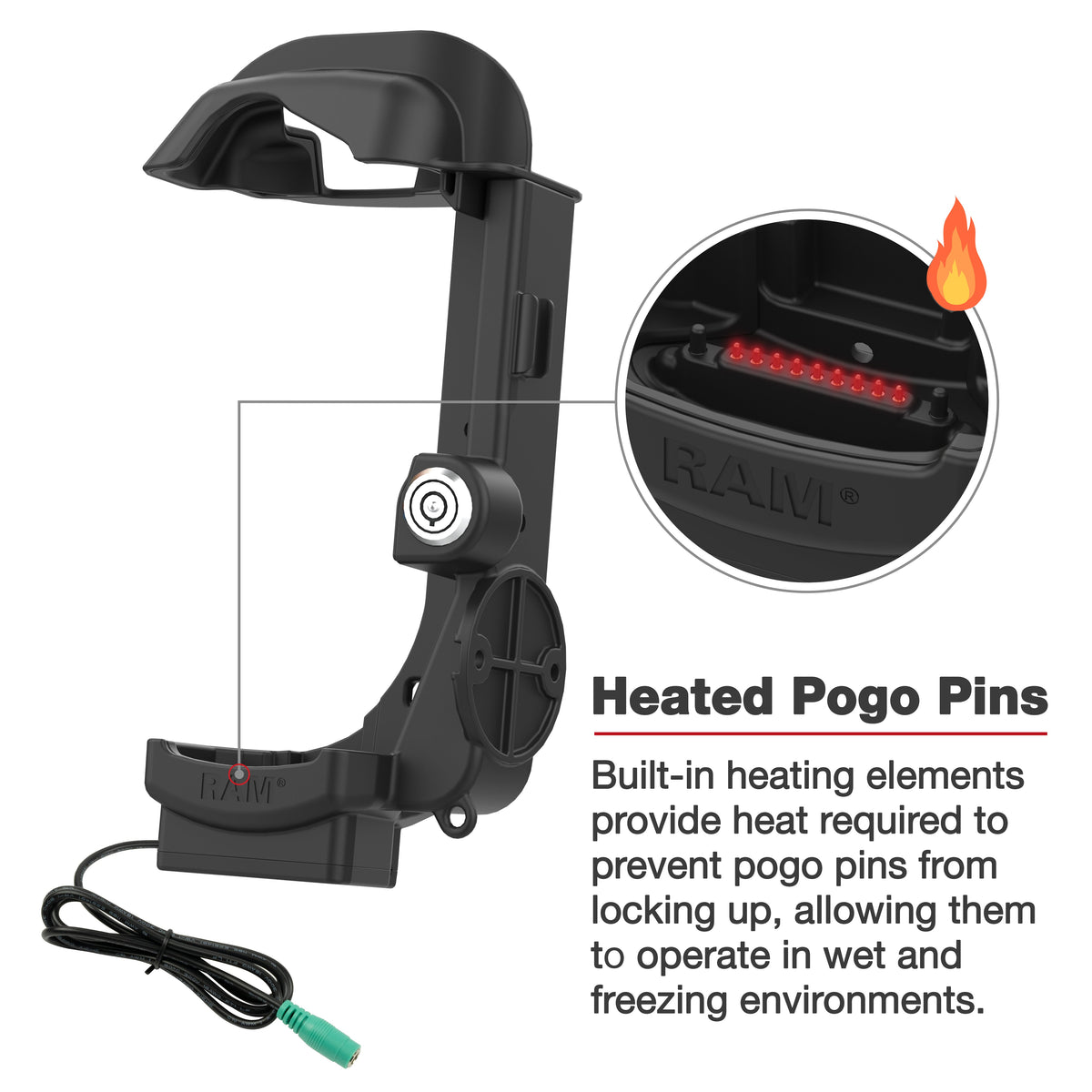

• Heated pogo pins – built-in heating elements keep the pins from locking up in wet and freezing environments
• Key lock – deters theft; 2 keys included
• Mounting & build – 2-hole AMPS (48.6 mm) pattern for RAM diamond ball bases and double socket arms; high-strength composite, 3-year RAM warranty

Compatibility

• Zebra MC9400 – with or without protective boot (shims included)
• Zebra MC9300 – with or without protective boot (shims included)
• RAM diamond ball bases (2-hole AMPS, 48.6 mm)

Technical Specifications

You will find the device and more matching accessories in our Zebra MC9400 collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
