RAM Mounts GDS Powered Dock with Latch for Zebra ET4x/ET401 8" in IntelliSkin (RAM-GDS-DOCKNLL-ZE20PU)
Regular price
3.054,00 Kč +VAT

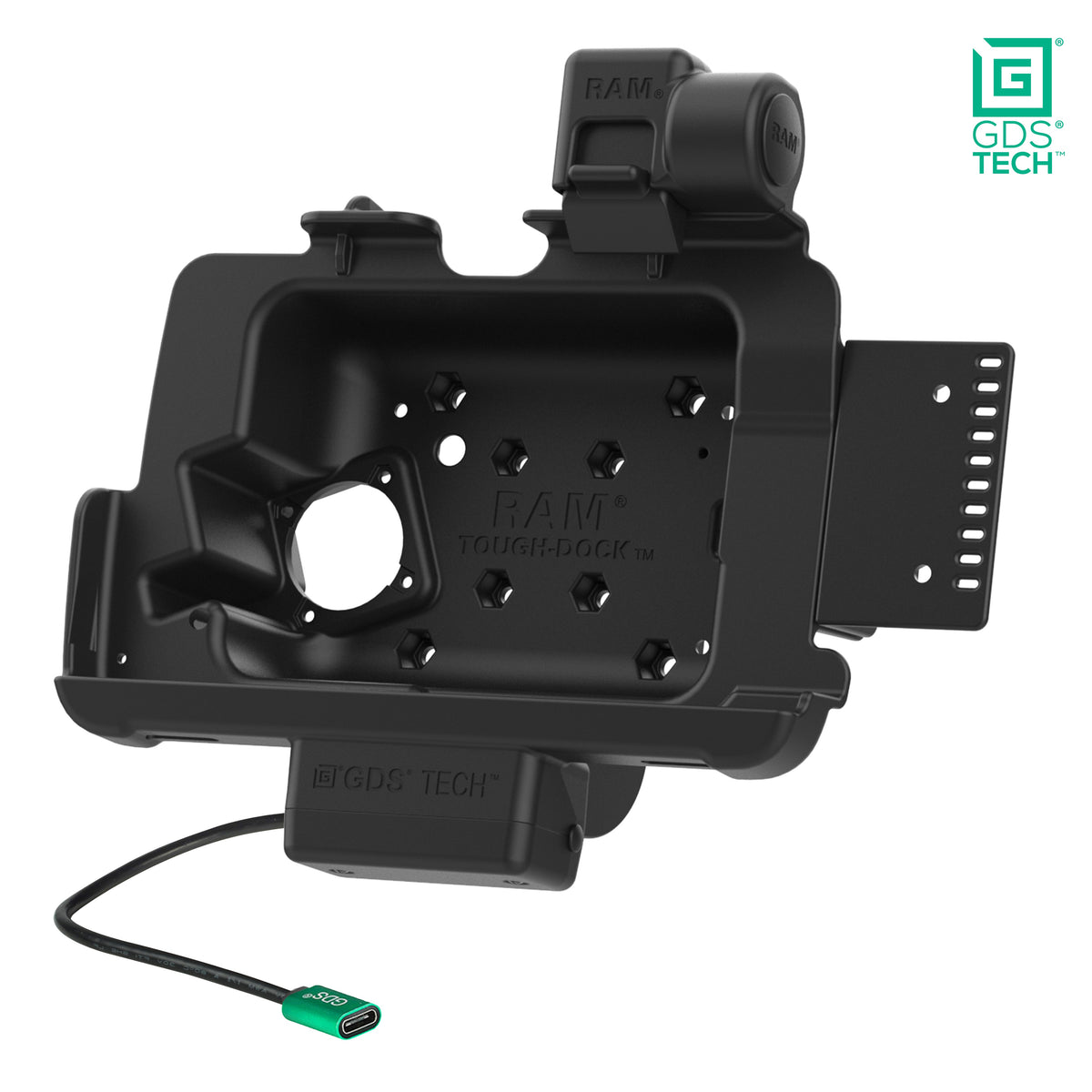

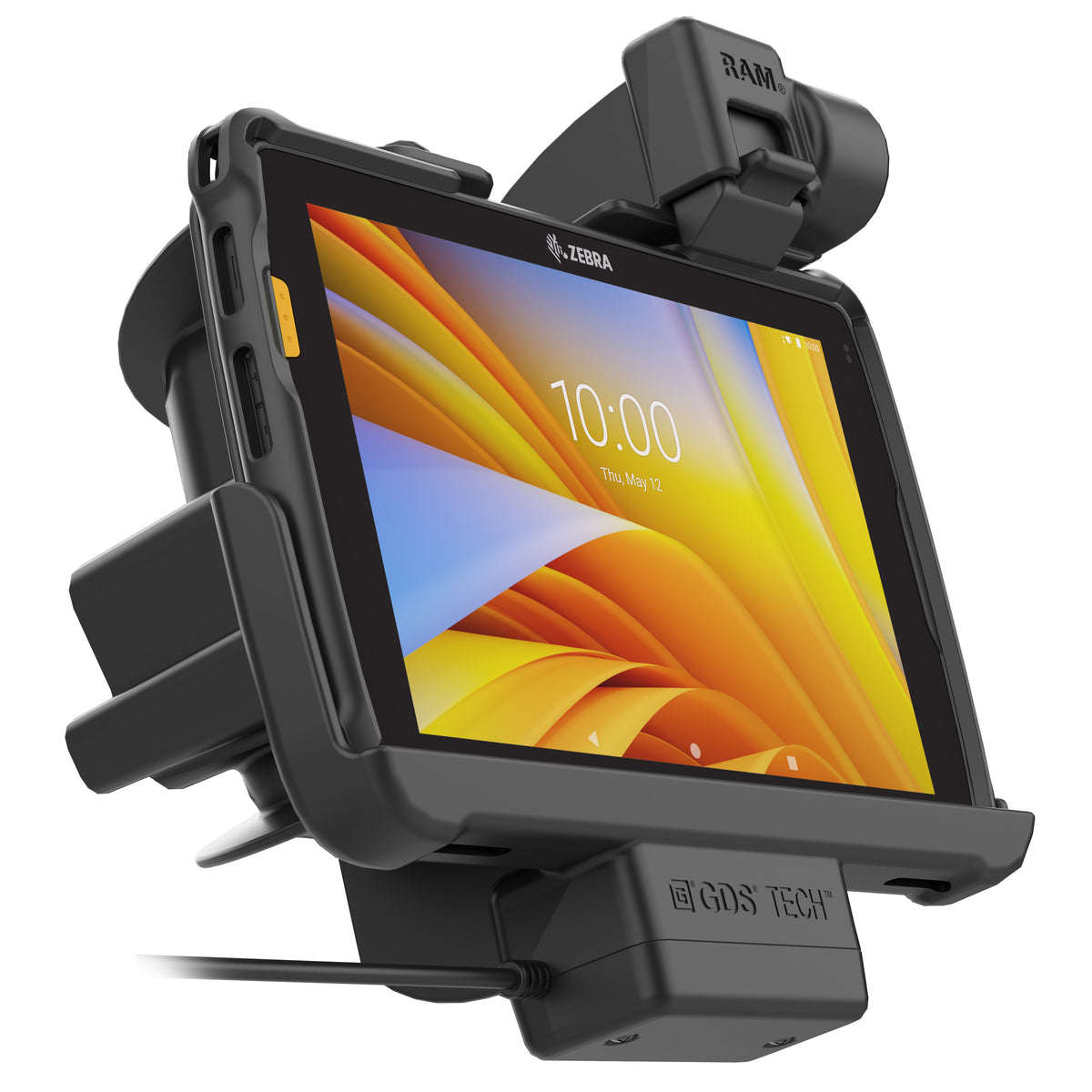

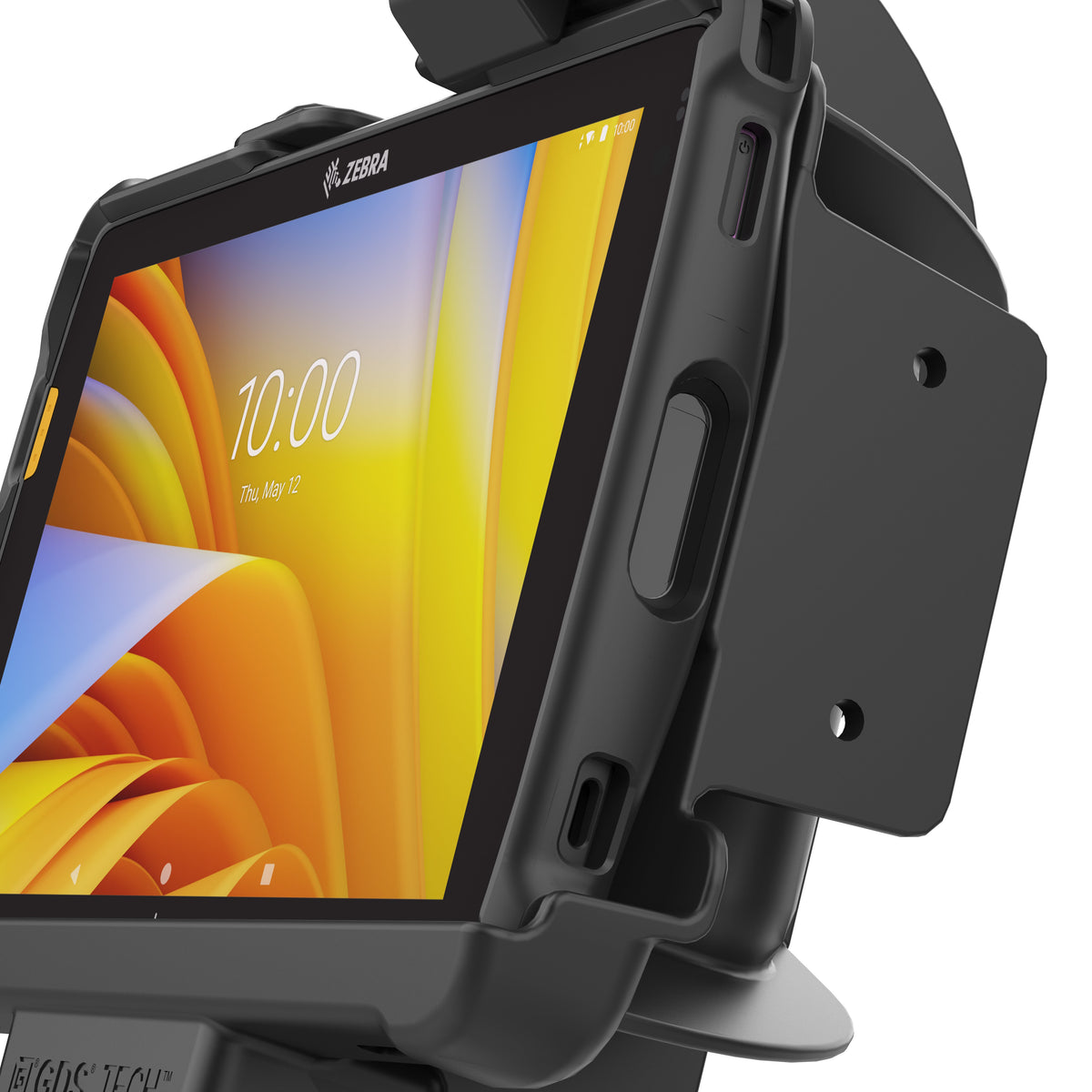

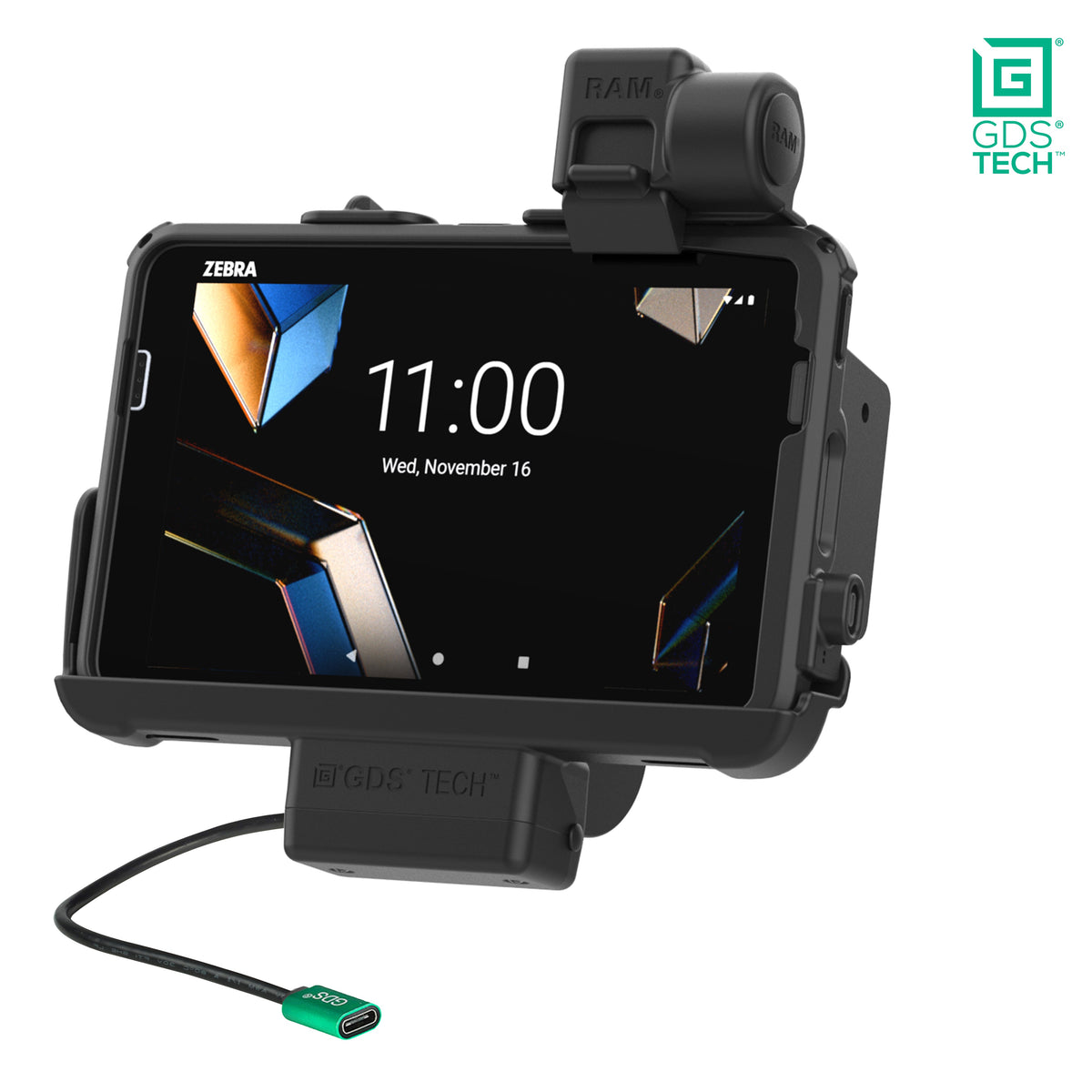

RAM Mounts GDS Powered Dock with Latch (RAM-GDS-DOCKNLL-ZE20PU) is designed for Zebra ET40, ET45 and ET401 8" enterprise tablets in the IntelliSkin Next Gen sleeve and suits vans, forklifts and other mobile workstations. Power comes in through a 215 mm USB-C input cable (5–15 V @ 3 A, 45 W) and reaches the tablet via integrated pogo pins, so it charges whenever it is docked. A top latch holds the tablet firmly and is designed for frequent docking and undocking without wearing out the dock. The scanner stays usable while docked, there is room for the Zebra Expansion Back and PowerPack battery, and the dock mounts to C- and D-size RAM bases with a 4-hole AMPS or 75 × 75 mm VESA pattern.
📦 What's in the box – RAM-GDS-DOCKNLL-ZE20PU
- GDS Powered Dock with Latch – for Zebra ET40/ET45/ET401 8" in IntelliSkin Next Gen, 215 mm USB-C input cable
- Side bracket – for mounting accessories on the built-in 2-hole plate
- Mounting hardware – machine screws (4× #8-32 x 5/8", 2× #8-32 x 1/2", 4× #10-24 x 5/8") and nyloc nuts (6× #8-32, 4× #10-24)
- 2 small cable ties – for tidy cable routing
💡 To get started, you might also consider the IntelliSkin Next Gen sleeve for ET4x 8" (required for docking), a RAM C-size mounting kit with double socket arm and two AMPS bases, and a GDS USB-C PD hardwire charger.
Key Features
- GDS docking for IntelliSkin – form-fit for the ET40/ET45/ET401 8" in IntelliSkin Next Gen; charging through integrated pogo pins
- USB-C power input – 215 mm USB-C input cable; output 5–15 V @ 3 A, 45 W
- Top latch – secures the tablet for frequent docking and undocking and takes the wear off the dock
- Room for accessories – fits the Zebra Expansion Back and PowerPack battery as well as GDS Ergo accessories; scanning works while docked

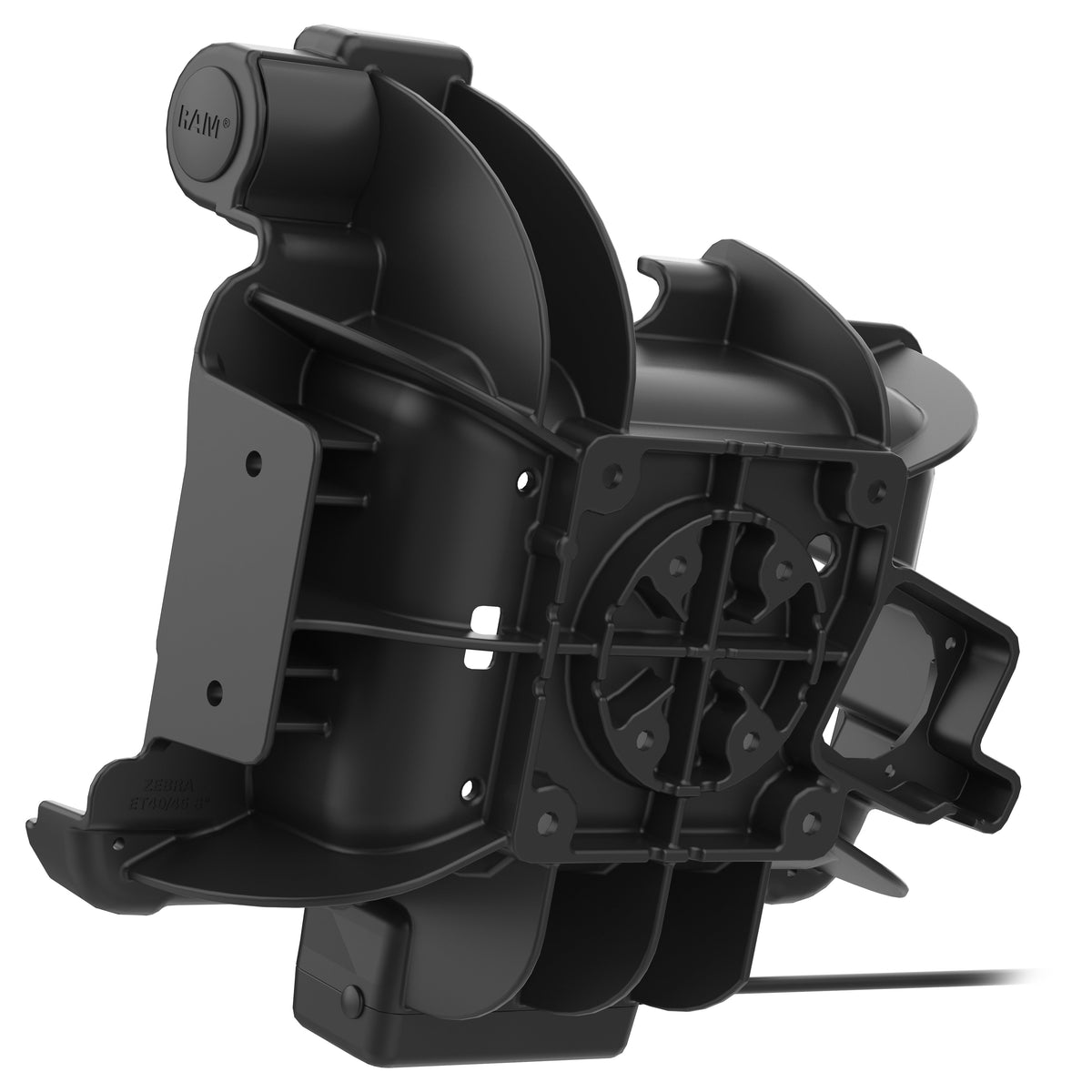

- Mounting & build – C/D-size RAM bases via 4-hole AMPS (30 × 38 mm) or VESA 75 × 75 mm; built-in 2-hole plate for a phone or handheld; high-strength composite, MIL-STD 810G shock and vibration tested; 3-year RAM warranty
Compatibility
- Zebra ET40 8" in IntelliSkin Next Gen (RAM-GDS-SKIN-ZE20C-NG)
- Zebra ET45 8" in IntelliSkin Next Gen (RAM-GDS-SKIN-ZE20C-NG)
- Zebra ET401 8" in IntelliSkin
- C- and D-size RAM bases with 4-hole AMPS pattern (30 × 38 mm)
- VESA 75 × 75 mm
- RAM 2-hole diamond bases (built-in plate)
Technical Specifications
| Part Number | RAM-GDS-DOCKNLL-ZE20PU |
|---|---|
| Product Type | GDS powered vehicle dock (USB-C) |
| Compatible Devices | Zebra ET40, ET45, ET401 8" in IntelliSkin |
| Connection | 4-hole AMPS (30 × 38 mm), VESA 75 × 75 mm; built-in 2-hole plate |
| Locking | Top latch (no key) |
| Power / Charging | USB-C input, 215 mm cable; output 5–15 V @ 3 A, 45 W; pogo-pin charging |
| Material | High-strength composite |
| Weight | 0.64 kg (1.42 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | GDS Powered Dock with Latch, side bracket, mounting hardware, 2 small cable ties |
You will find the Zebra ET401 and more matching accessories in our Zebra ET401 collection, and other rugged tablets under Tablet Terminals. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Locking | Ports / connector | Price | ||
|---|---|---|---|---|---|
 |
RAM-GDS-DOCK-ZE20PD2U | Non-locking | Power + 2× USB-A | 4.326,00 Kč+VATIn Stock | |
 |
RAM-GDS-DOCK-ZE20PDU | Non-locking | Power + USB-A | 4.058,00 Kč+VATIn Stock | |
 |
RAM-GDS-DOCK-ZE20PU | Non-locking | Power only | 2.695,00 Kč+VATIn Stock | |
 |
RAM-GDS-DOCKL-ZE20PD2U | Key-locking | Power + 2× USB-A | 5.295,00 Kč+VATOut of Stock | View |
 |
RAM-GDS-DOCKL-ZE20PDU | Key-locking | Power + USB-A | 5.013,00 Kč+VATOut of Stock | View |
 |
RAM-GDS-DOCKL-ZE20PU | Key-locking | Power only | 4.829,00 Kč+VATOut of Stock | View |
 |
RAM-GDS-DOCKNLL-ZE20PUViewing | Latch | Power only | 3.054,00 Kč+VATOut of Stock |
