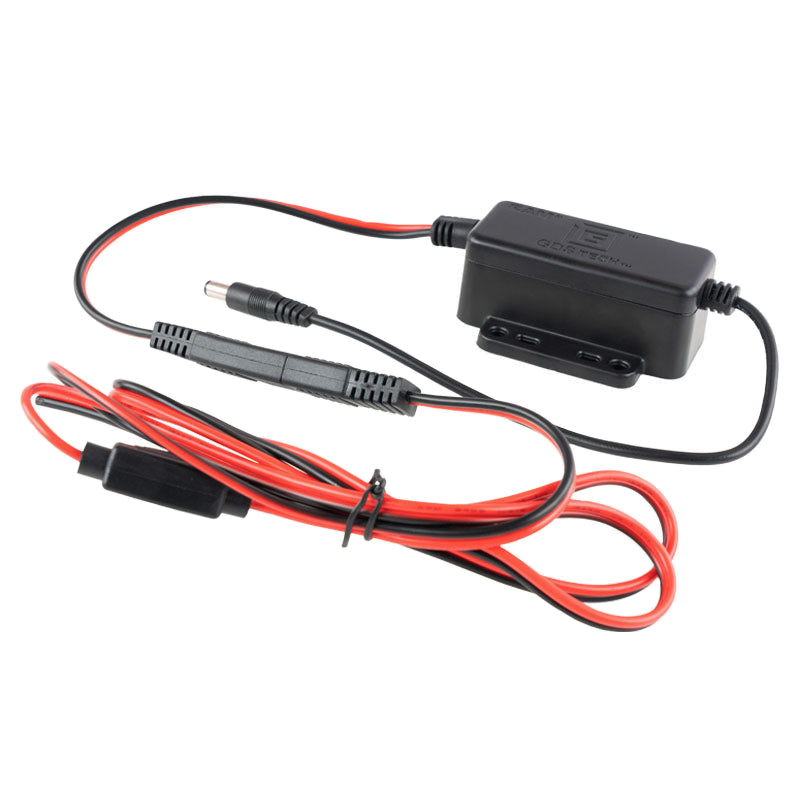

RAM Mounts GDS Hardwire Charger, 24–60 V In / 19 V Out, Male 5.5 mm DC Plug (RAM-GDS-CHARGE-V12U)

RAM Mounts GDS Hardwire Charger, 24–60 V In / 19 V Out, Male 5.5 mm DC Plug (RAM-GDS-CHARGE-V12U) is a modular GDS hardwire charger that converts the 24–60 V DC on-board supply into a regulated 19 V DC for RAM and GDS docks with a female 5.5 mm DC power input. With a 24–60 V DC input range it is designed for forklifts and material-handling vehicles with higher system voltages. The charger is wired to the vehicle once: a 2-pole flat marine quick-disconnect on the 1.2 m input cable lets you unplug it and fit different charger components when you change devices – without rewiring. The short 0.2 m output lead ends in a male 5.5 × 2.5 mm barrel plug that goes straight into the dock.

Key Features

• Regulated 19 V DC output – up to 3.5 A (±300 mV) for docks with a 5.5 mm DC input
• Modular quick-disconnect – unplug at the 2-pole flat marine connector and swap the charger when devices change – no rewiring
• Built-in protection – over-voltage, short-circuit and reverse-polarity protection; SAE J1113-5 load dump; moisture resistant; 3 A inline ATC fuse and 18 AWG copper wire; IP66
• Wide temperature range – operating −10 to +70 °C, storage −40 to +70 °C
• Approvals – FCC, CE, UKCA, IC, RoHS, WEEE, E-Mark and RCM
• 3-year warranty – backed by RAM Mounts

Compatibility

• RAM and GDS docks with a female 5.5 mm DC power input that require 19 V DC
• RAM powered docks for Getac ZX10 (RAM-HOL-GE4P series)
• Vehicle and equipment electrical systems with 24–60 V DC

Technical Specifications
