RAM Mounts GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKF-SAM78CPU)

5.533,00 Kč +VAT
Mount type
GDS Cool-DockGDS Tough-Dock
Locking
Key-lockingLatch
Ports / connector
Power onlyUSB-C 3.1 data
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: Holders
  • Barcode: RAM-GDS-DOCKF-SAM78CPU
RAM Mounts GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE – product photo
RAM MOUNT
RAM Mounts GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKF-SAM78CPU)
5.533,00 Kč +VAT

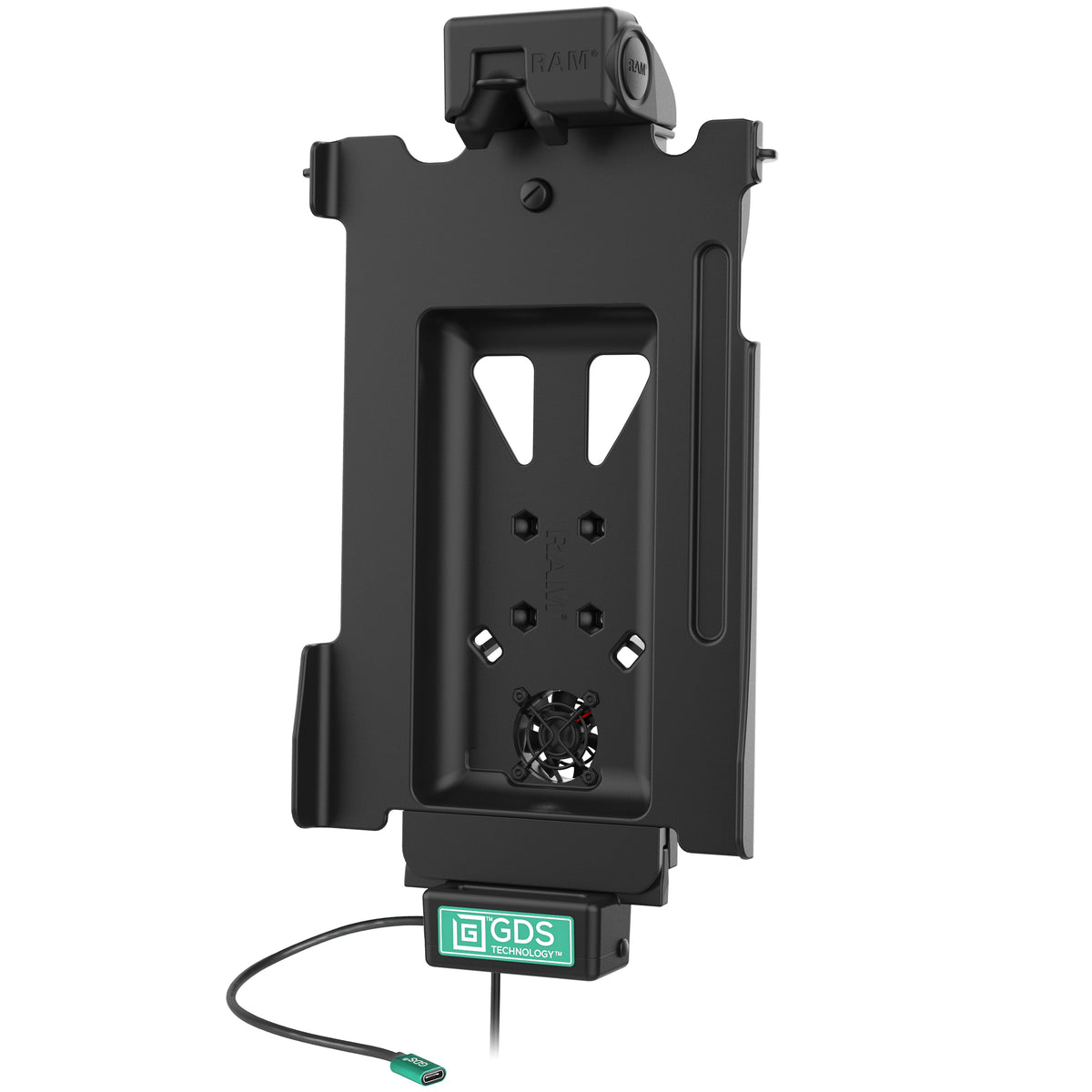

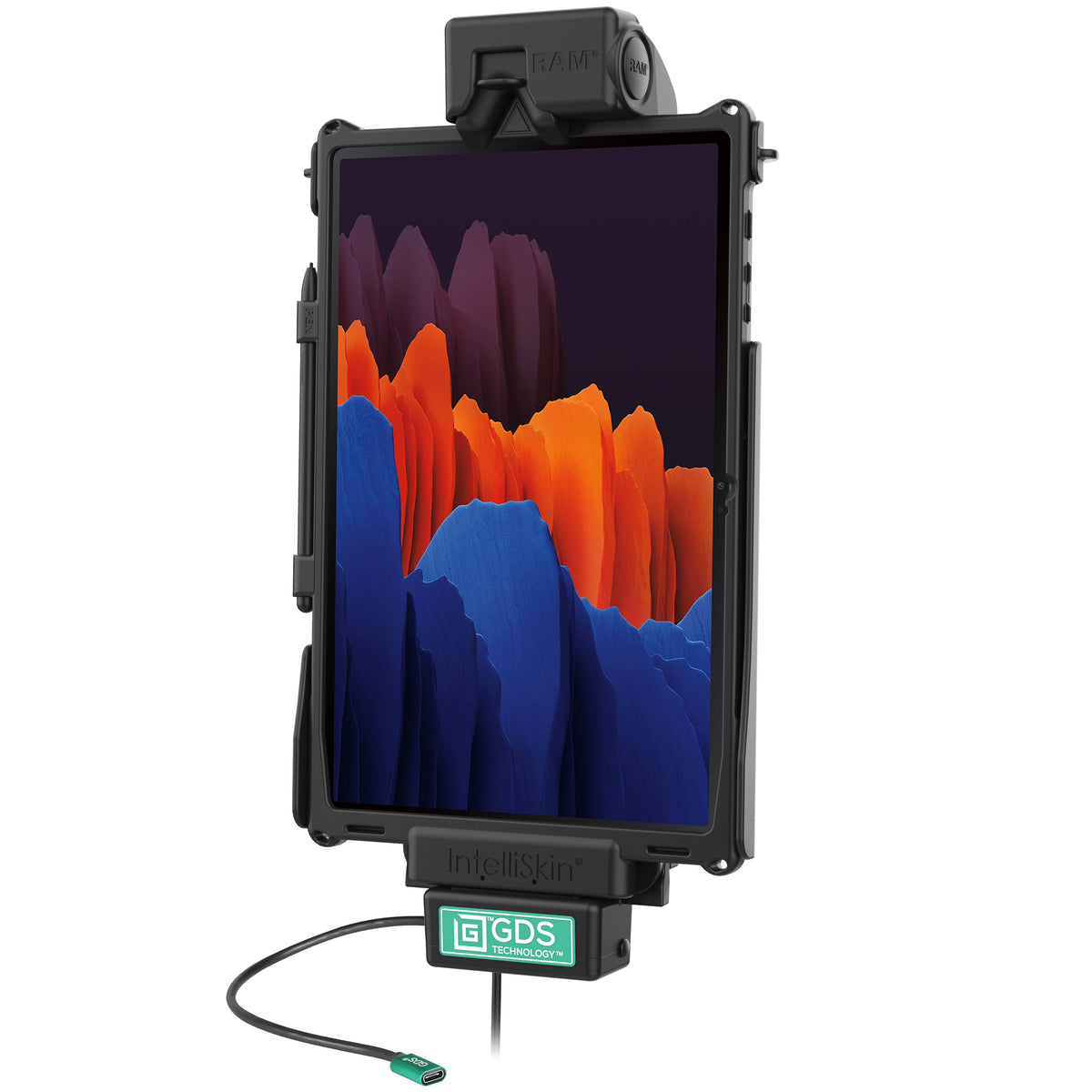

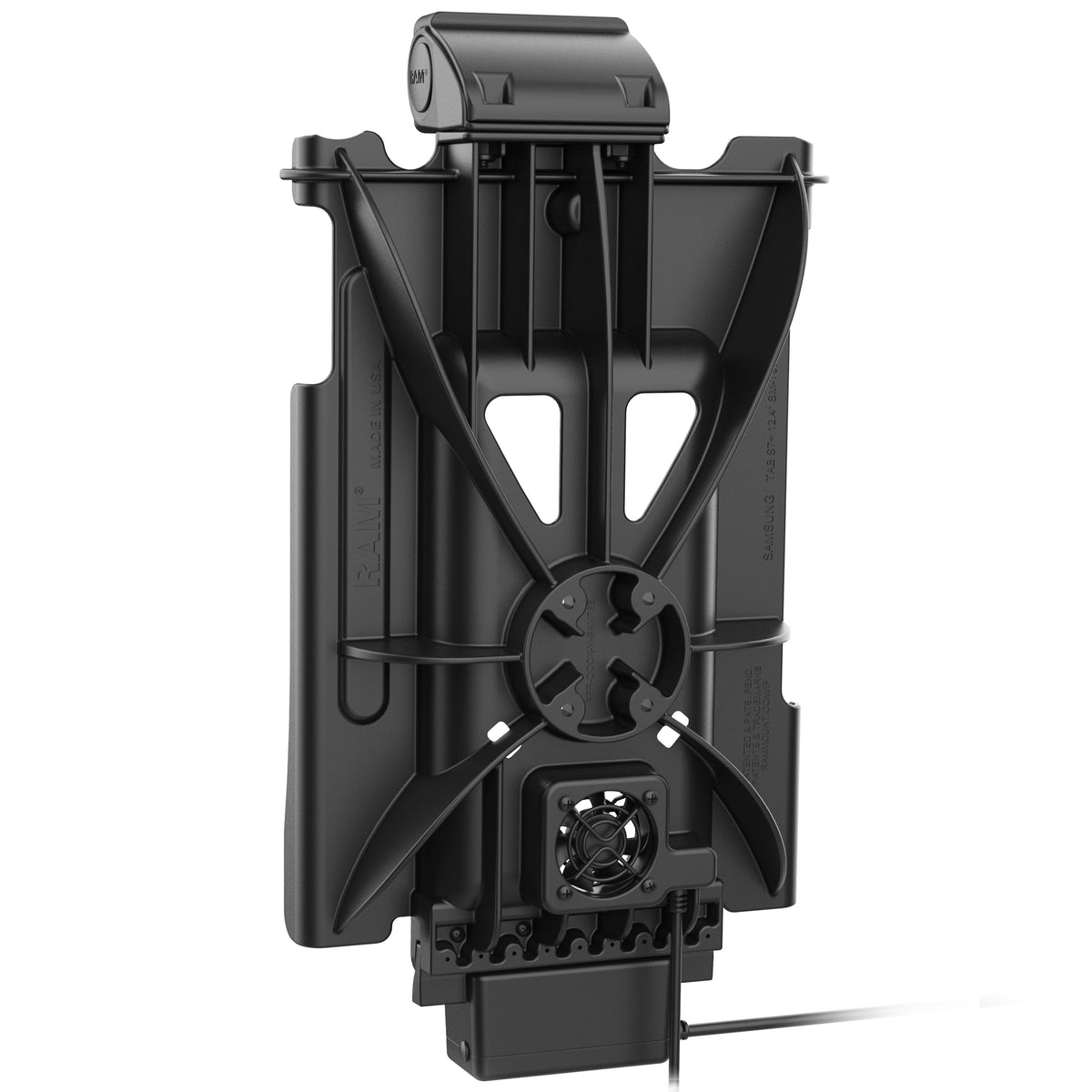

RAM Mounts GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKF-SAM78CPU) is a GDS Cool-Dock: a spring-loaded Tough-Dock vehicle dock upgraded with a built-in 12 V DC axial cooling fan, made for the Samsung Galaxy Tab S10+, Tab S9+, Tab S9 FE+, Tab S8+, Tab S7+ 12.4" (SM-T970) and Tab S7 FE (SM-T736B) in an IntelliSkin Next Gen protective sleeve. Integrated pogo-pin contacts provide high-speed charging as soon as the tablet is docked; power comes in through a USB-C connector in the bottom docking cup. The fan is wired via a 2.2 m hardwire cable with SAE quick disconnect and draws heat away from the tablet in hot cabs.

📦 What's in the box – RAM-GDS-DOCKF-SAM78CPU

  • GDS Cool-Dock with Fan – for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE in IntelliSkin Next Gen, built-in 12 V DC fan with 2.2 m hardwire cable
  • Mounting hardware – machine screws (4× #8-32 x 5/8") and nyloc nuts (4× #8-32)

💡 To get started, you might also consider the IntelliSkin Next Gen sleeve for Tab S10+, S9+ & S9 FE+, a B-size AMPS ball base with a double socket arm, and a USB-C PD hardwire charger for 10–30 V or 30–64 V vehicle systems.

View accessories →

Key Features

  • Spring-loaded GDS dock – holds the Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE in an IntelliSkin Next Gen sleeve; works with the GDS Hand-Stand hand strap and kickstand

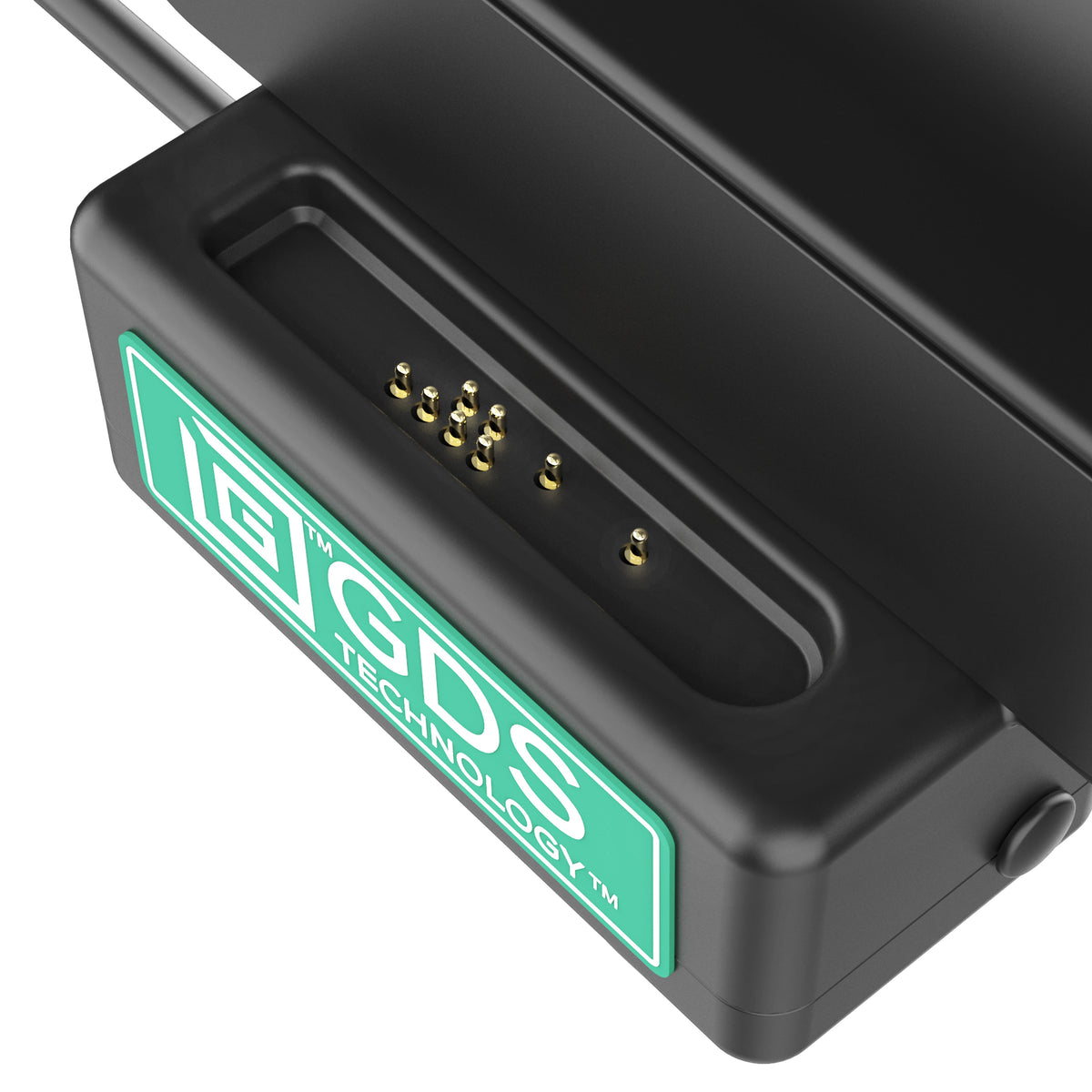

  • High-speed charging – pogo-pin contacts, USB-C input in the docking cup; output 5–20 V DC / 3 A / 60 W

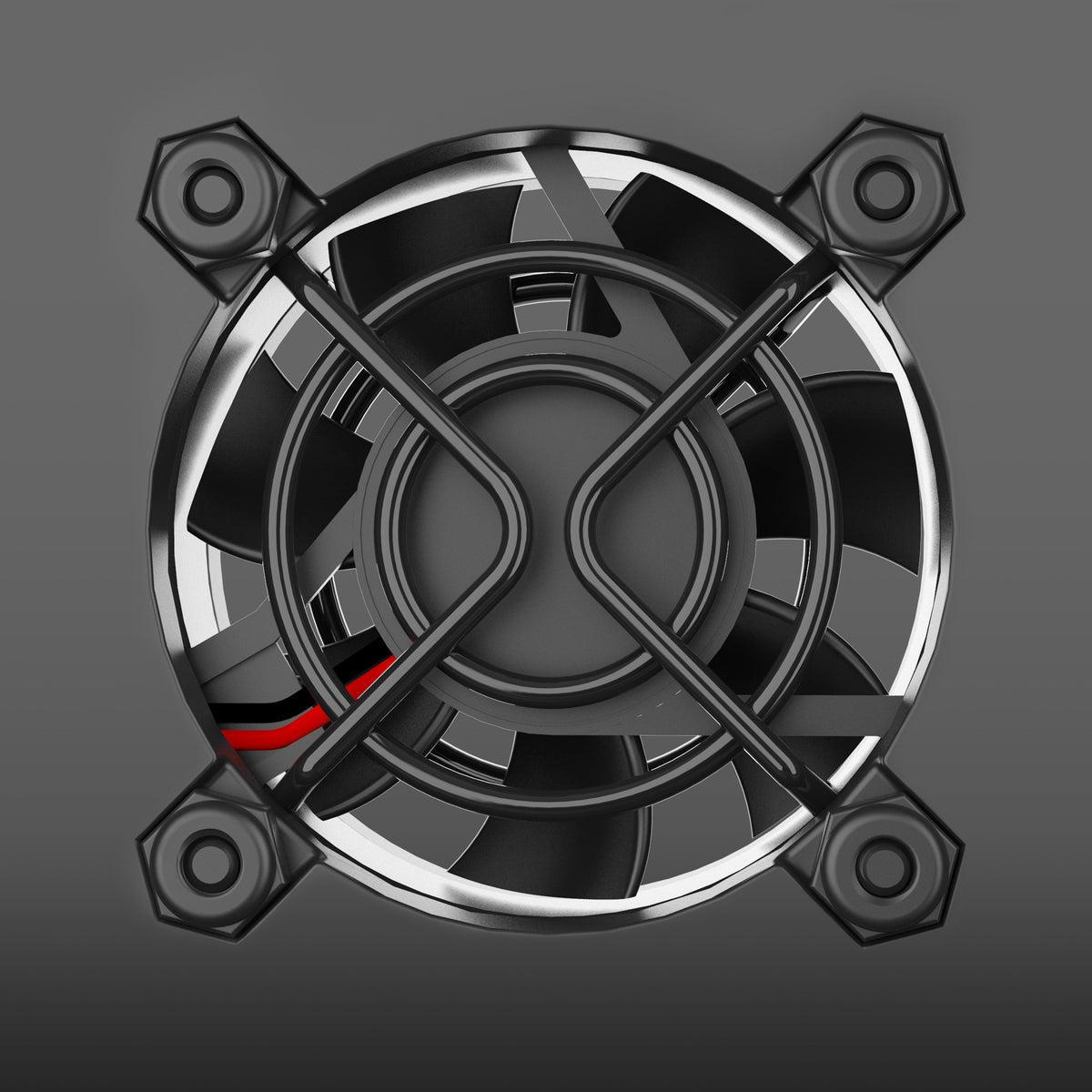

  • Built-in cooling fan – 12 V DC axial fan with 2.2 m hardwire cable and SAE quick disconnect
  • 4-hole AMPS pattern – 30 × 38 mm (1.181" × 1.496"); connects to RAM ball-and-socket mounts via a 4-hole AMPS ball adapter
  • Built to last – high-strength composite, 3-year RAM warranty

Compatibility

  • Samsung Galaxy Tab S10+ – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S9+ – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S9 FE+ – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S8+ – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S7+ 12.4" (SM-T970) – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S7 FE (SM-T736B) – in IntelliSkin Next Gen sleeve
  • RAM ball-and-socket systems via a 4-hole AMPS ball adapter (30 × 38 mm)

Technical Specifications

Part Number RAM-GDS-DOCKF-SAM78CPU
Product Type GDS Cool-Dock vehicle dock with cooling fan
Compatible Devices Samsung Galaxy Tab S10+, Samsung Galaxy Tab S9+, Samsung Galaxy Tab S9 FE+, Samsung Galaxy Tab S8+, Samsung Galaxy Tab S7+ 12.4" (SM-T970), Samsung Galaxy Tab S7 FE (SM-T736B)
Connection 4-hole AMPS, 30 × 38 mm (1.181" × 1.496"); requires a 4-hole AMPS ball adapter
Locking Spring-loaded top latch (non-locking)
Power / Charging USB-C input; output 5–20 V DC / 3 A / 60 W; IntelliSkin Next Gen sleeve required; fan: 12 V DC, 2.2 m hardwire cable with SAE quick disconnect
Material High-strength composite
Weight 0.82 kg (1.8 lb)
Warranty 3 years (RAM Mounts)
In the Box GDS Cool-Dock with Fan, mounting hardware

More rugged devices for field and fleet work are available in our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberMount typeLockingPorts / connectorPrice
RAM Mounts GDS Tough-Dock for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCK-SAM78CPU) RAM-GDS-DOCK-SAM78CPUGDS Tough-DockLatchPower only4.419,00 Kč+VATIn Stock
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCK-SAM78CU) RAM-GDS-DOCK-SAM78CUGDS Tough-DockLatchUSB-C 3.1 data5.002,00 Kč+VATOut of Stock View
RAM Mounts GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKF-SAM78CPU) RAM-GDS-DOCKF-SAM78CPUViewingGDS Cool-DockLatchPower only5.533,00 Kč+VATOut of Stock
RAM Mounts Locking GDS Tough-Dock for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKL-SAM78CPU) RAM-GDS-DOCKL-SAM78CPUGDS Tough-DockKey-lockingPower only4.573,00 Kč+VATOut of Stock View
RAM Mounts Locking GDS Tough-Dock with USB-C 3.1 for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKL-SAM78CU) RAM-GDS-DOCKL-SAM78CUGDS Tough-DockKey-lockingUSB-C 3.1 data5.397,00 Kč+VATOut of Stock View
RAM Mounts Locking GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKLF-SAM78CPU) RAM-GDS-DOCKLF-SAM78CPUGDS Cool-DockKey-lockingPower only5.538,00 Kč+VATOut of Stock View

Accessories

ProductPrice
RAM Mounts IntelliSkin Next Gen Protective Sleeve for Samsung Galaxy Tab S10+, S9+ & S9 FE+ (RAM-GDS-SKIN-SAM87-NG) RAM Mounts IntelliSkin Next Gen Protective Sleeve for Samsung Galaxy Tab S10+, S9+ & S9 FE+RAM-GDS-SKIN-SAM87-NG2.230,00 Kč+VATIn Stock
RAM Mounts Ball Adapter with AMPS Plate, B-Size (RAM-B-347U) RAM Mounts Ball Adapter with AMPS Plate, B-SizeRAM-B-347U258,00 Kč+VATIn Stock
RAM Mounts Double Socket Arm, B-Size, Medium 95 mm (RAM-B-201U) RAM Mounts Double Socket Arm, B-Size, Medium 95 mmRAM-B-201U497,00 Kč+VATIn Stock
RAM Mounts Double Ball Mount with Two Round AMPS Plates, B-Size, Long Arm (RAM-B-101U-C) RAM Mounts Double Ball Mount with Two Round AMPS Plates, B-Size, Long ArmRAM-B-101U-C1.144,00 Kč+VATIn Stock
RAM Mounts Round Plate with Ball, C-Size, AMPS Pattern (RAM-202U) RAM Mounts Round Plate with Ball, C-Size, AMPS PatternRAM-202U409,00 Kč+VATIn Stock
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mm (RAM-201U) RAM Mounts Double Socket Arm, C-Size, Medium, 145 mmRAM-201U728,00 Kč+VATIn Stock
RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 10–30 V Input (RAM-GDS-CHARGE-V3C-3U) RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 10–30 V InputRAM-GDS-CHARGE-V3C-3U3.362,00 Kč+VATIn Stock
RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 30–64 V Input (RAM-GDS-CHARGE-V3CH-2U) RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 30–64 V InputRAM-GDS-CHARGE-V3CH-2U3.157,00 Kč+VATIn Stock
