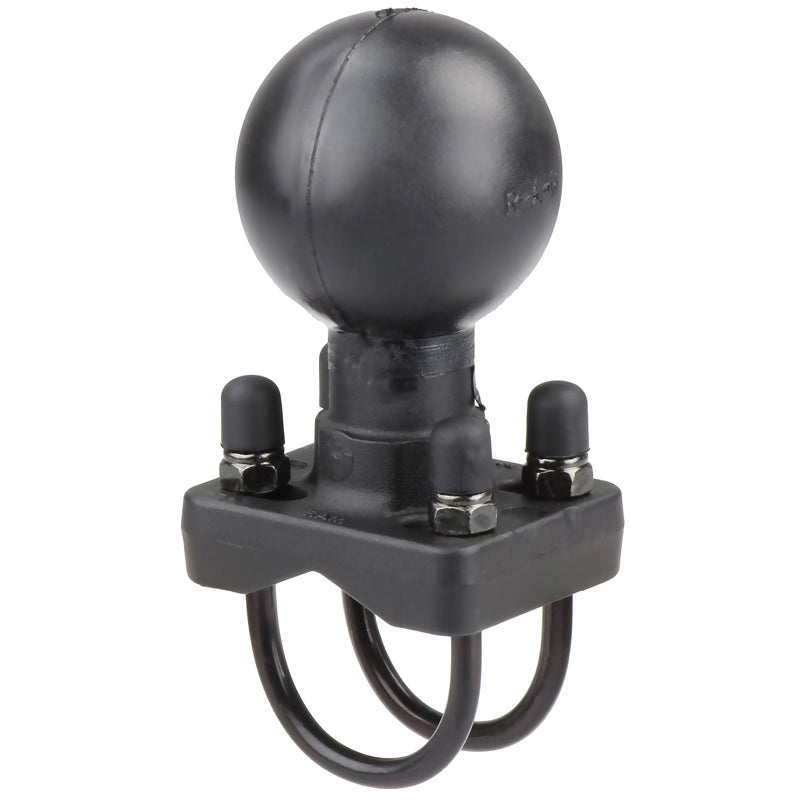

RAM Mounts Double U-Bolt Ball Base for 1.25–1.5" Rails, D-Size (RAM-D-235-1U)

RAM Mounts Double U-Bolt Ball Base (RAM-D-235-1U) clamps around round rails, pipes and tubing 1.25–1.5" (31.8–38.1 mm) in diameter and carries a D-size 2.25" (57 mm) rubber ball for any RAM D-size double socket arm. Two zinc-coated 1/4"-20 U-bolts with nyloc nuts hold it on the rail, and rubber caps are included. It is a no-drill way to mount tablets, terminals and device holders on forklift overhead guards, roll cages, handrails, carts and machine guards. Powder-coated marine-grade aluminium keeps it durable under vibration and outdoors.

Key Features

• Double U-bolt clamp – two zinc-coated U-bolts for rails 1.25–1.5" (31.8–38.1 mm) in diameter
• D-size ball – 2.25" (57 mm) rubber ball fits any RAM D-size double socket arm; the ball-and-socket joint allows near-infinite adjustment
• Load rating – 6 lb (2.7 kg) standard use, 5 lb (2.3 kg) heavy-duty use
• Rugged build – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• Round rails, pipes and tubing 1.25–1.5" (31.8–38.1 mm) in diameter
• All RAM D-size (2.25") double socket arms and D-size ball components

Technical Specifications
