RAM Mounts Ball Base with 1.5 × 4.5" 4-Hole Pattern, D-Size (RAM-D-202U-25)

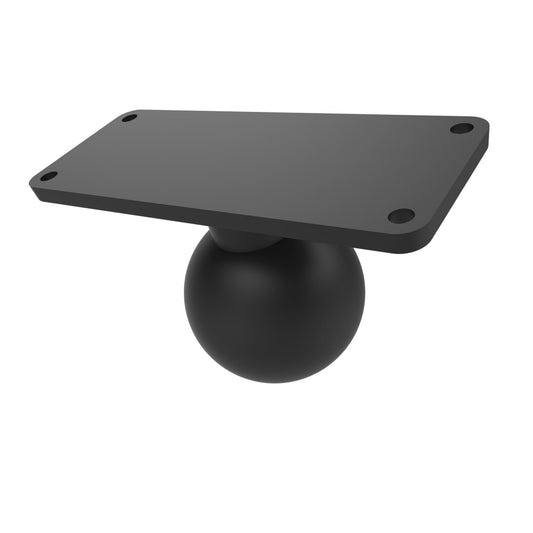

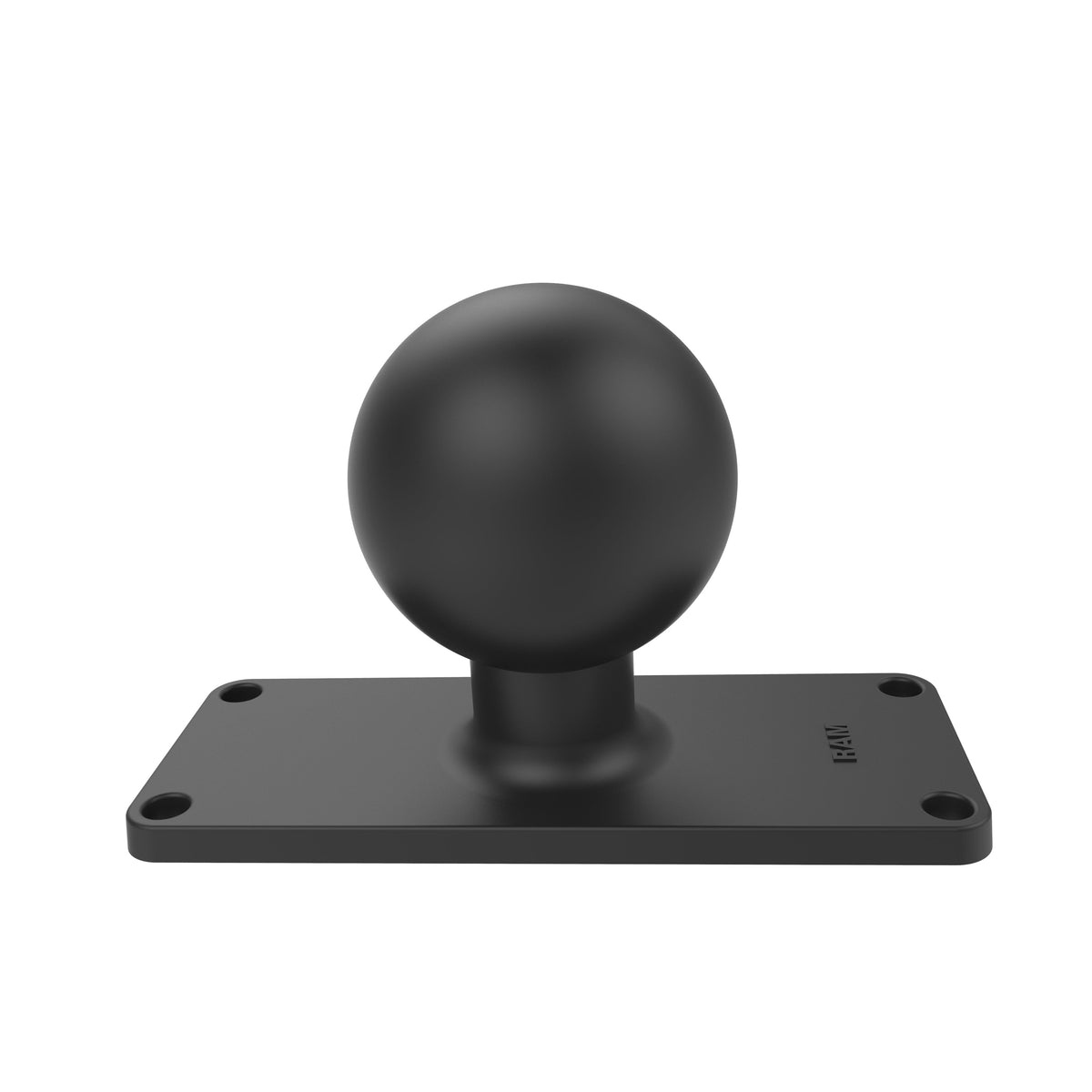

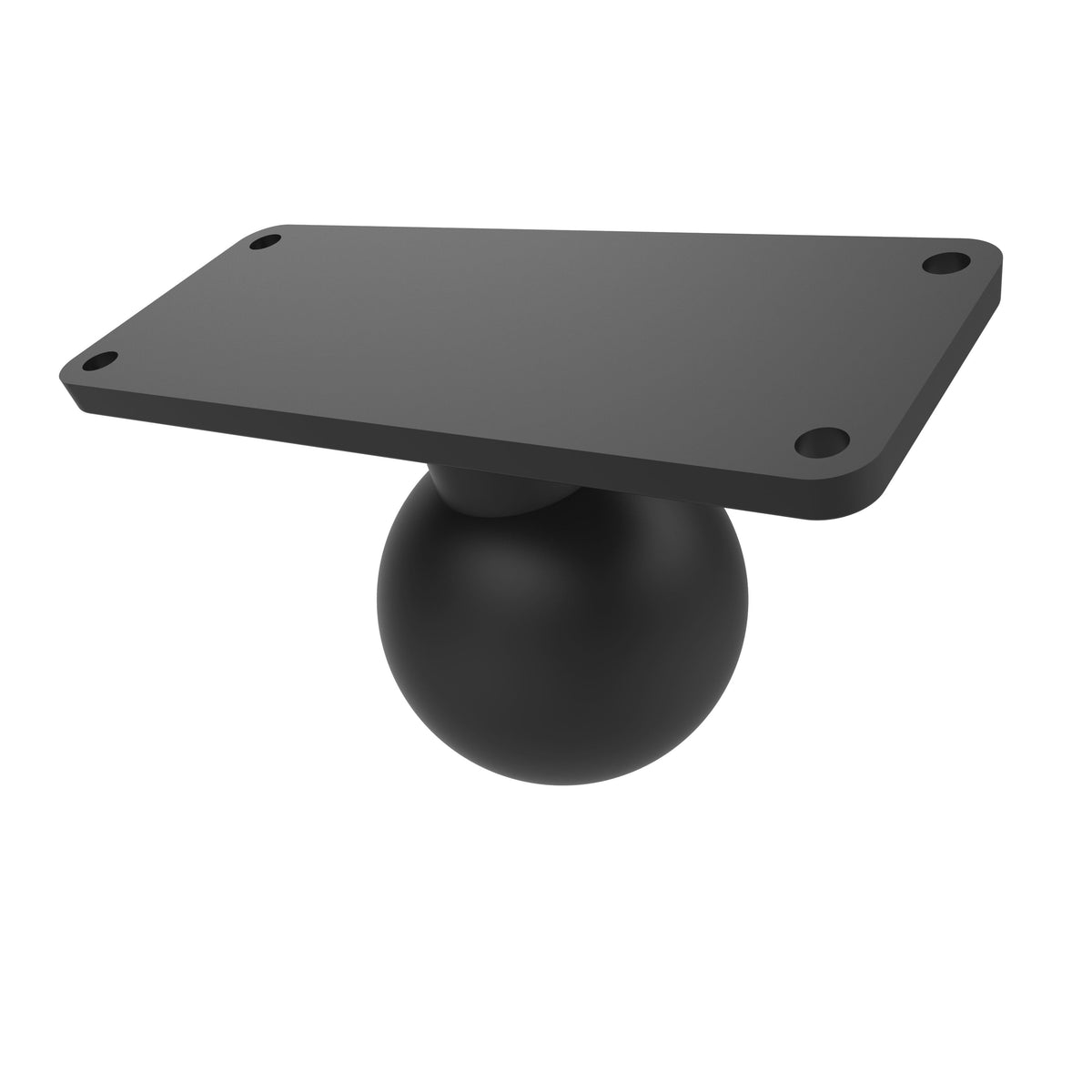

RAM Mounts Ball Base with 1.5 × 4.5" 4-Hole Pattern (RAM-D-202U-25) is a 51 × 127 mm (2 × 5") rectangular aluminium plate with a D-size 2.25" (57 mm) rubber ball that fits any RAM D-size double socket arm. Its four holes are spaced 38 × 114 mm (1.5 × 4.5") centre to centre, ready for drill-down installation on flat surfaces or on devices and brackets with the same pattern. Powder-coated marine-grade aluminium keeps it durable in vehicles, on equipment and outdoors.

Key Features

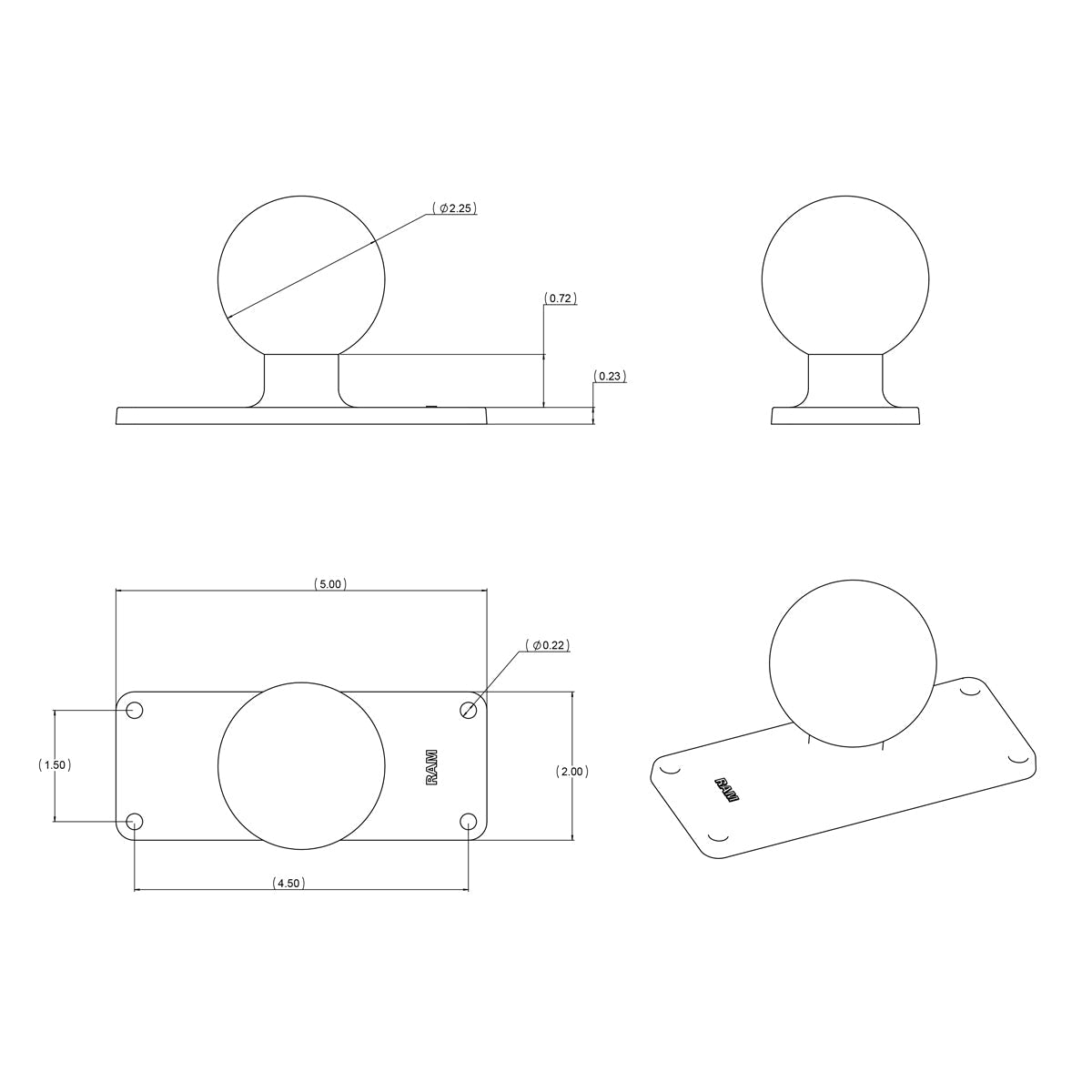

• Rectangular plate – 51 × 127 mm (2 × 5") with a 4-hole pattern of 38 × 114 mm (1.5 × 4.5") centre to centre
• D-size ball – 2.25" (57 mm) rubber ball fits any RAM D-size double socket arm; the ball-and-socket joint allows near-infinite adjustment
• Load rating – 6 lb (2.7 kg) standard use, 5 lb (2.3 kg) heavy-duty use
• Rugged build – powder-coated marine-grade aluminium, backed by RAM's lifetime warranty

Compatibility

• Devices and brackets with a 38 × 114 mm (1.5 × 4.5") 4-hole pattern
• Flat surfaces for drill-down installation
• All RAM D-size (2.25") double socket arms and D-size ball components

Technical Specifications
