Elo Pay 7" Payment POS Terminal, Android 12, 4 GB / 64 GB, with Z70 POS Stand & Hub (E814473)

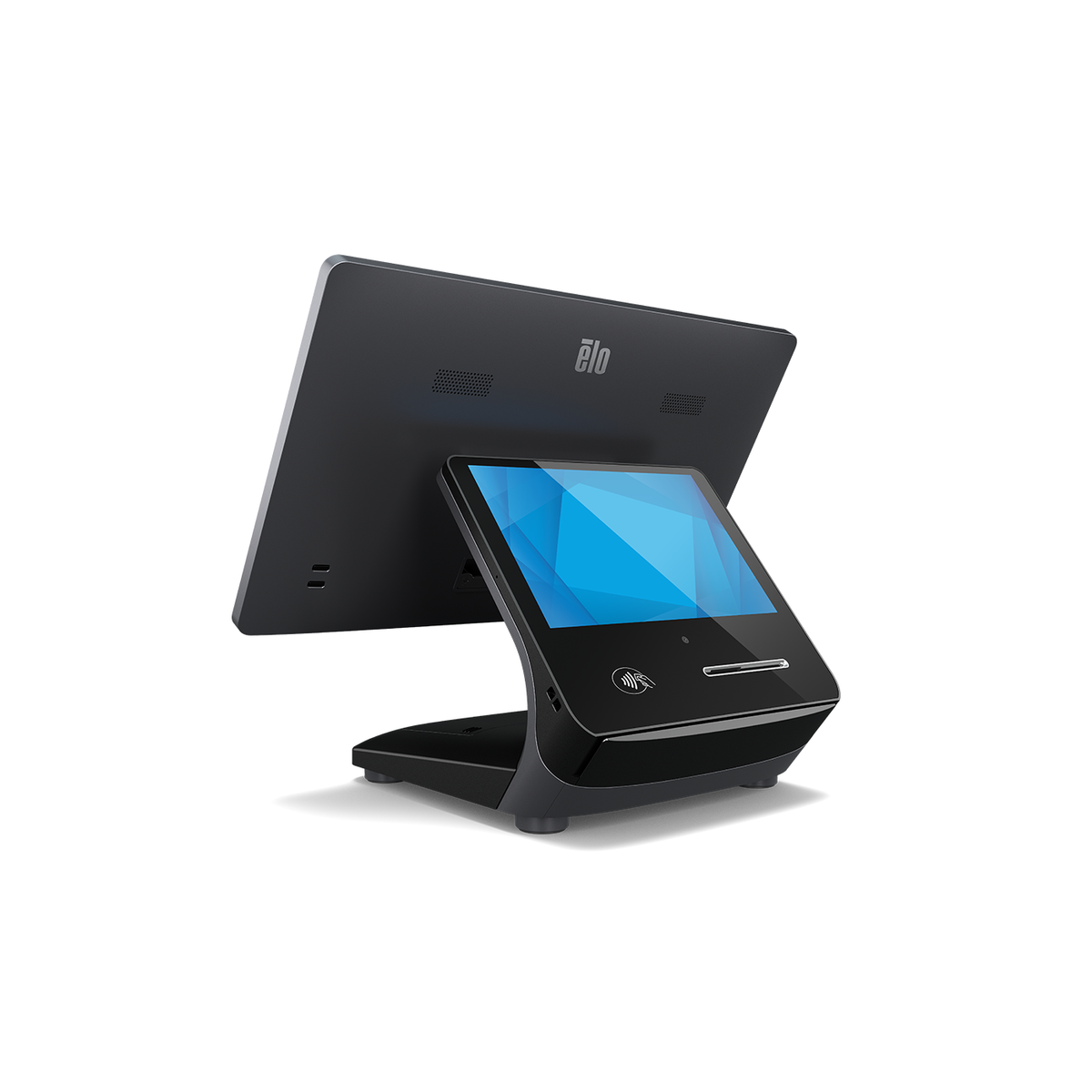

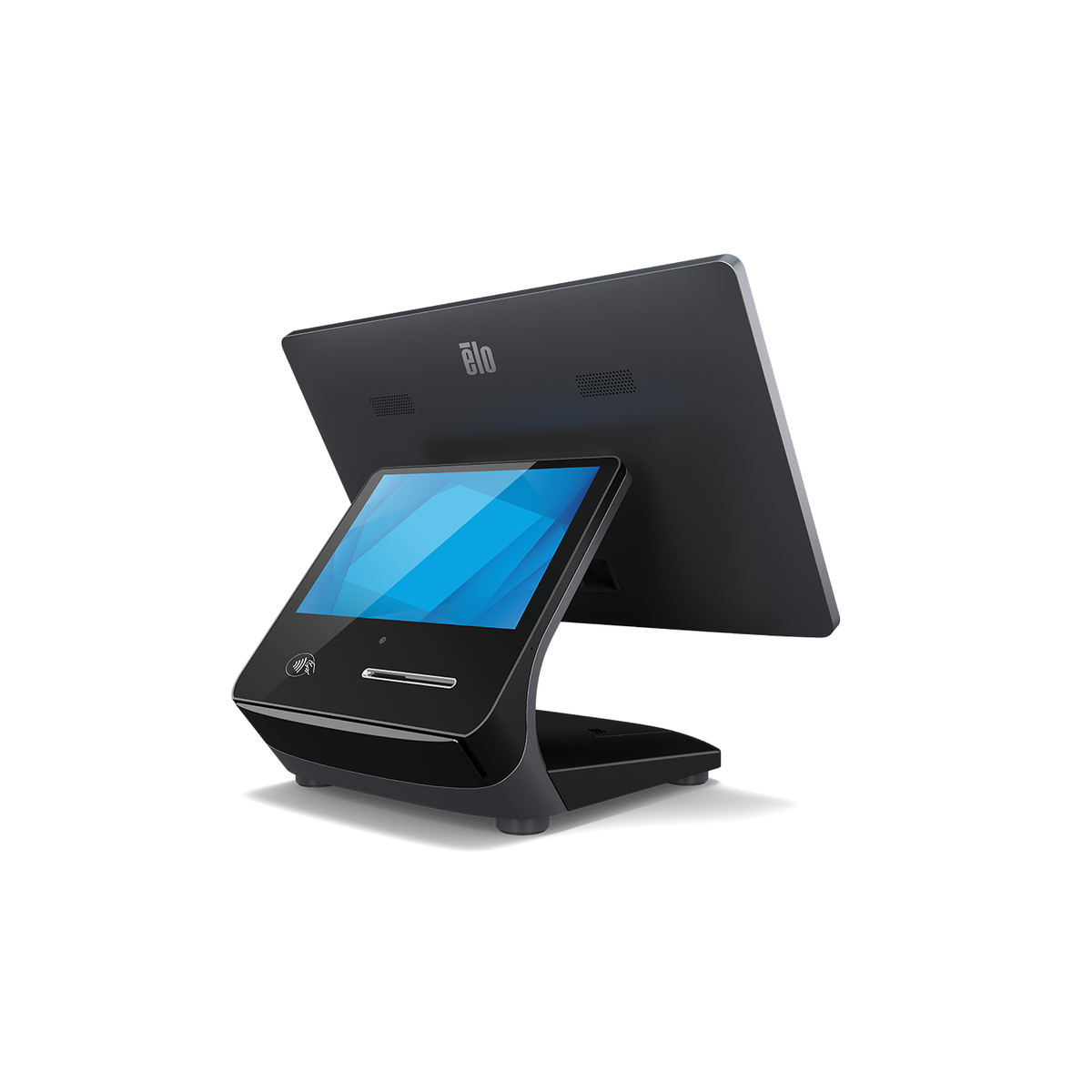

The Elo Pay 7" is a compact Android 12 point-of-sale terminal with payments built into the device: an EMV contactless reader (ISO 14443 A/B, MiFare, ISO 18092), an EMV chip-card reader with PIN-on-glass and a 3-track magnetic stripe reader, certified to EMV L1 and L2. A 7" optically bonded Full HD (1920 × 1080) touchscreen with Gorilla Glass and water rejection, a Qualcomm Snapdragon 660 octa-core processor with 4 GB RAM and 64 GB storage (plus microSD), Wi-Fi 5 and Bluetooth 5.0 make it a fast all-in-one for counters where space is tight. Its IP54-rated front, programmable payment LEDs and 5 MP camera suit cafés, quick-service restaurants, boutiques, salons and pop-up stores that want one device for ordering and payment. This version, E814473, mounts the Elo Pay 7" on the Z70 POS stand with integrated hub (DC-in, RJ45 LAN, 4 × USB-A, USB-C and RJ12 cash-drawer port) and ships with a 120 W power supply and 1.8 m USB-C cable – ready to drive a separate Elo merchant monitor (sold separately).

Key Features

• Payments in the device – EMV contactless, chip & PIN-on-glass and 3-track MSR; EMV L1/L2, Mastercard, Amex and Discover contactless certified
• 7" Full HD Gorilla Glass display – 1920 × 1080, 400 nits, optically bonded, 10-point PCAP with water rejection
• Snapdragon 660 & Android 12 – octa-core 2.2 GHz, 4 GB / 64 GB + microSD, Google Play services and EloView management
• Modular configurations – standalone, on the Z70 POS stand with hub, or in the printer stand – plus VESA mount kit and small/large I/O hubs
• Built for busy counters – IP54 front, programmable RGBW payment LEDs, 5 MP camera, dual microphones and 1 W speaker
• Wireless & compact – Wi-Fi 5 (2×2 MU-MIMO), Bluetooth 5.0 and a 616 g terminal measuring 176 × 169 × 43 mm

Ideal Applications

• Cafés, coffee bars and bakeries
• Quick-service restaurants and food trucks
• Boutiques, salons and service businesses
• Pop-up stores, markets and events

Technical Specifications

Choose the standalone terminal for maximum flexibility, the Z70 POS stand version to build a full POS with a merchant monitor and cash drawer, or the printer stand version for an all-in-one payment and receipt station. The versions table above lists every configuration we offer in this family. Explore all POS PCs in our store, and contact us for volume pricing, project quotes or help choosing the right peripherals.
