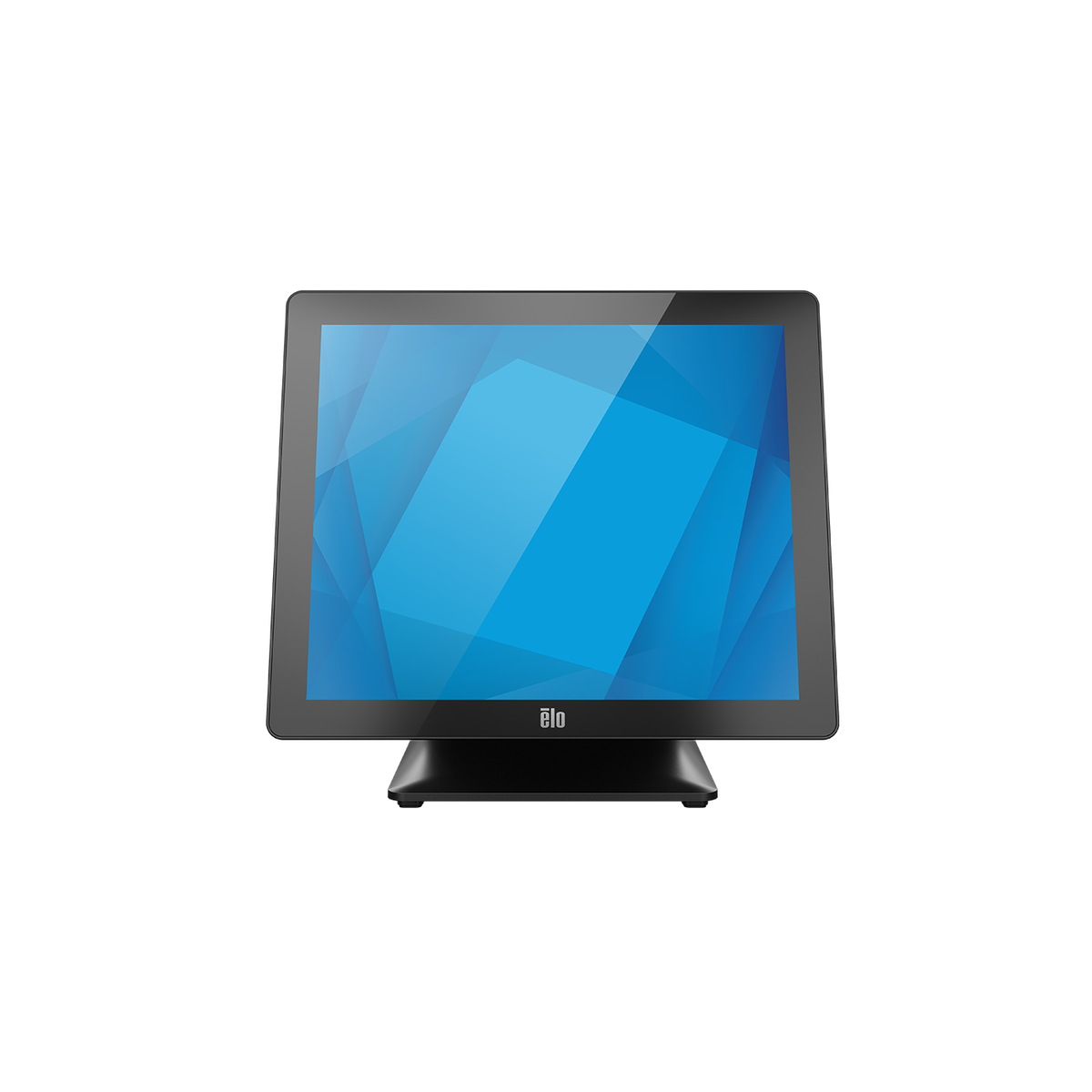

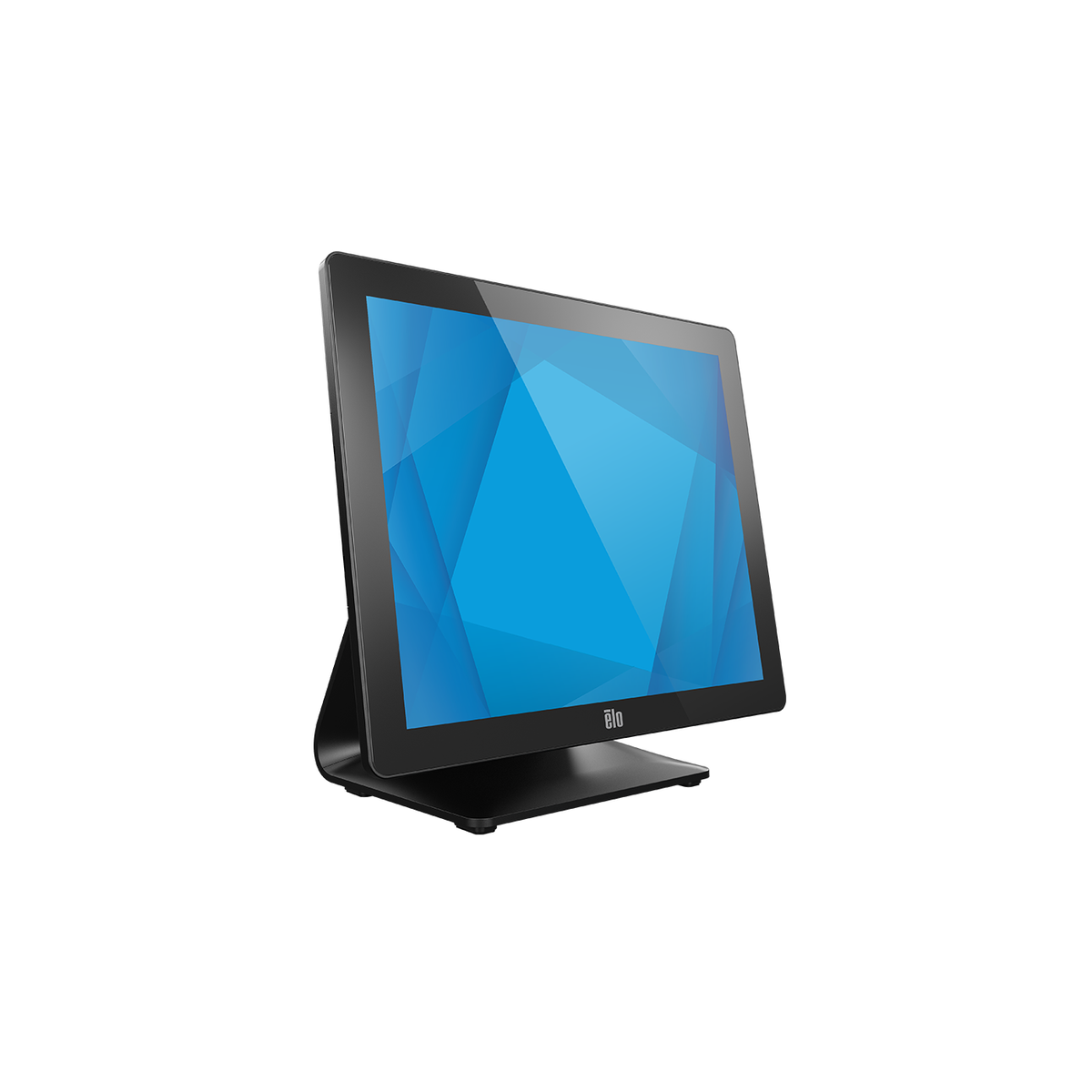

Elo I-Series 3 17" Touch Computer, Intel Core i5, 8 GB / 128 GB, Windows 10 IoT, With Stand (E709349)

The Elo I-Series 3 with Intel 17" is a fanless, modular all-in-one touch computer built for busy POS counters, self-service kiosks, kitchen displays and customer-facing applications in retail, hospitality and quick-service restaurants. It pairs a 5:4 1280 × 1024 TouchPro PCAP touchscreen (10-point, IP54-sealed) with 12th-gen Intel processors, DDR5 memory, NVMe storage, Wi-Fi 6E and Bluetooth 5.3, and expands easily with snap-on Elo Edge Connect peripherals. This version, E709349, comes with an Intel Core i5-1245UL processor, 8 GB DDR5 RAM and a 128 GB NVMe SSD, with Windows 10 IoT Enterprise LTSC preinstalled. It is supplied on the integrated stand with expanded I/O – powered USB, a cash-drawer port and anti-glare glass. The 180 W power supply and power cords are included.

Key Features

• Fanless 12th-gen Intel performance – Celeron 7305L up to Core i7-1265UL (vPro on i5/i7), silent operation and a demonstrated 50,000-hour MTBF
• Built for the counter – 17" TouchPro PCAP with 10-point touch and an IP54 front sealed to the bezel and LCD – easy to clean and spill-resistant
• Modular I/O – the integrated stand adds 24 V and 2 × 12 V powered USB plus a 12/24 V cash-drawer port; full-function USB-C with DisplayPort drives a second or customer-facing display
• Elo Edge Connect – four micro-USB ports on the edges for snap-on MSR, barcode scanner, fingerprint reader, RFID, webcam or status light
• Fast connectivity – Wi-Fi 6E (2.4/5/6 GHz), Bluetooth 5.3 and Gigabit Ethernet
• Upgradeable and secure – DDR5-4800 in two SO-DIMM slots (up to 64 GB), M.2 NVMe SSD, TPM 2.0 and Intel AMT on i5/i7 models
• 3-year Elo warranty – extendable to 5 years or with advance unit replacement

Ideal Applications

• Point of sale – checkout and order-taking in retail stores, restaurants, cafés and bars
• Self-service kiosks – self-ordering, self-checkout, ticketing and check-in
• Kitchen display systems – order routing and bump screens in QSR and hospitality kitchens
• Information and clienteling – price checkers, endless aisle, wayfinding and loyalty sign-up
• Front desk and back office – hotel reception, healthcare check-in, ticket offices and light industrial HMI

Technical Specifications

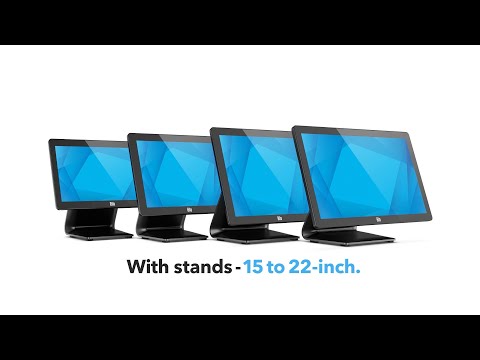

Choosing the right version: the Elo I-Series 3 with Intel comes in 15" to 23.8" sizes with Celeron, Core i3, i5 or i7 processors, with or without stand and with or without Windows. Choose Celeron for single-application POS or kiosk use, Core i3/i5 for multitasking POS and kitchen display, and Core i7 for demanding workloads; pick a version with stand for countertop POS with cash drawer and receipt printer, and the version without stand for wall, pole or kiosk mounting. Browse all POS PCs or contact us for volume pricing and project configurations.
