Elo EloPOS 15" 4:3 POS System, Intel Celeron, 4 GB / 128 GB, Windows 10 IoT, Stand (E931524)

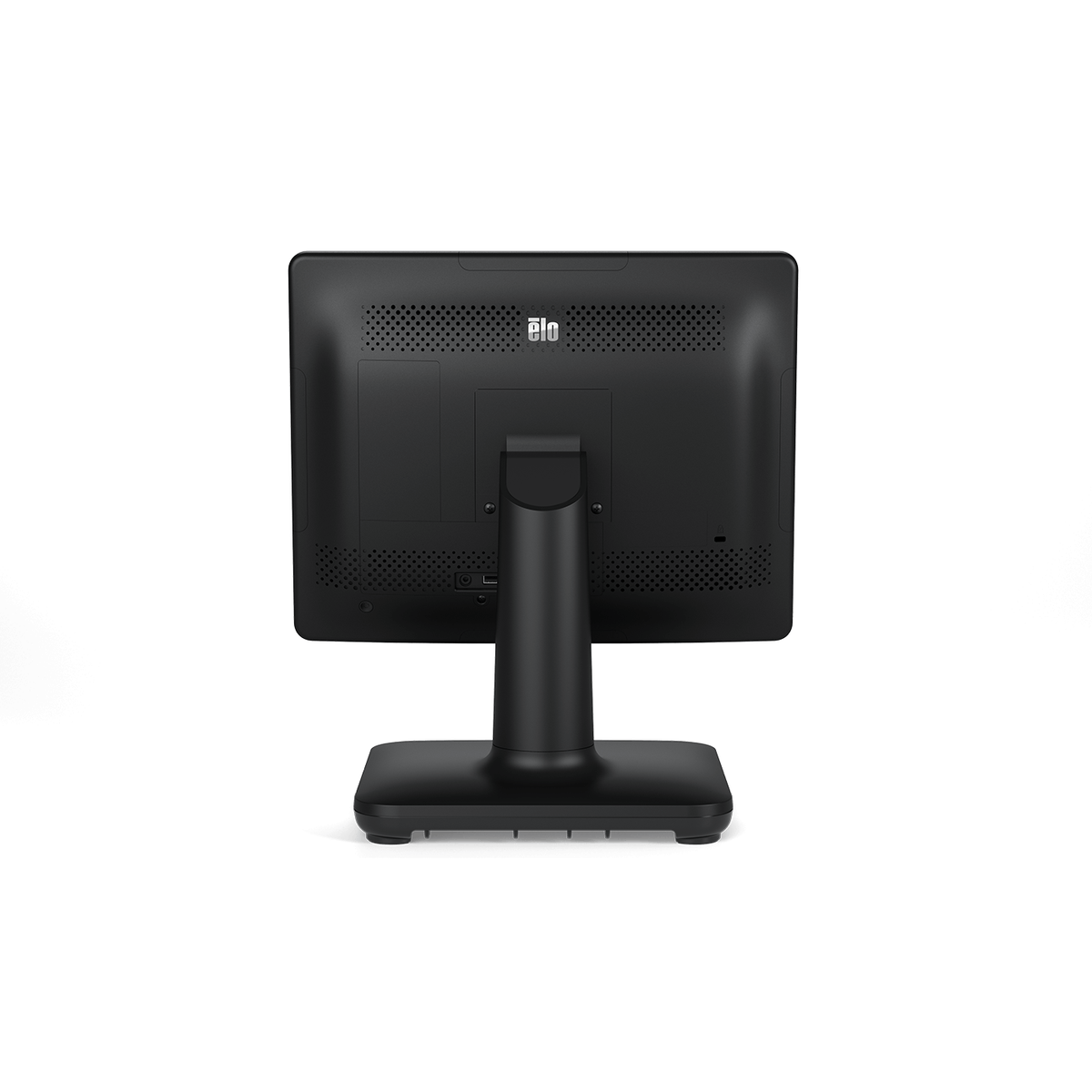

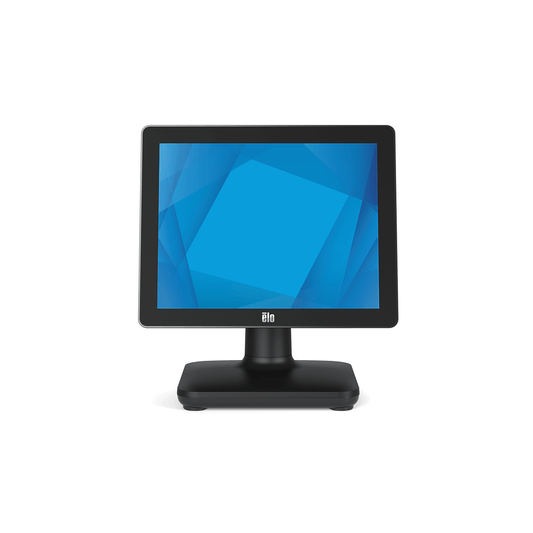

The Elo EloPOS 15" POS System is a modular, Windows-ready point-of-sale terminal that combines a 15-inch 4:3 TouchPro PCAP touchscreen, an integrated Intel PC and a dedicated I/O hub in one sleek, cable-managed unit. The classic 4:3 format runs legacy POS applications designed for 1024 × 768 without scaling – an easy upgrade for existing checkouts. It offers 10-point touch, Wi-Fi 5 and Bluetooth 5.0, all classic POS connections (serial, powered USB, cash drawer port) plus Elo Edge Connect ports for snap-on peripherals such as a magnetic stripe reader (MSR), barcode scanner or fingerprint reader. This version, E931524, features an XGA 1024 × 768 display, the Intel Celeron J4125 (4 cores, up to 2.7 GHz) processor, 4 GB of DDR4 RAM and a 128 GB M.2 SSD. Windows 10 IoT Enterprise comes preinstalled. It is supplied with the desktop I/O hub stand, ready to use on the counter.

Key Features

• Modular all-in-one design – touchscreen, Intel PC and I/O hub in one compact, cable-managed unit with serviceable SSD and memory
• 15" PCAP touchscreen – XGA 1024 × 768, 4:3, 10-point TouchPro touch, 400 nits, anti-glare surface
• Intel performance – Intel Celeron J4125 (4 cores, up to 2.7 GHz), Intel UHD Graphics 600, DDR4-2666 memory expandable to 8 GB, TPM 2.0
• Complete POS connectivity – 3× USB 3.0, 2× USB 2.0, 24 V + 2× 12 V powered USB, 2× RJ45 serial, Gigabit LAN and a 12/24 V cash drawer port
• Elo Edge Connect – 4 micro-USB ports on the display head for snap-on MSR, scanner, fingerprint, RFID and status-light modules
• Dual-screen ready – full-function USB-C (DisplayPort, USB 3.0, up to 27 W) drives an Elo customer-facing touch display over a single cable
• Wireless and audio – dual-band Wi-Fi 5 (802.11ac), Bluetooth 5.0 and two 2 W speakers
• Built for continuous operation – 50,000 h MTBF and a 3-year Elo warranty, extendable to 5 years

Ideal Applications

• Retail checkouts, convenience stores and specialty shops
• Restaurants, cafés and quick-service counters
• Supermarkets and grocery stores
• Hotels, bars and entertainment venues
• Upgrading legacy 4:3 checkout lanes without changing the POS software

Technical Specifications

Choosing the right EloPOS version: pick the screen size first (15" 4:3, 15.6" HD or Full HD, 17" 5:4 or 21.5" Full HD), then the performance level – Celeron for basic POS apps, Core i3 for mainstream retail and hospitality software, Core i5 with vPro for demanding or remotely managed estates – and finally choose between the I/O hub stand for countertop use and the wall-mount I/O hub for VESA installations, with or without Windows. All versions share the same peripherals and accessories. Browse all POS PCs or contact us for volume pricing and project quotes.
