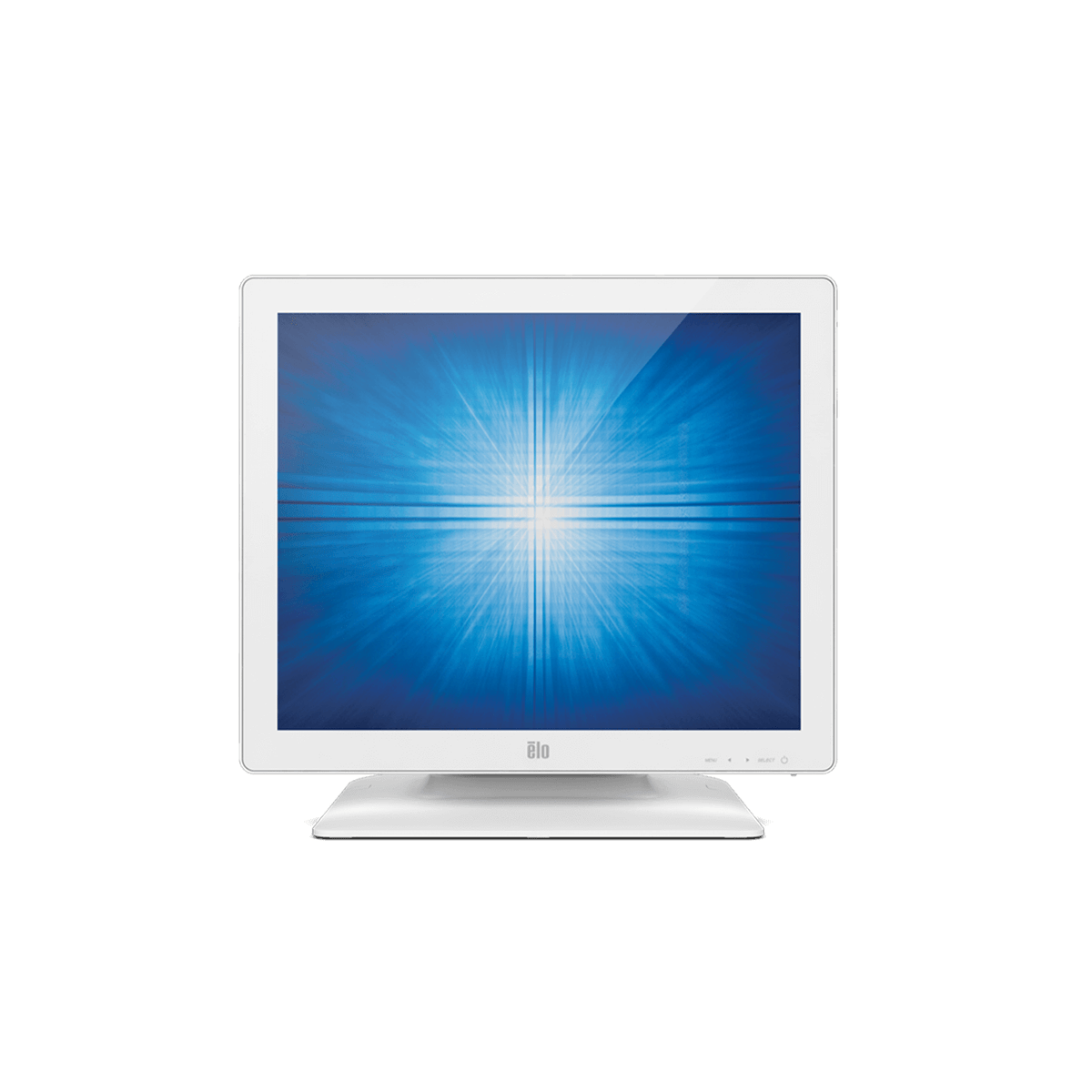

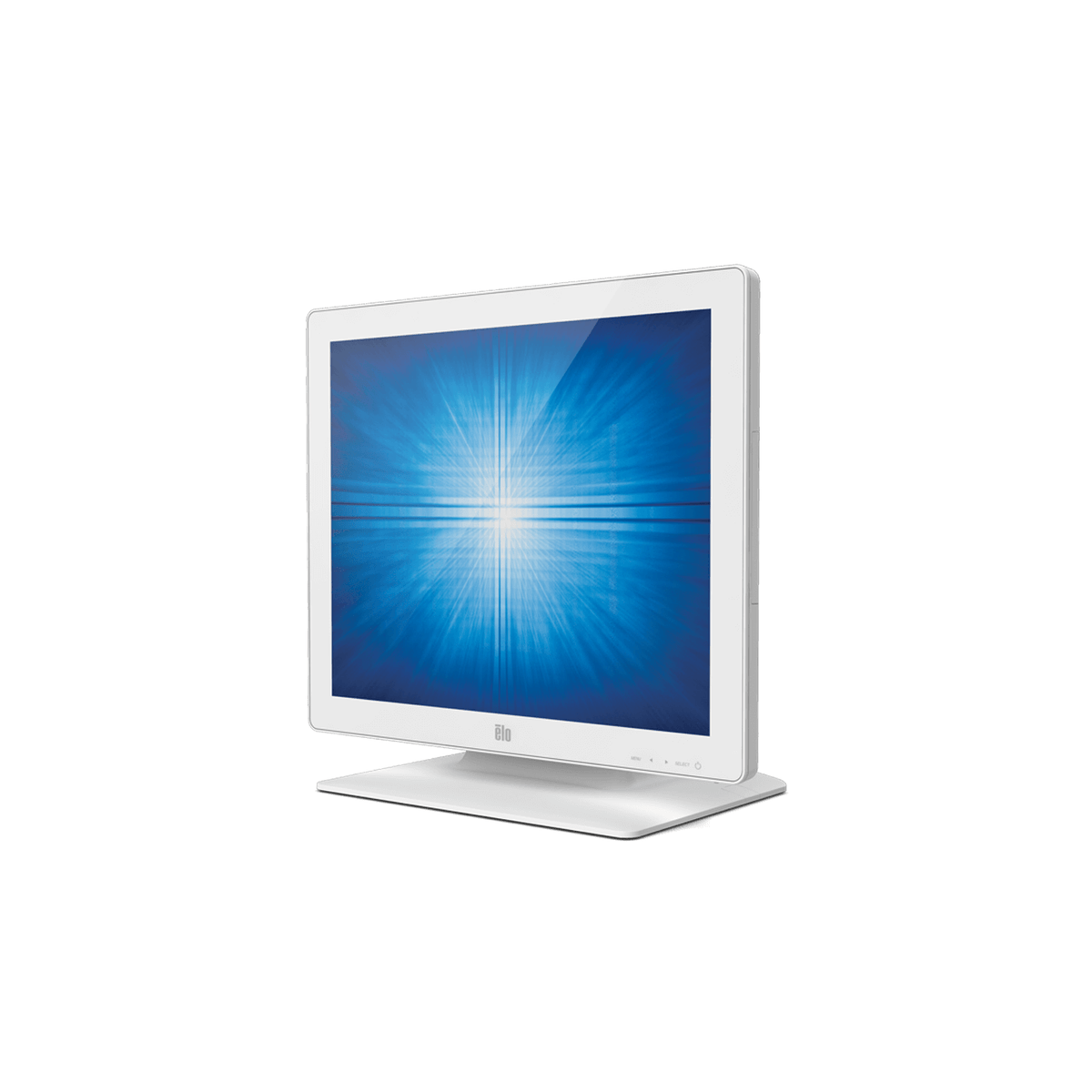

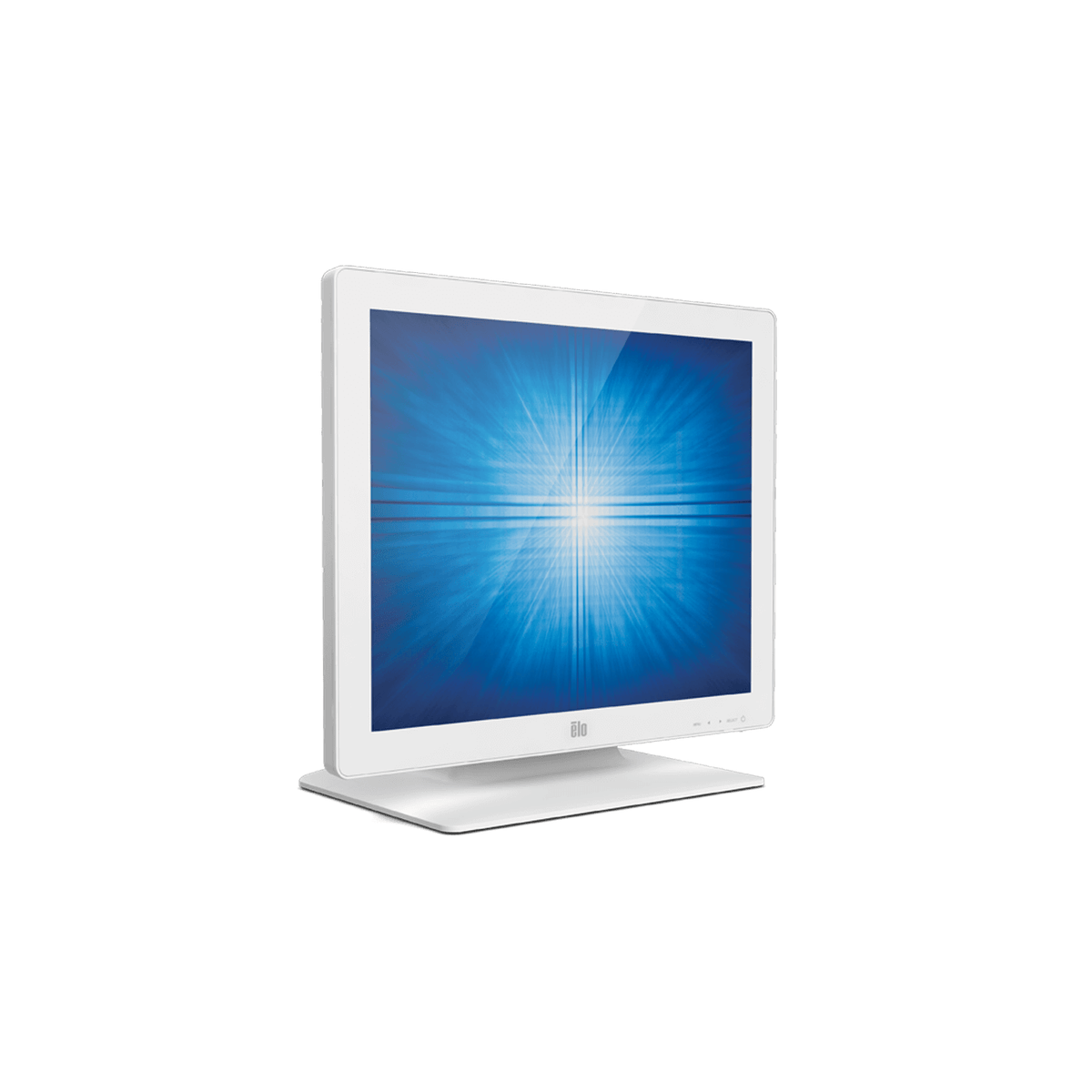

Elo 1723L 17" Touch Monitor, PCAP 10-touch, SXGA, VGA/DVI/HDMI, White (E016808)

The Elo 1723L is a 17" SXGA desktop touchscreen monitor from Elo's 23L line, designed from the ground up for high-traffic retail and hospitality: a sleek zero-bezel, edge-to-edge glass front with 10-touch TouchPro PCAP, spill-resistant sealing and anti-glare finish. VGA, DVI-D and HDMI inputs, two USB peripheral ports, two 2 W speakers and integrated cable management reduce clutter at the counter, while the dual-position (high/low) tilting stand can be removed for 75 mm VESA wall or pole mounting. Side controls with lockout, an optional integrated 3-track MSR and a 3-year warranty make it a durable, good-looking choice for POS, self-service and information points. This version, E016808, is the white model; it ships with the stand, a 50 W power brick with power cable, and VGA, DVI-D, HDMI, touch-USB and audio cables.

Key Features

• TouchPro PCAP, 10 touches – drift-free projected-capacitive multi-touch with excellent clarity and light transmission
• Zero-bezel glass front – edge-to-edge anti-glare glass, sealed to the bezel and LCD against spills
• VGA, DVI-D and HDMI – three video inputs plus two USB peripheral ports and two 2 W speakers
• Dual-position stand – high/low height with tilt, integrated cable management, removable for 75 mm VESA
• MSR option – customise with Elo's integrated 3-track magnetic stripe reader
• 3-year Elo warranty – 50,000-hour demonstrated MTBF; extendable to 4 or 5 years

Ideal Applications

• Retail and hospitality POS counters
• Self-service and loyalty kiosks
• Information points and digital signage
• Hotel reception and front-desk terminals

Technical Specifications

Choose the 15" 4:3 1523L or the 17" 5:4 1723L, then the enclosure colour – black or white; all versions use 10-touch PCAP, anti-glare zero-bezel glass, VGA/DVI-D/HDMI and the dual-position stand. The versions table above lists every configuration of this family that we offer. Browse the whole Monitors category in our store, and contact us for volume pricing, project quotes or help choosing the right stands, mounts and peripherals.
