Elo 1004L 10.1" Touch Monitor, PCAP 10-touch, WXGA, IP54, Black (E968703)

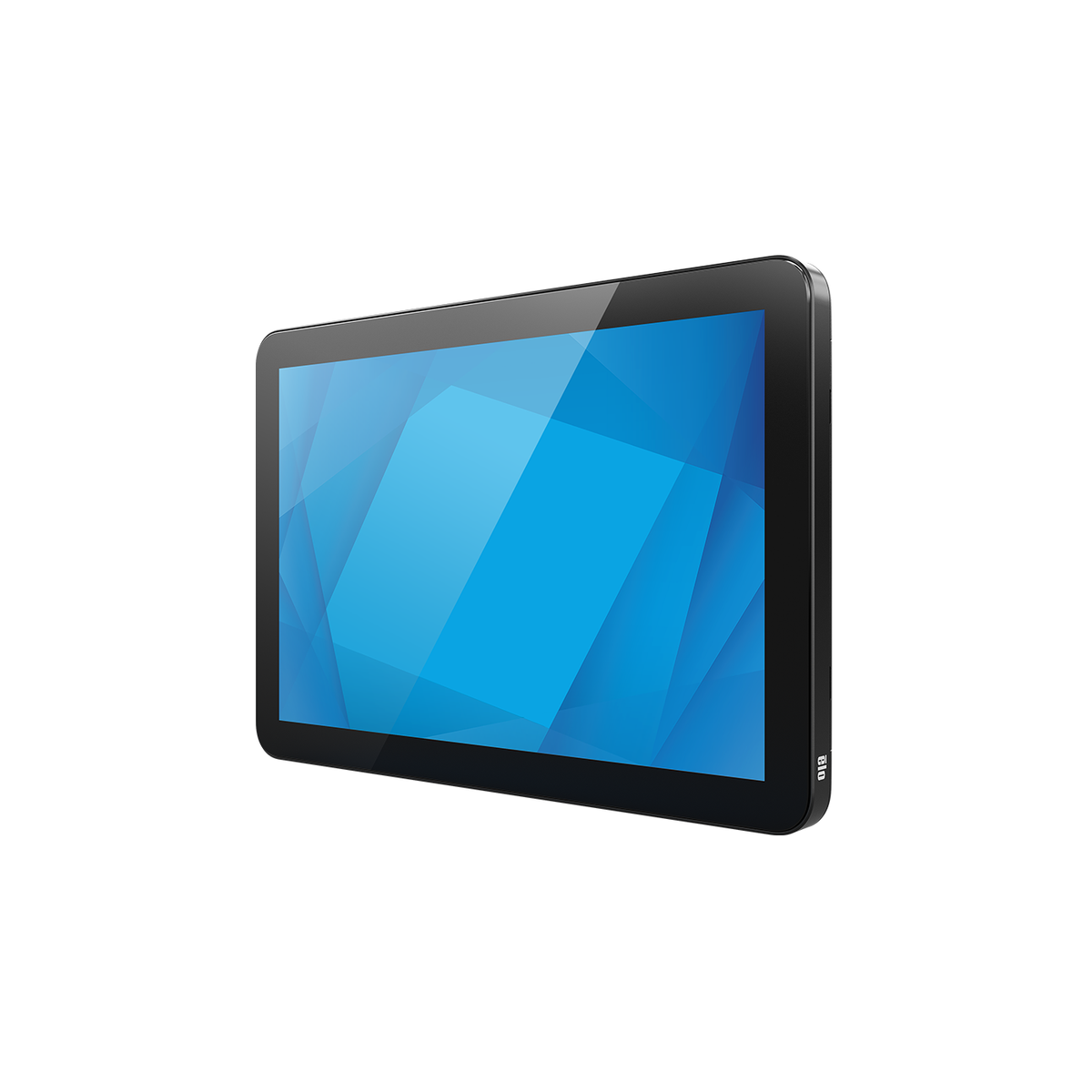

The Elo 1004L is a 10.1" commercial-grade touchscreen monitor from Elo's 04-Series, built around an optically bonded WXGA (1280 × 800) display with edge-to-edge anti-glare glass, IP54 sealing against dust and splashes and IK07 impact protection. One USB-C cable can carry video, touch and power (Power Delivery), with HDMI and Mini DisplayPort as alternatives, and four micro-USB Elo Edge Connect ports let you clip on an MSR, 2D scanner, fingerprint reader, webcam, 3D camera, RFID reader or status light. Two 2 W speakers, a touch-driven on-screen menu, low-blue-light certification and an 18 W USB-C power output for the Elo Pay 7" payment terminal make it a modern choice for POS, self-service, kitchen display, warehouse and HMI applications. This version, E968703, is the black PCAP touch model without a stand, for VESA 75 mounting or one of Elo's optional stands; HDMI and USB-A to USB-C cables and a power brick with EU and US cords are included.

Key Features

• TouchPro PCAP, 10 touches – responsive multi-touch with touch-through support for gloves and protective films, plus a touch-operated OSD
• IP54 & optically bonded – sealed against dust and splashes, with a bonded edge-to-edge anti-glare glass that resists condensation and improves readability
• Single-cable USB-C – video, touch and Power Delivery over one cable, plus HDMI and DisplayPort inputs and a USB-A port
• 4 × Elo Edge Connect – micro-USB ports on all four sides for MSR, 2D scanner, fingerprint reader, webcam, 3D camera, RFID/NFC reader and status light
• Elo Pay 7" ready – 18 W USB-C power output drives Elo's Pay 7" payment terminal for a tidy integrated POS stack
• Eye comfort & efficiency – TÜV Rheinland low-blue-light certification, two 2 W speakers and DDC/CI power monitoring
• 3-year Elo warranty – 50,000-hour demonstrated MTBF; extendable to 4 or 5 years

Ideal Applications

• POS stations and customer-facing displays
• Self-service kiosks, check-in and ordering terminals
• Kitchen display systems in splash-prone environments
• Warehouse automation, access control and HMI
• Integrated payment counters with Elo Pay 7"

Technical Specifications

Choose the 04-Series size (10.1" WXGA, 13.3" or 15.6" Full HD); the 1004L also comes as a non-touch display, while the 13.3" and 15.6" models are offered with or without Elo's desktop stand. The versions table above lists every configuration of this family that we offer. Browse the whole Monitors category in our store, and contact us for volume pricing, project quotes or help choosing the right stands, mounts and peripherals.
