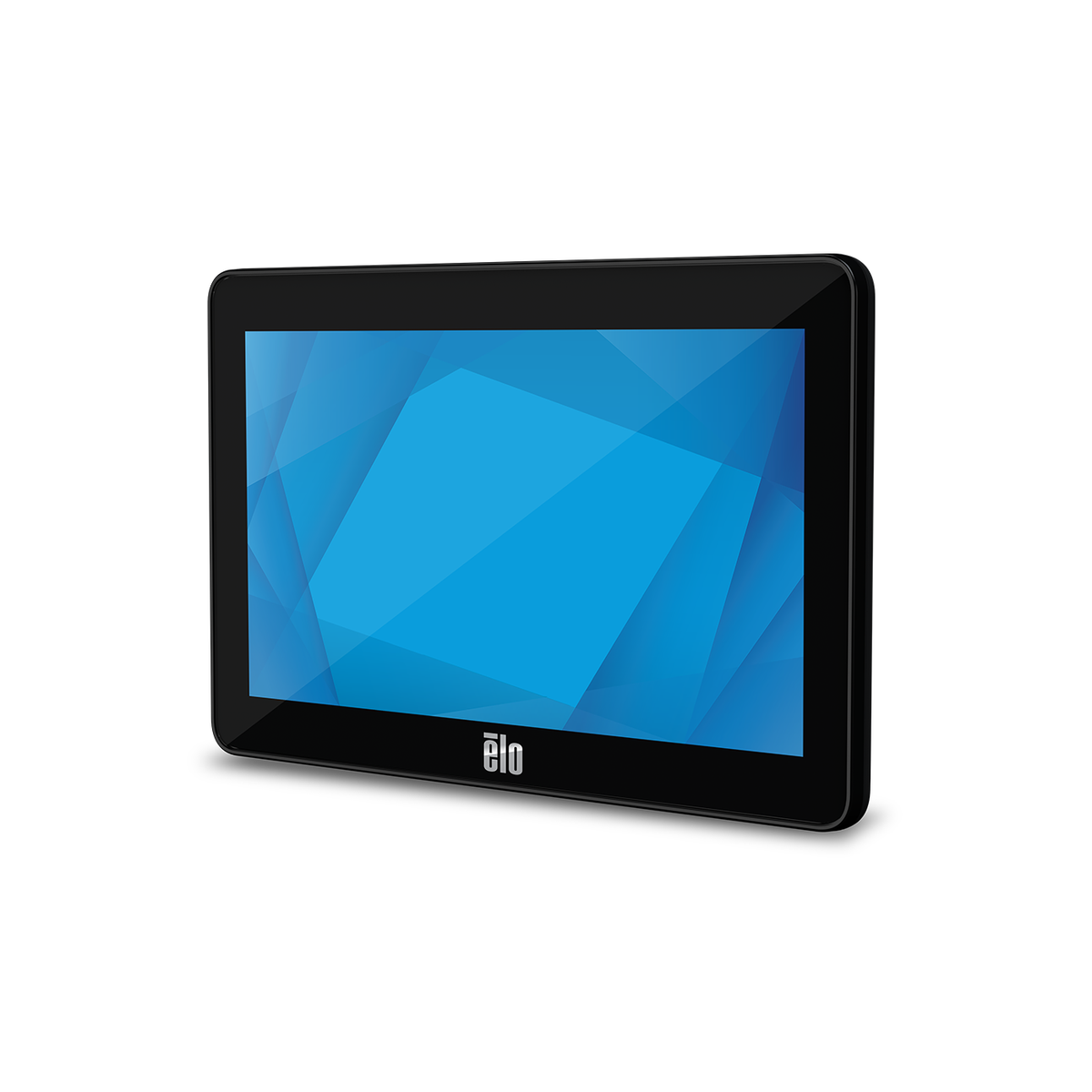

Elo 0702L 7" Touch Monitor, PCAP 10-touch, WVGA, USB-Powered, Black (E796382)

The Elo 0702L is a compact 7" commercial touchscreen monitor that runs on a single USB cable: thanks to DisplayLink technology, power, video and touch all travel over one micro-USB connection, so there is no power brick or separate video cable to install. Its TouchPro PCAP screen supports 10 simultaneous touches behind anti-glare glass, and the IP65-rated front and IK06 impact resistance make it ideal as a customer-facing display, order-confirmation screen, queue or loyalty terminal next to an existing POS. DisplayLink drivers are available for Windows, Android and Linux, and the 75 mm VESA pattern lets you mount it on a pole, shelf or wall. This version, E796382, is the black TouchPro PCAP model; it ships with the micro-USB Y-cable and Quick Install Guide – no stand is included, so plan a VESA 75 mount, shelf mount or tabletop stand if needed.

Key Features

• One cable for everything – DisplayLink USB carries video, touch and 5 V power over a single micro-USB connection – no power brick, no separate video cable
• TouchPro PCAP, 10 touch points – fast, drift-free projected-capacitive touch with gesture support and plug-and-play USB HID on Windows, Android, Linux and macOS
• Bright, rugged 7" screen – 430-nit PCAP brightness, anti-glare glass, IP65-rated front and IK06 impact protection
• Cross-platform – DisplayLink drivers for Windows, Android and Linux let it serve as a second screen on almost any POS host
• Compact and light – just 17.7 mm deep and 0.35 kg with a 75 mm VESA pattern for pole, shelf or wall mounting
• Commercial-grade durability – sealed touchscreen, 50,000-hour demonstrated MTBF and a 3-year Elo warranty, extendable to 4 or 5 years

Ideal Applications

• Customer-facing order and price confirmation displays
• Loyalty sign-up, tipping and feedback terminals
• Queue management and table/room booking panels
• Compact HMI and control panels on machines and carts

Technical Specifications

Choose the 02-Series model by screen size (7" to 27"), then decide between a version with the included desktop stand or a stand-less version for VESA mounting; the 15.6" 1502L is available as Full HD with USB-C or as the lower-cost HD version, and the 21.5" 2202L with clear or anti-glare glass. The versions table above lists every configuration of this family that we offer. Browse the whole Monitors category in our store, and contact us for volume pricing, project quotes or help choosing the right stands, mounts and peripherals.
