RAM Mounts Universal No-Drill Vehicle Laptop Mount with Tough-Tray (RAM-VB-196-SW1)

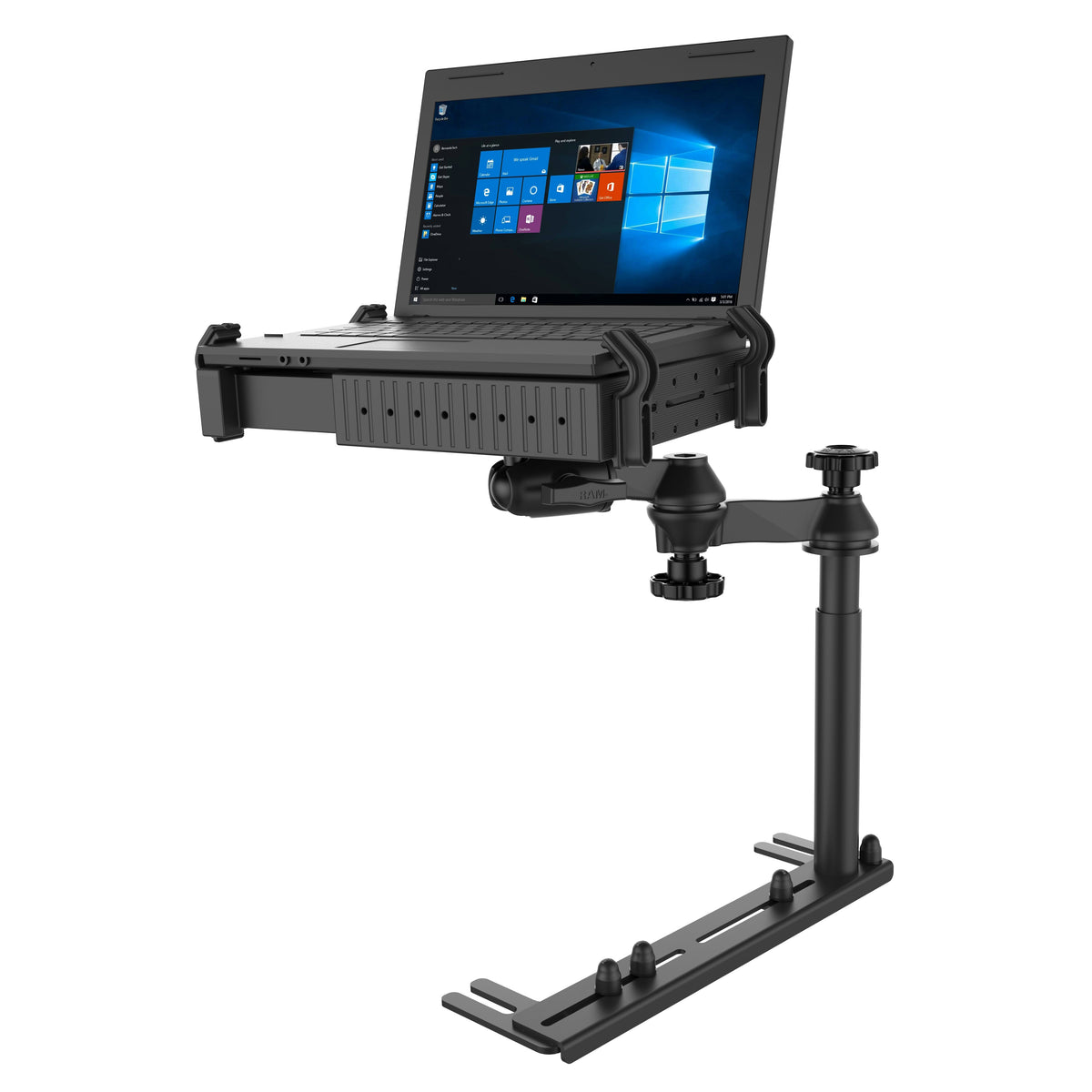

RAM Mounts Universal Laptop Mount (RAM-VB-196-SW1) is a complete no-drill laptop workstation for cars, vans and pickups. The base installs on the passenger seat rails using the existing vehicle hardware, a telescoping pole sets the height, and double swing arms give approx. 305 mm (12") of reach so both the driver and the passenger can use the laptop. Rubber ball-and-socket joints add adjustability and isolate shock and vibration, while the included Tough-Tray holds most laptops with approx. 10–17" screens using four rubber-gripped arms.

Key Features

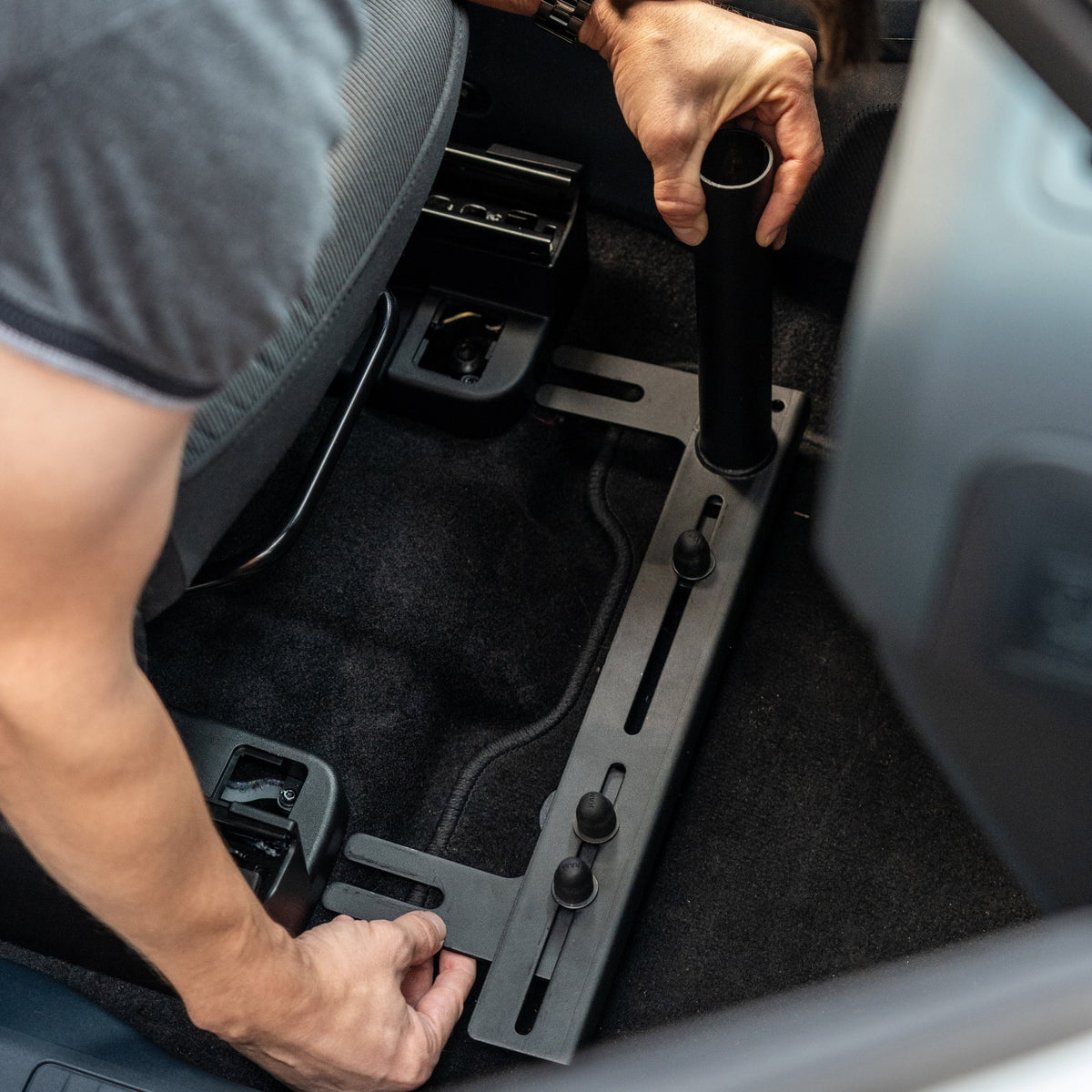

• No drilling – installs on the passenger seat rails with the existing vehicle hardware; seat bolt distance 229–479 mm (9–18.875")
• Height adjustable – telescoping pole, height range 464–610 mm (18.25–24")

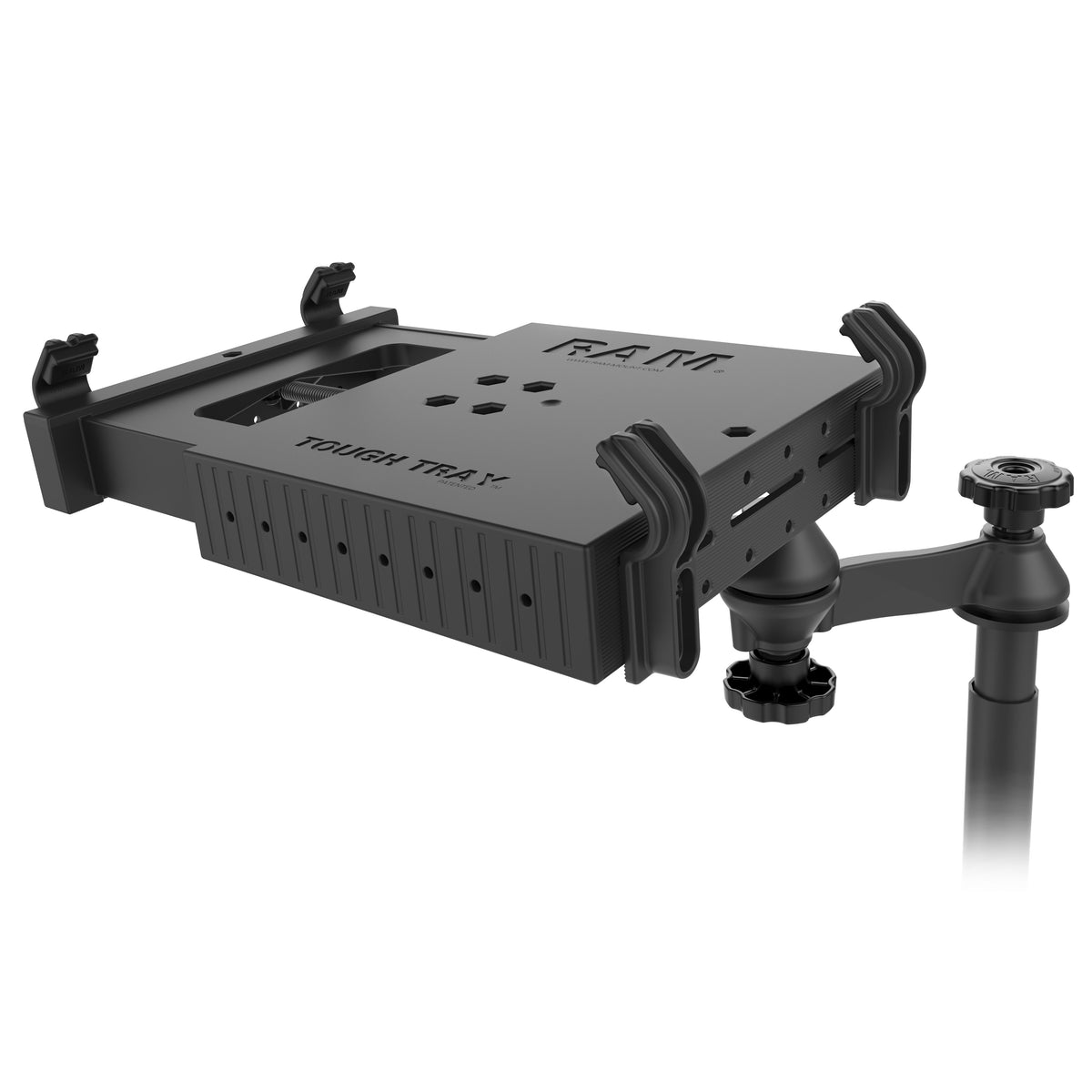

• Reach for driver and passenger – double swing arms with approx. 305 mm (12") reach

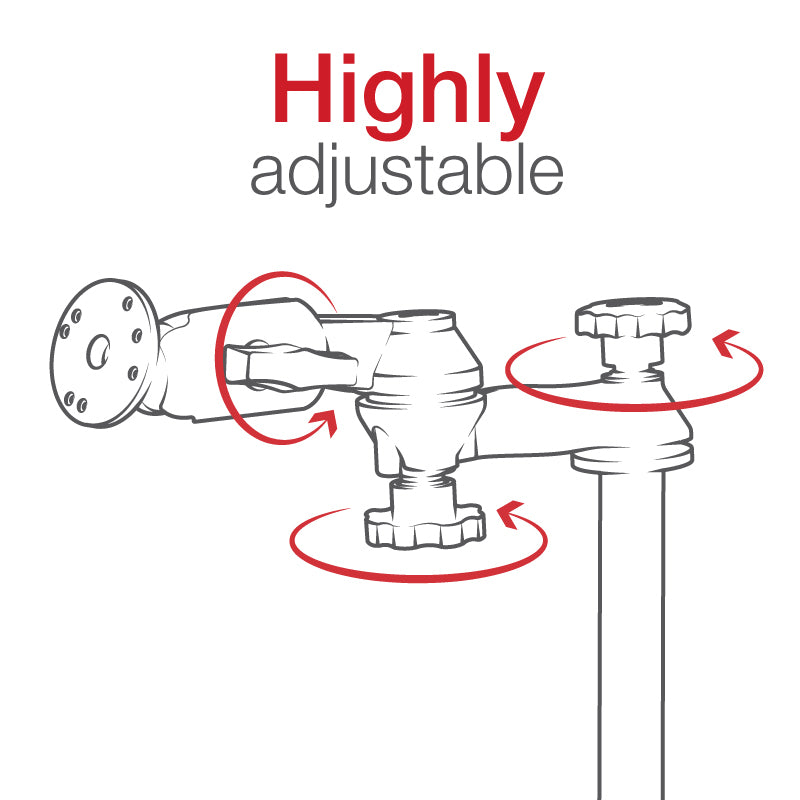

• Shock isolation – rubber C-size (1.5") ball-and-socket joints absorb shock and vibration
• Expandable tray – 2-hole AMPS points around the Tough-Tray for printers, handhelds and scanners
• Heavy-duty – powder-coated steel, marine-grade aluminium and composite; lifetime warranty

Compatibility

• Vehicles tested by RAM: Toyota Prius (2010–2022), RAV4 (2019–2025), Tacoma (2024–2027), Corolla (2010), Matrix (2009)
• Ford Escape (2020–2026), Bronco Sport (2021–2022), Maverick (2022–2027)
• Chevrolet Equinox (2018–2024), Traverse (2018–2024), Colorado (2023–2027), Impala with non-powered seats (2006–2010)
• GMC Terrain (2018–2024), Mazda CX-5 (2017–2024), Subaru Forester (2021), Dodge Grand Caravan (2017–2020), Scion xB (2008–2011), Pontiac Vibe (2009)
• Other vehicles: check the RAM Universal Vehicle Laptop Mount Compatibility Guide
• Recommended for left-hand-drive vehicles (right-hand-drive version: RAM-VB-196-1-SW1); some installations may limit passenger seat adjustment

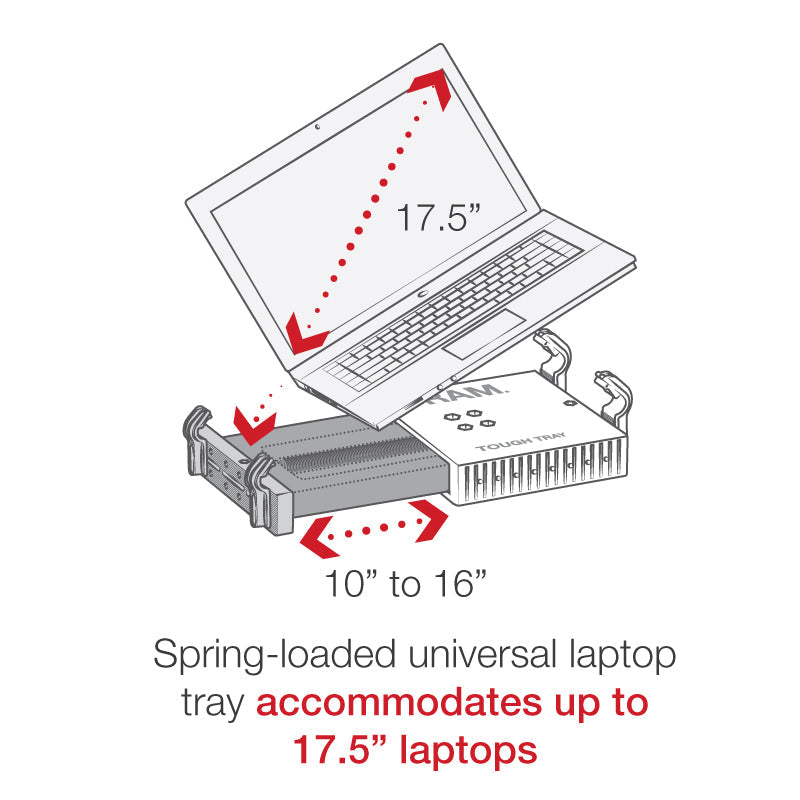

• Laptops with approx. 10–17" screens (tray width range 254–406 mm)

Technical Specifications
