Zebra RFD40 RFID Barcode Scanner (RFD4031-G10B700-E8)

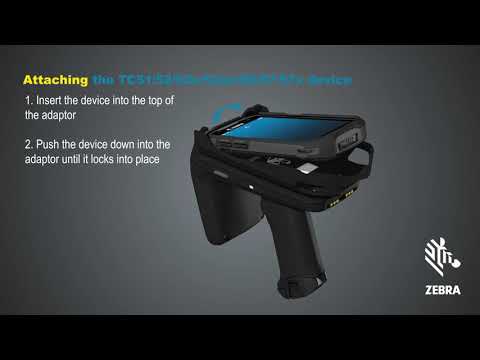

The Zebra RFD40 is a UHF RFID sled that snaps onto a Zebra mobile computer and turns it into a powerful RAIN RFID reader: more than 1,300 tag reads per second, a nominal read range of 6+ metres and an ultra-accurate item-finder mode – ideal for cycle counting, inventory and asset location. It connects through Zebra's eConnex™ interface and has its own quick-release 7000 mAh battery, so it does not drain the mobile computer. This version, RFD4031-G10B700-E8, is the RFD40 Premium Plus (with Bluetooth 5.3, Wi-Fi 6 and an integrated SE4100 1D/2D barcode imager) and works in the European 865–868 MHz UHF band (EU version).

Key Features

• Fast RAIN RFID reading – more than 1,300 tag reads per second (up to 30% faster than the next leading competitor, according to Zebra) and a nominal read range of 6+ metres speed up cycle counts and inventories.
• Ultra-accurate item finder – locate individual tagged items or assets quickly with the dedicated item-finder mode.
• Tri-function trigger – one trigger for RFID reading, barcode scanning and a programmable third function such as the Enter key or push-to-talk.
• Bluetooth 5.3 and Wi-Fi 6 – besides the eConnex connection, the sled pairs wirelessly (NFC tap-to-pair) with Zebra mobile computers without an eConnex connector and with Apple iPhone or Samsung Galaxy devices via Bluetooth adapters; Wi-Fi 6 enables over-the-air device management.
• Integrated SE4100 1D/2D imager – scan barcodes with the sled itself (1280 × 960 pixel sensor, 44.5° × 33.5° field of view, green LED aimer), independent of the mobile computer's scanner.
• Long-lasting power – the quick-release PowerPrecision+ 7000 mAh battery can be changed without removing the mobile computer; an optional battery locking foot keeps it in place.
• Batch mode – no live connection to your back-end system? Store up to 40,000 tags in the sled and sync them to the host later.
• Tool-free, future-proof adapters – swap the device adapter in seconds when you move to a new Zebra mobile computer, without sending devices to IT.
• Flexible charging – each cradle cup charges the sled, the mobile computer or both together; 1-slot USB and multi-slot Ethernet communication cradles let you configure sleds and push firmware updates while they charge.
• Built for daily use – multiple 1.5 m drops to concrete, 500 tumble cycles, IP54 sealing against dust and water, and an operating range of −10 °C to 50 °C.
• Easy integration – Zebra RFID SDKs are based on the existing Zebra RFID handheld SDKs (only a recompile is needed), and 123RFID Desktop lets you configure sleds and update firmware via USB.

Ideal Applications

• Retail – cycle counting, item finding, planogram compliance, returns and click-and-collect (BOPIS)
• Warehouse and back-of-store inventory management, direct store delivery and route accounting
• Healthcare – specimen and patient tracking, hospital asset management and pharmacy management
• Hospitality and events – check-in, ticketing and loyalty cards
• Food safety and traceability, field service and asset tracking

All RFD40 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which version is right for you? Standard is the economical choice for eConnex-enabled Zebra mobile computers; Premium adds Bluetooth and Wi-Fi for devices without eConnex and for remote management; Premium Plus also scans barcodes with its own SE4100 imager. In Europe, choose an -E8 version (865–868 MHz). Remember to add the adapter for your mobile computer and a charging solution. Looking for an all-in-one device instead? See our RFID Handheld Terminals, compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
