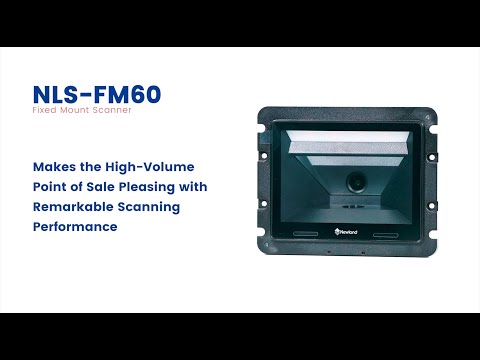

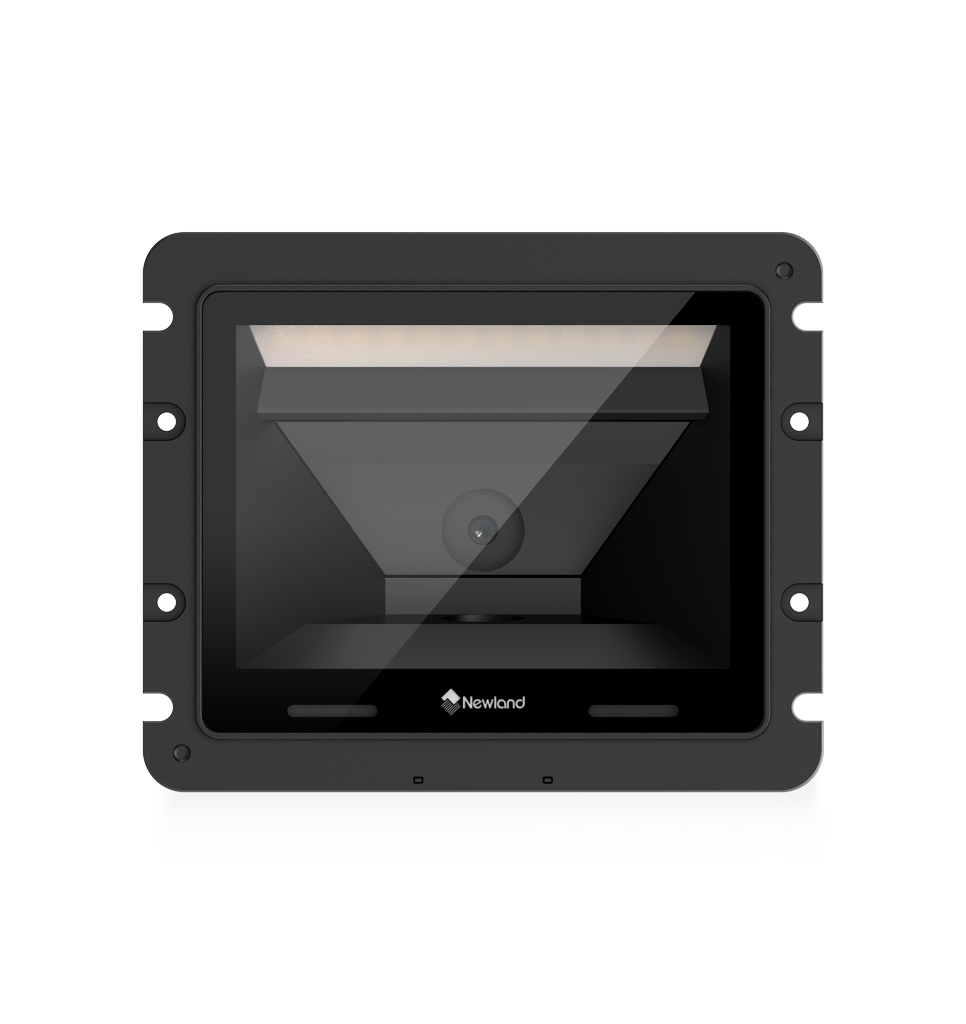

Newland FM60 Cubera AI Counter Scanner (NLS-FM6080V2-U12)

The Newland FM60 Cubera AI is a fixed-mount 2D scanner with a medium-size scan window for building into self-service kiosks, checkout counters, ticket machines and access gates. Newland's UIMG® imaging and AI-powered barcode detection (AIBD), running on a multi-core processing platform, decode 1D and 2D barcodes quickly and reliably – including wrinkled, distorted, reflective and curved codes – while the wide viewing angle and high motion tolerance (over 2 m/s) capture items as soon as they approach the window. Built-in OCR also reads text from passports and ID documents, and Digimarc digital watermarks are supported. IP52 sealing and a 5-year (60-month) Newland warranty. This version, NLS-FM6080V2-U12, is the USB kit: it is supplied with a 1.2 m USB cable – ready to plug in and scan, powered via USB, no power supply needed.

Key Features

• AI-powered decoding – Newland's UIMG® technology with AI-powered barcode detection (AIBD) reads 1D and 2D barcodes, postal codes and Digimarc digital watermarks, and delivers excellent results on wrinkled, reflective, curved and damaged codes.
• OCR built in – advanced OCR extracts text from passports and ID documents with high accuracy – ideal for hotel check-in, age verification and identity checks at self-service terminals.
• Multi-core processing platform – powerful computing for faster and more stable decoding, even with data-rich codes on smartphone screens.
• Wide viewing angle, high motion tolerance – a 65.6° × 44.6° field of view and a motion tolerance of over 2 m/s capture items as soon as they come close to the window, which keeps checkouts and queues moving.
• Six status indicators – a multi-colour LED shows initialisation and configuration, good reads, configuration results, transmission alarms and faults, making troubleshooting in unattended kiosks easy.
• Easy integration – USB (HID keyboard, USB CDC virtual COM, HID-POS, IBM SurePOS) or RS-232 with automatic interface detection; 5–12 VDC input, EasySet configuration tool, IP52 sealing and a 5-year Newland warranty.

Ideal Applications

• Retail self-checkouts and POS counters – built in for fast scanning of goods, coupons and loyalty codes
• Self-service kiosks and ticket machines – mobile tickets, e-vouchers and payment QR codes
• Hotel check-in and identity checks – passport and ID document OCR at self-service terminals
• Access control and turnstiles – tickets and QR access codes
• Parcel lockers and pick-up points – pick-up codes and shipping labels
• Parking terminals and pay stations – parking tickets and payment QR codes

Technical Specifications

Looking for a larger scan window, an even smaller module or a megapixel sensor? Compare other built-in scanners in our In-Counter Barcode Scanners collection or contact our team for volume pricing and integration advice (RS-232, OCR, kiosk integration).
