| Katalogové číslo | XD5-40IIdOEWK/BEG |

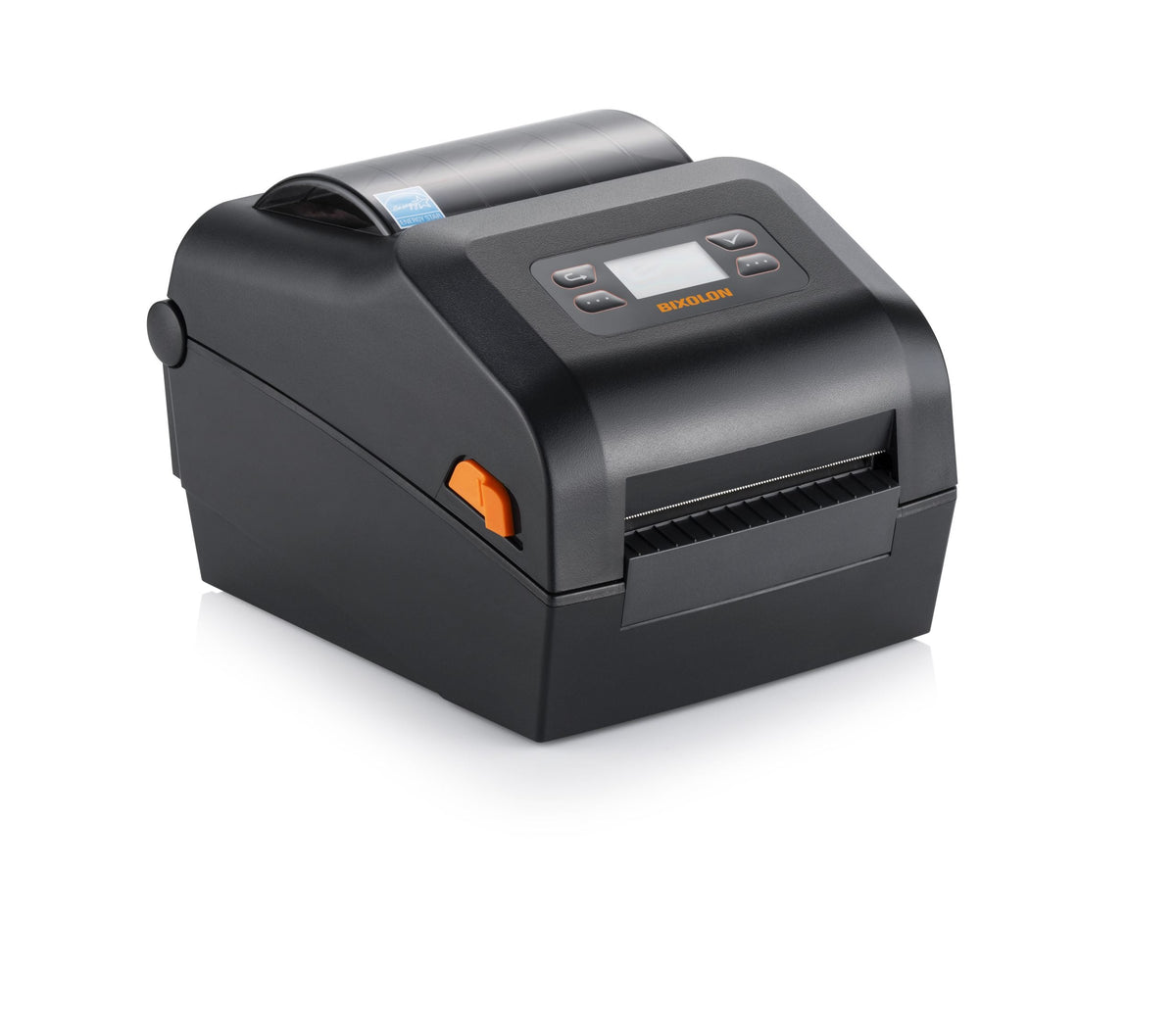

| Model | BIXOLON XD5-40IId (XD5-40II Series) |
| Typ tiskárny | 4-inch desktop direct thermal label printer |
| Způsob tisku | Direct thermal |
| Rozlišení | 203 dpi (8 dots/mm) |
| Rychlost tisku | Up to 203 mm/s (8 ips) |
| Max. šířka tisku | 108 mm (4.25") |
| Max. délka tisku | 1,000 mm (39.4") |
| Šířka média | 15–118 mm (0.59"–4.65"), incl. liner |
| Tloušťka média | 0.06–0.20 mm |
| Průměr role | Up to 127 mm (5") OD |
| Průměr dutinky | 25.4–38.1 mm (1"–1.5") |
| Typy médií | Gap (die-cut), black mark, notch, continuous, fanfold |
| Senzory | Transmissive gap sensor (fixed), reflective black-mark sensor (adjustable), head-open sensor |
| Rozhraní | USB (Type B), USB host, RS-232 serial, Ethernet 10/100 Mbps |
| Bezdrátové připojení | Dual-band WLAN 802.11a/b/g/n (2.4/5 GHz), Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP; WEP40/104, WPA1/2 (PSK, EAP) |
| Paměť | 512 MB SDRAM, 512 MB Flash |
| Hodiny reálného času | Optional |
| Jazyky tiskárny | SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible), BPL-D™ (DPL compatible) |
| Písma / znakové sady | Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E, 9 BPL-D), scalable fonts (1 SLCS, 1 BPL-Z, 1 BPL-D), 23 code pages, Unicode (UTF-8, UTF-16LE/BE); downloadable TTF/TTE/FNT fonts, graphics, formats and logos |
| Čárové kódy | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, IMB, ISBT-128; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39 |
| Displej | FSTN LCD, 200 × 100 pixels, with menu buttons |
| Manipulace s médiem | Tear-off (standard); field-installable peeler and auto cutter (optional) |
| Volitelné příslušenství | Peeler, auto cutter, external paper supply, serial cable |
| Ovladače a software | Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM USB/Ethernet, OPOS/JPOS, SAP device driver, network auto installer; Label Artist™-II, Label Artist™ Web / Mobile, mPrint app, BarTender® UltraLite for BIXOLON; XPM™/XCM™ management (optional); Android/iOS/Windows/Linux, Xamarin, Web Print, MAUI, Flutter, React Native SDKs |
| Napájení | External AC/DC power adapter, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified |
| Rozměry (Š × H × V) | 194 × 248 × 169 mm |
| Hmotnost | 2.01 kg |
| Barva | Black |
| Provozní teplota | 0–41 °C |
| Skladovací teplota | −40–60 °C |
| Vlhkost | Operating 10–80% RH, storage 5–95% RH (non-condensing) |
| Záruka | 36 months |
| Obsah balení | BIXOLON XD5-40IId printer (203 dpi, USB, USB host, RS-232, Ethernet 10/100 + dual-band Wi-Fi, LCD), external AC/DC power adapter (100–240 V AC), power cord (EU plug), USB cable, quick start guide; drivers and Label Artist-II / BarTender UltraLite software as free download |
